Nukeproof Mega 297 Carbon Frame 2023
2023 Mountain
Estimate price |
2,999$
Weight | 3.82 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

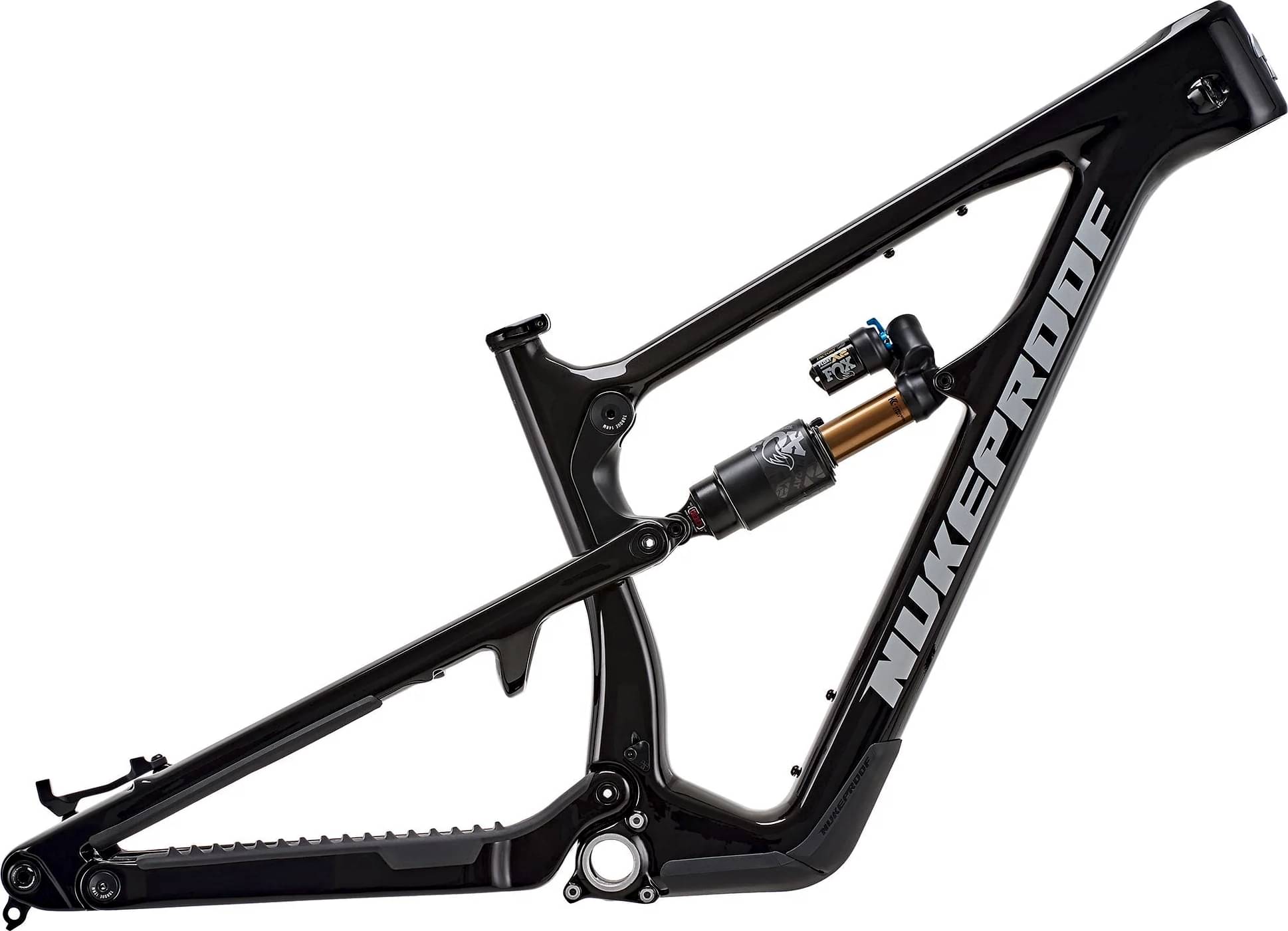

Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS.
Rear Shock
Fox Float X2, Factory Series, or, Push Eleven Six, or, Fast Fenix Evo, or, EXT Storia V3
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
Nukeproof, 44-56 IITS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.37 mm | 1.35 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 618.16 mm | 618.16 mm | 636.22 mm |
| Reach | 427 mm | 452 mm | 472 mm |
| Top Tube Length | 564.71 mm | 589.71 mm | 607.87 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1189 mm | 1214 mm | 1243 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 718 mm | 717 mm | 718 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Mega 297 Carbon Frame is part of the Nukeproof Mega model. There are 92 frames that carry this model name. You can easily view all of the Nukeproof Mega frames models from 2023, here.
Model range prices
Nukeproof Mega 290 Alloy Frame 2023 is the most affordable frame of this model and has a price of 2199$. On the other hand, Nukeproof Mega 290 Carbon Frame 2023, is the most expensive and costs 2999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro frames
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2999$. In conclusion, this frame price is 58.26% higher than the price of the average Enduro frame.
Enduro frames average weight
Enduro frames have an average weight of 3.44 kg (7.58 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 3.82 kg (8.42 lbs), the Mega 297 Carbon Frame model is considerably heavier than average. In short, the average Enduro frame weight is 11.05% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Mega 297 Carbon Frame components
Rear Shock
The shock that’s installed on this frame is Fox Float X2, with a travel distance of 165mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
