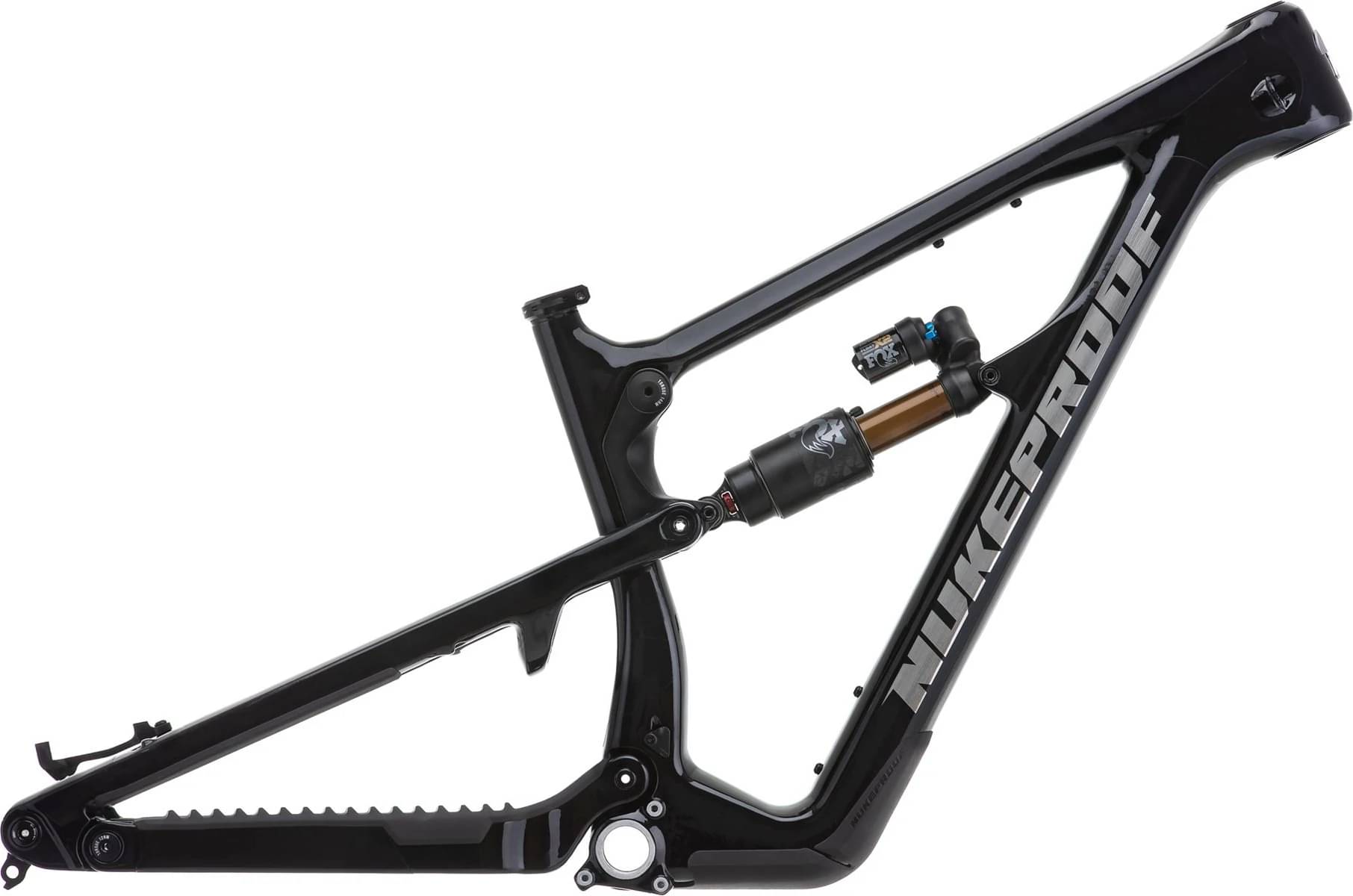

Nukeproof Mega 297 Carbon Frame Only 2022
2022 Mountain
Estimate price |
3,344$
Weight | 3.82 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS.
Rear Shock
Fox Float X2, Factory Series, Kashima, EVOL, 2 Position lever, Custom LCM LRM tune, 230x62.5mm, Bearing End, 2x 0.3 spacer fitted.
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
Nukeproof, 44-56 IITS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.37 mm | 1.35 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 618.16 mm | 618.16 mm | 636.22 mm |
| Reach | 427 mm | 452 mm | 472 mm |
| Top Tube Length | 564.71 mm | 589.71 mm | 607.87 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1189 mm | 1214 mm | 1243 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 718 mm | 717 mm | 718 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Mega 297 Carbon Frame Only belongs to the Nukeproof Mega model. Nukeproof launched 92 frames of this model so far. You can easily view all of the Nukeproof Mega frames models from 2022, here.
Model range prices
The most economical model, the Nukeproof Mega 297 Alloy Frame Only 2022 has a starting price of 2188$. Nukeproof Mega 297 Carbon Frame (Push) 2022 on the other hand is the most expensive at 3499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro frames average price
If you want an acceptable Enduro frame you should know that the average price is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When Nukeproof released this model in 2022, its price was 3040$. Comparing this to the average Enduro frame price, we see that the price is 60.42% more expensive.
Enduro frames average weight
The average weight for Enduro frames is 3.43 kg (7.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Mega 297 Carbon Frame Only weighs 3.82 kg (8.42 lbs) and is considerably heavier than the average. In other words, this model is 11.37% heavier than the average Enduro frame.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Mega 297 Carbon Frame Only components
Rear Shock
From the factory, it comes with the Fox Float X2 rear shock model, which has a travel of 165mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
This frame is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
