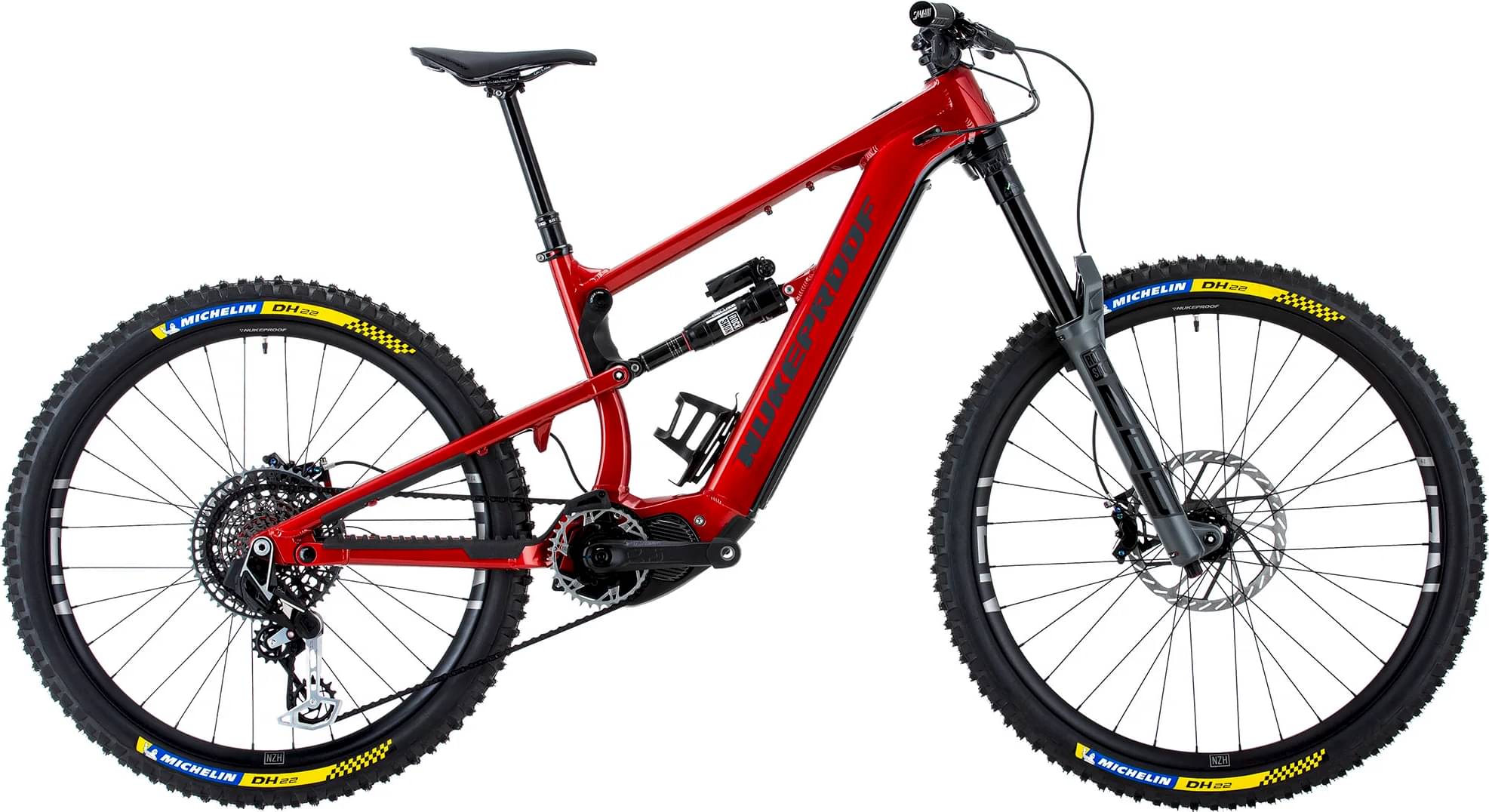

Nukeproof Megawatt 297 RS 2023
2023 E-bike
Estimate price |
9,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EN806A, 630Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Megawatt 297 Alloy, 170mm Travel, custom triple butted hydro-formed tube set, internal Battery, Internal cable routing through downtube, Enduro Bearings, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection, Shimano STEPS compatible.
Suspension Fork
RockShox Zeb Ultimate Charger 3 RC2, 170mm, 44mm Offset, BOOST, Debonair, Grey
Rear Shock
RockShox Super Deluxe Ultimate RCT, Custom, S/M - 0L2 LNL1 32SB C1, L/XL/XXL - 0L2 LNL 32SB C1 tune, 230x62.5mm, Bearing End, 2 bottomless tokens fitted
Drivetrain
Rear Derailleur
SRAM XX AXS, Eagle 12-Speed, Black
Shift Levers
SRAM AXS POD Ultimate, 12-Speed Eagle, T-Type
Cassette
SRAM XO Eagle 12-Speed, CS XG1295 EAGLE 10-52T
Crank
e*thirteen EP8, 165mm, 34T SRAM XX T-Type Chainring, Boost
Bottom Bracket
STEPS, press-fit
Chain
SRAM X0 T-Type, 12-Speed Eagle, Flattop, PowerLock
Chain Guide
Shimano EM800 drive unit mount
Wheels
Rims
Front Wheel: Nukeproof Horizon V2, 29", 6 Bolt, 110x15mm // Rear Wheel Nukeproof Horizon V2, 27.5"", 6 Bolt, XD Driver, 148x12mm
Tires
Front: Micheline DH22 TLR 29”x2.4, Rear: Micheline DH22 TLR 27.5”x2.4
Brakes
Brakes
SRAM Code RSC, Sintered pads
Cockpit
Stem
Nukeproof Horizon, 45mm, Black
Handlebar
Nukeproof Nukeproof Horizon Carbon V2, S/M: 12mm Rise Width - 780mm, L/XL/XXL: 25mm Rise Width - 800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof Neutron E-Bike Block Set, sealed bearings, ZS56/28.6 – ZS66/46
Seat
Saddle
Nukeproof, Black
Seatpost
Bikeyoke Revive with Triggy 1x Remote, 31.6mm; S:125mm drop; M:160mm drop; L:185mm drop; XL/XXL:213mm drop
Motor & Battery
Motor
Shimano STEPS EP801, 250W, 85Nm
Battery
Shimano EN806A, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 779.61 mm | 799.61 mm | 821.8 mm | 846.18 mm | 870.57 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm |
| Stack | 637.74 mm | 637.74 mm | 642.24 mm | 651.23 mm | 660.21 mm |
| Reach | 432 mm | 452 mm | 472 mm | 492 mm | 512 mm |
| Top Tube Length | 574.05 mm | 594.05 mm | 609.15 mm | 631.06 mm | 660.21 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1218 mm | 1238 mm | 1260 mm | 1285 mm | 1309 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 731 mm | 728 mm | 727 mm | 729 mm | 729 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Megawatt 297 RS is a Nukeproof E Megawatt model. 8 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Nukeproof Megawatt 297 Comp 2023 is the cheapest e-bike model and costs 6099$. Nukeproof Megawatt 297 RS 2023 is the most expensive one and costs 9299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 9299$. If we compare this with the average Enduro e-bike cost we notice that the price is 94.34% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Megawatt 297 RS comes factory-installed with the RockShox ZEB Ultimate fork. This has a travel range of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the RockShox Super Deluxe Ultimate RCT model, with a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Megawatt 297 RS 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Nukeproof Megawatt 297 RS is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
