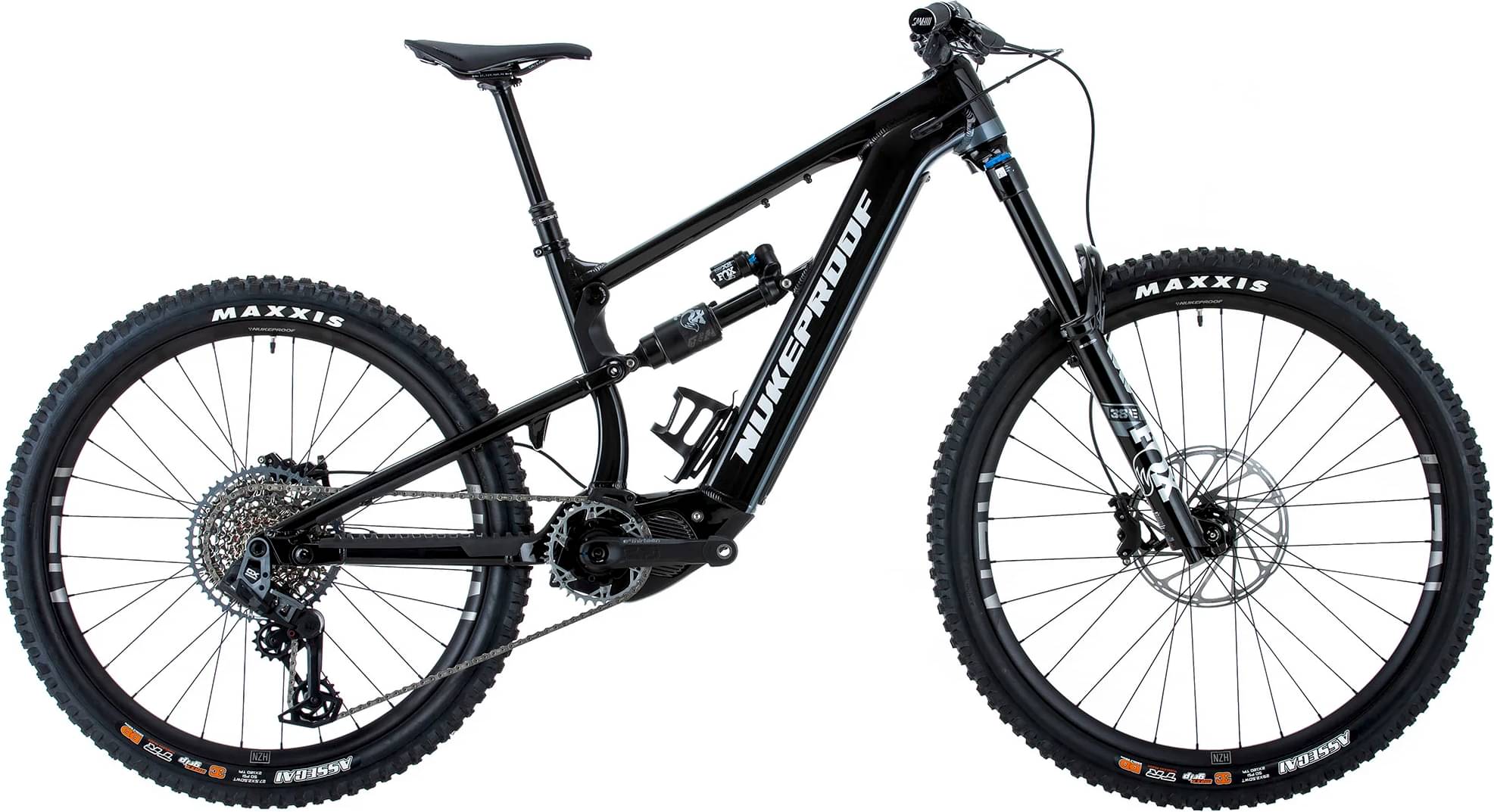

Nukeproof Megawatt Alloy 297 Elite 2023
2023 E-bike
Estimate price |
9,347$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EN806A, 630Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Megawatt 297 Alloy, 170mm Travel, custom triple butted hydro-formed tube set, internal Battery, Internal cable routing through downtube, Enduro Bearings, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection, Shimano STEPS compatible.
Suspension Fork
Fox 38 Float, 29”, Performance Elite Series, Grip 2 Damper, 170mm, 44mm Offset, BOOST, 1.5T Steerer, Black
Rear Shock
Fox Float X2, Performance Series, EVOL, 2 Position lever, Custom 0.3 Spacer x2, CL, RM, Rezi CM tune, 230x62.5mm, Bearing End
Drivetrain
Rear Derailleur
SRAM GX AXS T-Type, 12-Speed Eagle
Shift Levers
SRAM AXS POD Ultimate, 12-Speed Eagle, T-Type
Cassette
SRAM GX CS1275 T-Type, 12-Speed, 10-52T
Crank
e*thirteen EP8, 165mm, 34T SRAM XX T-Type Chainring, Boost
Bottom Bracket
STEPS, press-fit
Chain
SRAM GX T-Type, 12-Speed Eagle, Flattop, PowerLock
Chain Guide
Shimano EM800 drive unit mount
Wheels
Rims
Front Wheel: Nukeproof Horizon V2, 29"", 6 Bolt, 110x15mm // Rear Wheel: Nukeproof Horizon V2, 27.5"", 6 Bolt, XD Driver, 148x12mm
Tires
Front: Maxxis Assegai 29”x2.5 WT 3C MaxxGrip/DD/TR, Rear: Maxxis Assegai 27.5”x2.5 WT 3C MaxxGrip/DD/TR
Brakes
Brakes
SRAM DB8 4-POT
Cockpit
Stem
Nukeproof Horizon, 45mm, Black
Handlebar
Nukeproof Horizon V2, Width - S/M: 12mm Rise Width - 780mm, L/XL/XXL: 25mm Rise Width - 800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof Neutron E-Bike Block Set, sealed bearings, ZS56/28.6 – ZS66/40
Seat
Saddle
Nukeproof, Black
Seatpost
Brand X Ascend internal with Brand-X Remote lever, S:125mm drop; M:150mm drop; L:170mm drop; XL/XXL:200mm drop
Motor & Battery
Motor
Shimano STEPS EP801, 250W, 85Nm
Battery
Shimano EN806A, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 779.61 mm | 799.61 mm | 821.8 mm | 846.18 mm | 870.57 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm |
| Stack | 637.74 mm | 637.74 mm | 642.24 mm | 651.23 mm | 660.21 mm |
| Reach | 432 mm | 452 mm | 472 mm | 492 mm | 512 mm |
| Top Tube Length | 574.05 mm | 594.05 mm | 609.15 mm | 631.06 mm | 660.21 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1218 mm | 1238 mm | 1260 mm | 1285 mm | 1309 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 731 mm | 728 mm | 727 mm | 729 mm | 729 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Megawatt Alloy 297 Elite is a Nukeproof E Megawatt model. 16 e-bikes variations carry this model name so far. Take a sneak peek at all Nukeproof E Megawatt e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Nukeproof Megawatt 297 Comp 2023 has a starting price of 6099$. Nukeproof Megawatt Alloy 297 RS 2023 on the other hand is the most expensive at 9742$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 8402$. If we compare this with the average Enduro e-bike cost we notice that the price is 75.59% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Megawatt Alloy 297 Elite components
Fork
Nukeproof Megawatt Alloy 297 Elite 2023 e-bike is equipped with the Fox Performance Elite Float 38 fork, and has 170mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Nukeproof Megawatt Alloy 297 Elite e-bike has the Fox Float X2 model installed, and has a travel of 170mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Megawatt Alloy 297 Elite model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Nukeproof Megawatt Alloy 297 Elite is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Megawatt Alloy 297 Elite. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
