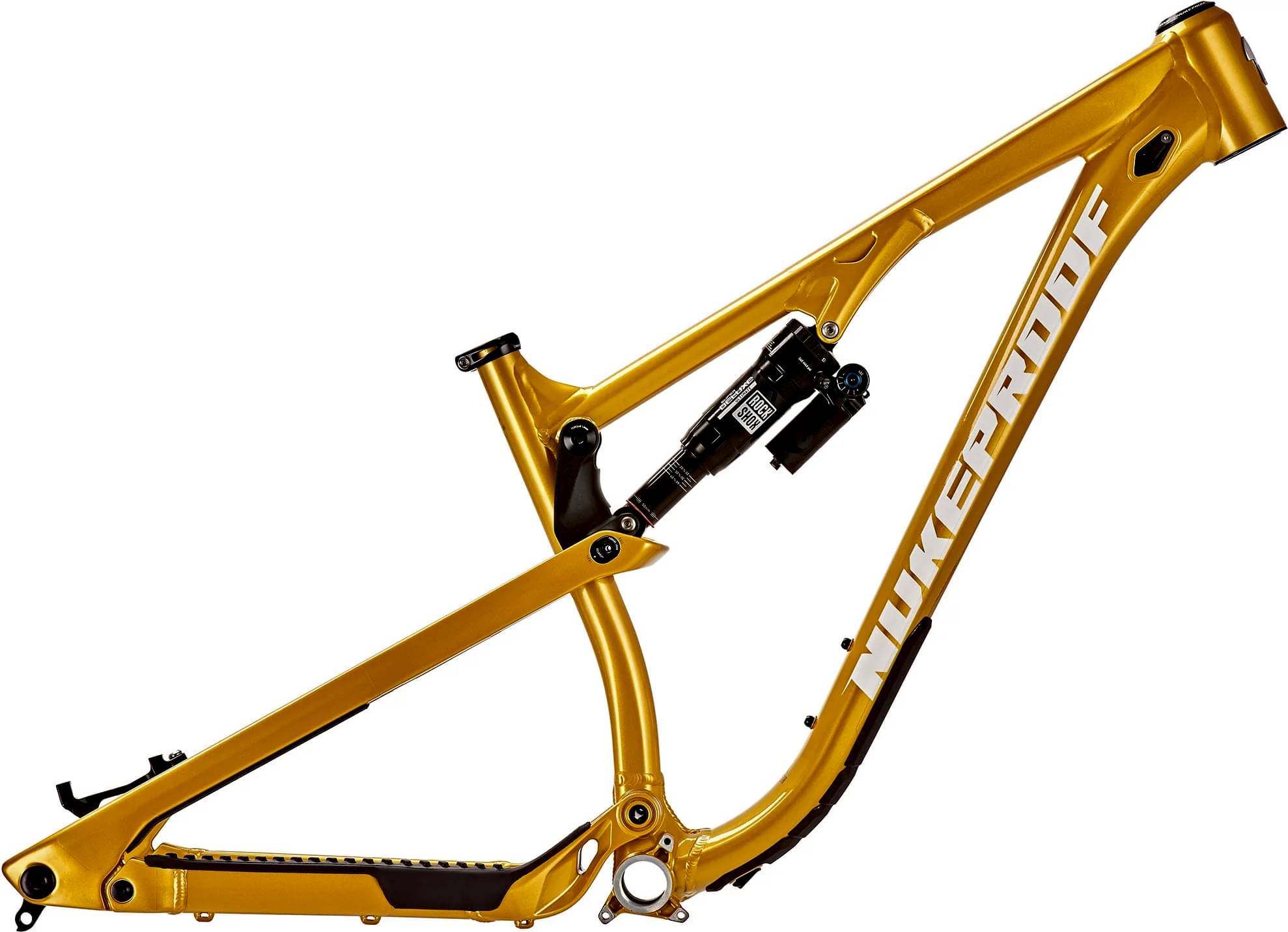

Nukeproof Reactor 290 Alloy Frame 2023
2023 Mountain
Estimate price |
2,573$
Weight | 3.77 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 130mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Reactor 290 Alloy, 130mm Travel, custom triple butted hydro-formed tube set for front triangle and chain stays, UD woven carbon fibre Seat stays, internal cable routing, internal cable routing, ISCG 05 mount, Enduro bearings, threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured rubber frame protection
Rear Shock
RockShox Super Deluxe Ultimate RCT, Custom, M - 0L1 LNL1 32SB C C1, L/XL - 0L1 LNL 32SB C C1 tune, 210x50mm, Bearing End, 1x bottomless token fitted.
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
Nukeproof, 44-56 IITS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Reactor 290 140mm Fork (Alloy) | Reactor 290 150mm Fork (Alloy) | Reactor 290 140mm Fork (Alloy) | Reactor 290 150mm Fork (Alloy) | Reactor 290 140mm Fork (Alloy) | Reactor 290 150mm Fork (Alloy) |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.38 mm | 1.29 mm | 1.31 mm | 1.21 mm | 1.23 mm |
| Bottom Bracket Height | 336 mm | 339 mm | 336 mm | 339 mm | 336 mm | 339 mm |
| Front Center | 762.5 mm | 766.5 mm | 792 mm | 796 mm | 830 mm | 834 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 111 mm | 115 mm | 112 mm | 117 mm | 112 mm | 117 mm |
| Stack | 618 mm | 621.4 mm | 623 mm | 626.5 mm | 628 mm | 631.7 mm |
| Reach | 454 mm | 449.3 mm | 483 mm | 478.4 mm | 517 mm | 512.5 mm |
| Top Tube Length | 613 mm | 614.4 mm | 643 mm | 644.2 mm | 678 mm | 679.3 mm |
| Seat Tube Angle | 75.5 ° | 75.1 ° | 75.5 ° | 75.1 ° | 75.5 ° | 75.1 ° |
| Seat Tube Length | 420 mm | 420 mm | 458 mm | 458 mm | 508 mm | 508 mm |
| Head Tube Angle | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 110 mm | 115 mm | 115 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1208 mm | 1212 mm | 1238 mm | 1242 mm | 1274 mm | 1278 mm |
| Bottom Bracket Drop | 33 mm | 30 mm | 33 mm | 30 mm | 33 mm | 30 mm |
| Standover Height | 739 mm | 742 mm | 747 mm | 750 mm | 772 mm | 775 mm |
| Front Travel | 150 mm | 160 mm | 150 mm | 160 mm | 150 mm | 160 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Reactor 290 Alloy Frame completes the Nukeproof Reactor model. 61 frames variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Nukeproof Reactor 275 Alloy Frame 2023 is the most economical model, with a starting price of 2310$. Nukeproof Reactor 290 Carbon Frame 2023 on the other hand costs 3040$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail frames
If you want an acceptable Trail frame you should know that the average price is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2310$. Comparing the average cost of a Trail frame to this one, you will see that Reactor 290 Alloy Frame price is 33.06% higher.
Trail frames average weight
If we make a quick analysis of the average weight of a Trail frame, we get 2.88 kg (6.35 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 3.77 kg (8.31 lbs), Nukeproof frame is much heavier than average. In conclusion, the average Trail frame weighs 30.9% less than Reactor 290 Alloy Frame.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Rear Shock
The shock that’s installed on this frame is RockShox Super Deluxe Ultimate RCT, with a travel distance of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
