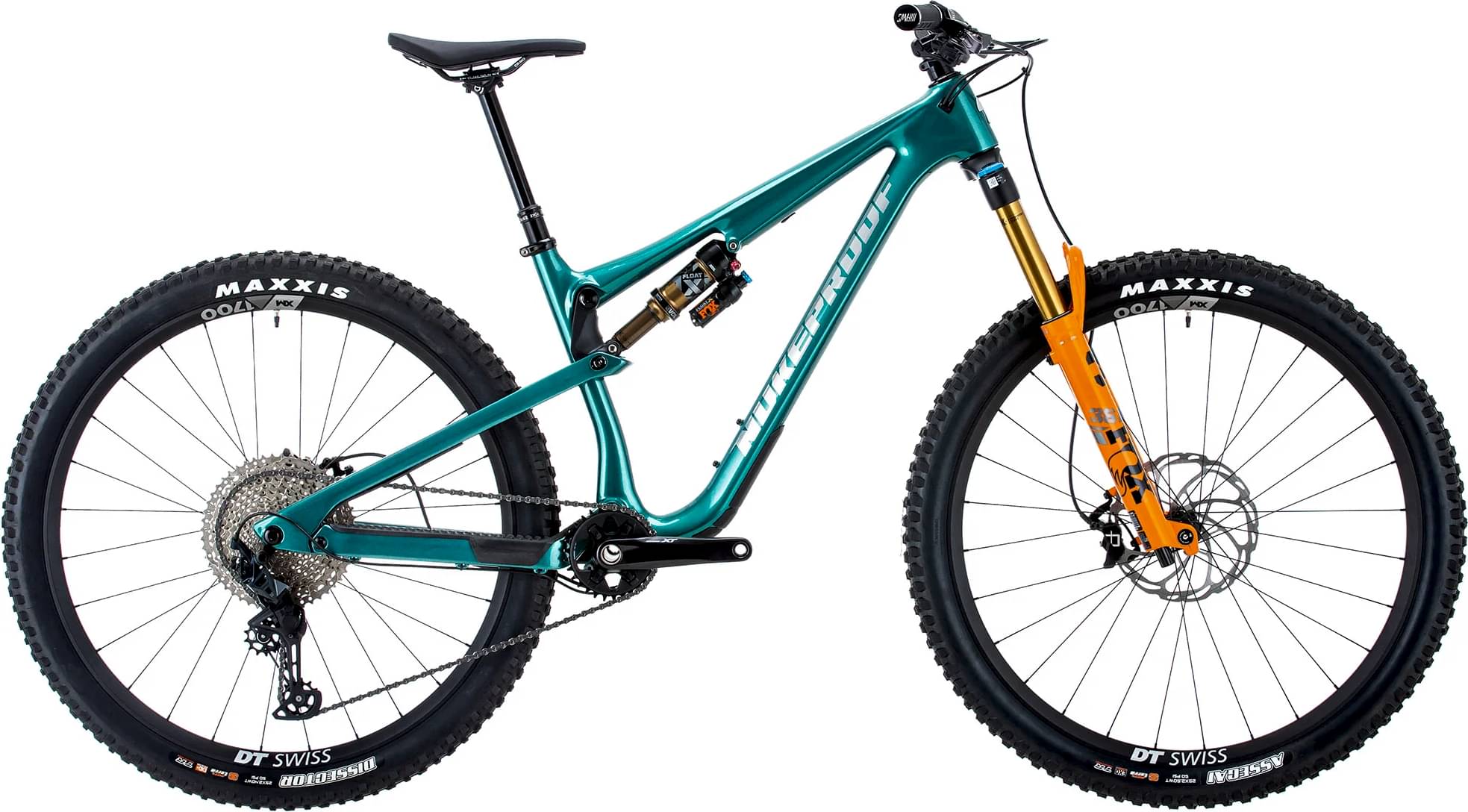

Nukeproof Reactor 290 Carbon Factory 2023
2023 Mountain
Estimate price |
6,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset SLX, XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Reactor 290 Carbon, 130mm Travel, UD woven Carbon Fibre frame, internal cable routing, ISCG 05 mounts, Enduro bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured rubber frame protection
Suspension Fork
Fox 36 Float, Factory Series, Kashima, Grip 2 Damper, 150mm, 44mm Offset, BOOST, Orange
Rear Shock
Fox Float X, Factory Series, Kashima, 2 Position, EVOL LV, Custom 0.2 Spacer, CM+, RM, Rezi LM+ tune, 210x50mm, Bearing End
Drivetrain
Rear Derailleur
Shimano SLX M7100, SGS 12-Speed, Shadow Plus
Shift Levers
Shimano XT M8100-R, 12-speed Rapidfire Plus, I-Spec EV
Cassette
DTS GMX12, 12-Speed, 11-50T
Crank
Shimano XT M8100 12-Speed, Hollowtech 2, 170mm, 30T, 52mm Chainline
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano XT M8100 HG 12-speed Inc Quicklink
Chain Guide
N/A
Wheels
Rims
Front: DT Swiss XM1700 SPLINE 30, 29", 6 Bolt, 110x15mm, Rear: DT Swiss XM1700 SPLINE 30, 29", 6 Bolt, HG Freehub, 148x12mm
Tires
Front: Maxxis Assegai, 29”x2.5 WT 3C MaxxTerra/EXO+/TR, Rear: Maxxis Dissector, 29”x2.4 WT 3C MaxxTerra/EXO+/TR
Brakes
Brakes
Hayes Dominion A4, 4-Pot Brake
Cockpit
Stem
Nukeproof Horizon, 45mm, Black
Handlebar
Nukeproof Horizon V2 25mm Rise, 31.8mm, Width - M780mm, L800mm, XL800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof, 44-56 IITS
Seat
Saddle
Nukeproof
Seatpost
Bikeyoke Divine Stealth with Triggy Remote lever, M:160mm drop; L/XL:185mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Reactor 290c ST (130mm Fork) | Reactor 290 140mm Fork (Carbon) | Reactor 290 150mm Fork (Carbon) | Reactor 290c ST (130mm Fork) | Reactor 290 140mm Fork (Carbon) | Reactor 290 150mm Fork (Carbon) | Reactor 290c ST (130mm Fork) | Reactor 290 140mm Fork (Carbon) | Reactor 290 150mm Fork (Carbon) |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.36 mm | 1.38 mm | 1.26 mm | 1.29 mm | 1.31 mm | 1.18 mm | 1.21 mm | 1.23 mm |
| Bottom Bracket Height | 330 mm | 336 mm | 336 mm | 330 mm | 336 mm | 336 mm | 330 mm | 336 mm | 336 mm |
| Front Center | 755.5 mm | 762.5 mm | 766.5 mm | 785 mm | 792 mm | 796 mm | 823 mm | 830 mm | 834 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 105 mm | 111 mm | 115 mm | 105 mm | 112 mm | 117 mm | 105 mm | 112 mm | 117 mm |
| Stack | 611 mm | 618 mm | 621.4 mm | 617 mm | 623 mm | 626.5 mm | 621 mm | 628 mm | 631.7 mm |
| Reach | 463 mm | 454 mm | 449.3 mm | 491 mm | 483 mm | 478.4 mm | 524.6 mm | 517 mm | 512.5 mm |
| Top Tube Length | 611 mm | 613 mm | 614.4 mm | 641 mm | 643 mm | 644.2 mm | 676 mm | 678 mm | 679.3 mm |
| Seat Tube Angle | 76.3 ° | 75.5 ° | 75.1 ° | 76.3 ° | 75.5 ° | 75.1 ° | 76.3 ° | 75.5 ° | 75.1 ° |
| Seat Tube Length | 420 mm | 420 mm | 420 mm | 458 mm | 458 mm | 458 mm | 508 mm | 508 mm | 508 mm |
| Head Tube Angle | 66.8 ° | 66 ° | 65.5 ° | 66.8 ° | 66 ° | 65.5 ° | 66.8 ° | 66 ° | 65.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 110 mm | 110 mm | 110 mm | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1201 mm | 1208 mm | 1212 mm | 1231 mm | 1238 mm | 1242 mm | 1267 mm | 1274 mm | 1278 mm |
| Bottom Bracket Drop | 39 mm | 33 mm | 30 mm | 39 mm | 33 mm | 30 mm | 39 mm | 33 mm | 30 mm |
| Standover Height | 733 mm | 739 mm | 742 mm | 741 mm | 747 mm | 750 mm | 766 mm | 772 mm | 775 mm |
| Front Travel | 130 mm | 140 mm | 150 mm | 130 mm | 140 mm | 150 mm | 130 mm | 140 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Reactor 290 Carbon Factory is a Nukeproof Reactor model. Nukeproof released 61 bikes variations of this model so far. Take a sneak peek at all Nukeproof Reactor bikes models from 2023, by clicking here.
Model range prices
Nukeproof Reactor 275 Alloy Comp 2023 is the cheapest bike model and costs 3648$. Nukeproof Reactor 290 Carbon RS 2023 is the most expensive one and costs 7662$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 6499$. In conclusion, this bike price is 135.3% higher than the price of the average Trail bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Reactor 290 Carbon Factory components
Fork
The Reactor 290 Carbon Factory comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Nukeproof Reactor 290 Carbon Factory bike has the Fox Float X model installed, and has a travel of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Reactor 290 Carbon Factory model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Reactor 290 Carbon Factory has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
The Nukeproof model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
