Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 36
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Reactor 290 Carbon, 130mm Rear Travel, UD woven Carbon Fibre front triangle/chain stays/seat stays, internal cable routing, custom tuned rear shock, Enduro bearings, threaded bottom bracket, boost 148mm rear axle spacing, 3D contoured frame protection
Suspension Fork
Fox 36 Float, Performance Series, Grip Damper, 140mm, 51mm Offset, BOOST, Black
Rear Shock
Fox Float DPX2, Performance Series, 3 Position, EVOL, Custom CL, LRL tune, 210x50mm, Bearing End (0.2 Spacer fitted.)
Drivetrain
Rear Derailleur
Shimano SLX M7100, SGS 12-Speed, Shadow Plus
Shift Levers
Shimano SLX M7100-IR, 12-speed Rapidfire Plus, I-Spec EV
Cassette
Shimano SLX M7100-12, 12-Speed (HYPERGLIDE+), 10-51T
Crank
Shimano SLX M7100 12-Speed, Hollowtech 2, 170mm, 30T, 52mm Chainline
Bottom Bracket
Threaded 73mm BSA
Chain Guide
ISCG05
Wheels
Rear Hub
Boost 148x12mm
Rims
DT Swiss M1900 SPLINE 29", Centrelock, 110x15mm
Tires
Front: Maxxis Assegai 29”x2.5 WT 3C MaxxTerra/EXO+/TR, Rear: Maxxis Minion DHR II 29”x2.4 WT 3C MaxxTerra/EXO+/TR
Brakes
Brakes
Shimano SLX M7120, 4 Pot Brake, Metallic Pads
Disk Rotors
Shimano RT70, 203mm (Front), 180mm (Rear)
Cockpit
Stem
Nukeproof Neutron, 45mm, Black
Handlebar
Nukeproof Horizon 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm)
Grips
Nukeproof Sam Hill Signature
Headset
ZS44-28.6 – T2 / ZS56/40 – B8
Seat
Saddle
Nukeproof Horizon SL, Black
Seatpost
31.6mm (Internal Routing for Dropper Seatpost)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.29 mm | 1.21 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm |
| Front Center | 767 mm | 797 mm | 833 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 112 mm | 112 mm |
| Stack | 618 mm | 623 mm | 628 mm |
| Reach | 454 mm | 483 mm | 517 mm |
| Top Tube Length | 613 mm | 643 mm | 678 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1208 mm | 1238 mm | 1274 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm |
| Front Travel | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

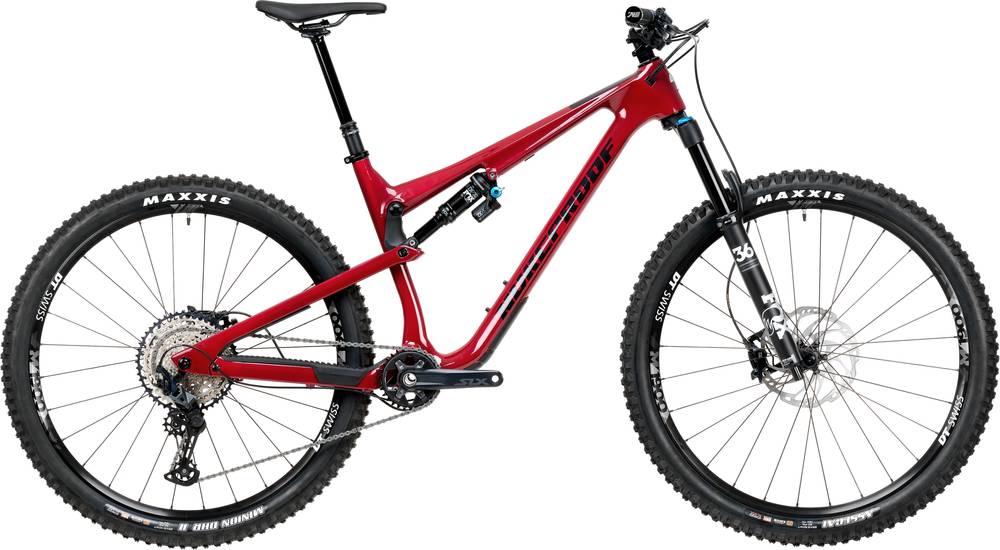

Model Overview
Reactor 290c Elite is part of the Nukeproof Reactor model. Nukeproof released 61 bikes variations of this model so far. Take a sneak peek at all Nukeproof Reactor bikes models from 2020, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Reactor 290c Elite components
Fork
Nukeproof Reactor 290c Elite 2020 bike is equipped with the Fox Performance Float 36 fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the Fox Float DPX2 model, with a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Reactor 290c Elite 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Nukeproof Reactor 290c Elite has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
