Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
OBED Carbon
Drivetrain
Rear Derailleur
Shimano 105 R7000
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano R7020
Cassette
Shimano HG700 11-34
Crank
Shimano 105 R7000 50/34
Bottom Bracket
Pressfit BB86
Chain
Shimano HG601
Pedals
Not Included
Wheels
Rims
Select Wheels Above
Tires
Select Tires Above
Brakes
Brakes
Shimano 105
Cockpit
Stem
FSA Gossamer
Handlebar
FSA Gossamer Wing Compact
Headset
Cane Creek 40 Series
Seat
Saddle
WTB Volt Steel Rail
Seatpost
FSA Gossamer Alloy 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 594 mm | 595 mm | 600 mm | 611 mm | 626 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 69 mm | 61 mm | 58 mm | 58 mm |
| Stack | 542 mm | 562 mm | 573 mm | 595 mm | 614 mm |
| Reach | 376 mm | 380 mm | 381 mm | 390 mm | 399 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1025 mm | 1026 mm | 1031 mm | 1042 mm | 1057 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 754 mm | 781 mm | 798 mm | 818 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

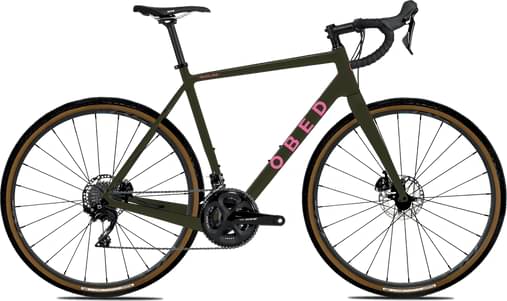

Baseline 105 completes the Obed Baseline model. 13 bikes variations carry this model name so far. You can easily view all of the Obed Baseline bikes models from 2023, here.
Model range prices
Obed Baseline 105 2023 is the most economical model, with a starting price of 2895$. Obed Baseline Ultegra Di2 12 Spd 2023 on the other hand costs 4850$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Obed Baseline 105 price was 2895$. In conclusion, this bike price is 23.4% more expensive than the price of the average Endurance bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Baseline 105 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
