Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Fork MRP Raven
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
MRP Raven, independently adjustable positive and negative air chambers, bladder-free damper with low-pressure IFP
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
SRAM GX Eagle DUB, 170mm length
Bottom Bracket
SRAM DUB, 73mm English/BSA threaded
Chain
KMC X12, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Formula, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Formula, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
Alexrims EXR30, 32 hole
Tires
Panaracer FireSport, wire bead, 29" x 2.35"
Brakes
Brakes
SRAM G2 R, 4-piston, Clarks rotors (203mm front, 160mm rear)
Brake Levers
SRAM G2 R, Matchmaker clamps
Cockpit
Stem
On-One Hot Box V2, 60mm length, 7° rise, 31.8mm bar clamp
Handlebar
On-One Enduro6 Riser, 780mm width, 31.8mm clamp diameter
Grips
On-One Knurl
Headset
Selcof, semi-integrated, cartridge bearings
Seat
Saddle
San Marco Monza Start, carbon steel rails
Seatpost
On-One Twelfty V2, 6061 alloy, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.39 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 731 mm | 768 mm | 785 mm | 813 mm |
| Rake | 52 mm | 54 mm | 52 mm | 53 mm |
| Trail | 117 mm | 115 mm | 117 mm | 116 mm |
| Stack | 606 mm | 616 mm | 625 mm | 638 mm |
| Reach | 412 mm | 442 mm | 457 mm | 477 mm |
| Top Tube Length | 577 mm | 612 mm | 627 mm | 652 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1166 mm | 1203 mm | 1220 mm | 1248 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

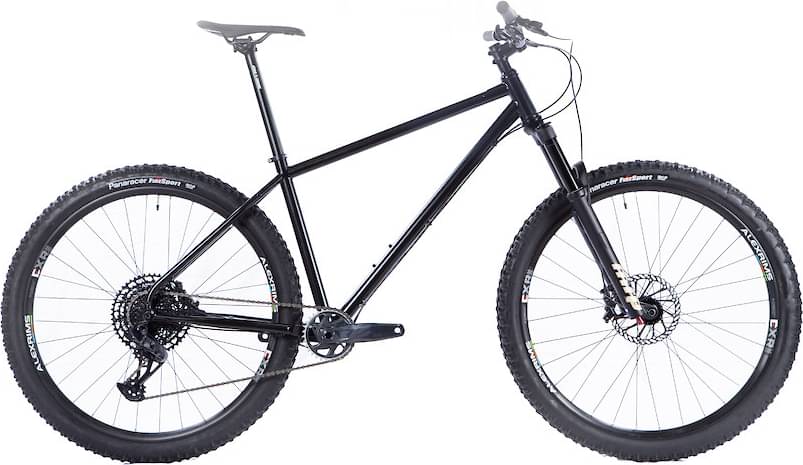

Big Dog SRAM GX completes the Onone Big Dog model. On-One launched 10 bikes of this model so far. Take a sneak peek at all Onone Big Dog bikes models from 2021, by clicking here.
Model range prices
On-One Big Dog SRAM SX 2021 is the most affordable bike of this model and has a price of 1529$. On the other hand, On-One Big Dog SRAM GX 2021, is the most expensive and costs 2141$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2021 and its price was 2141$. In conclusion, this bike price is 29.01% lower than the price of the average Trail bike.
Big Dog SRAM GX components
Fork
The fork installed on this bike is the MRP Raven model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Big Dog SRAM GX are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Big Dog SRAM GX comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
