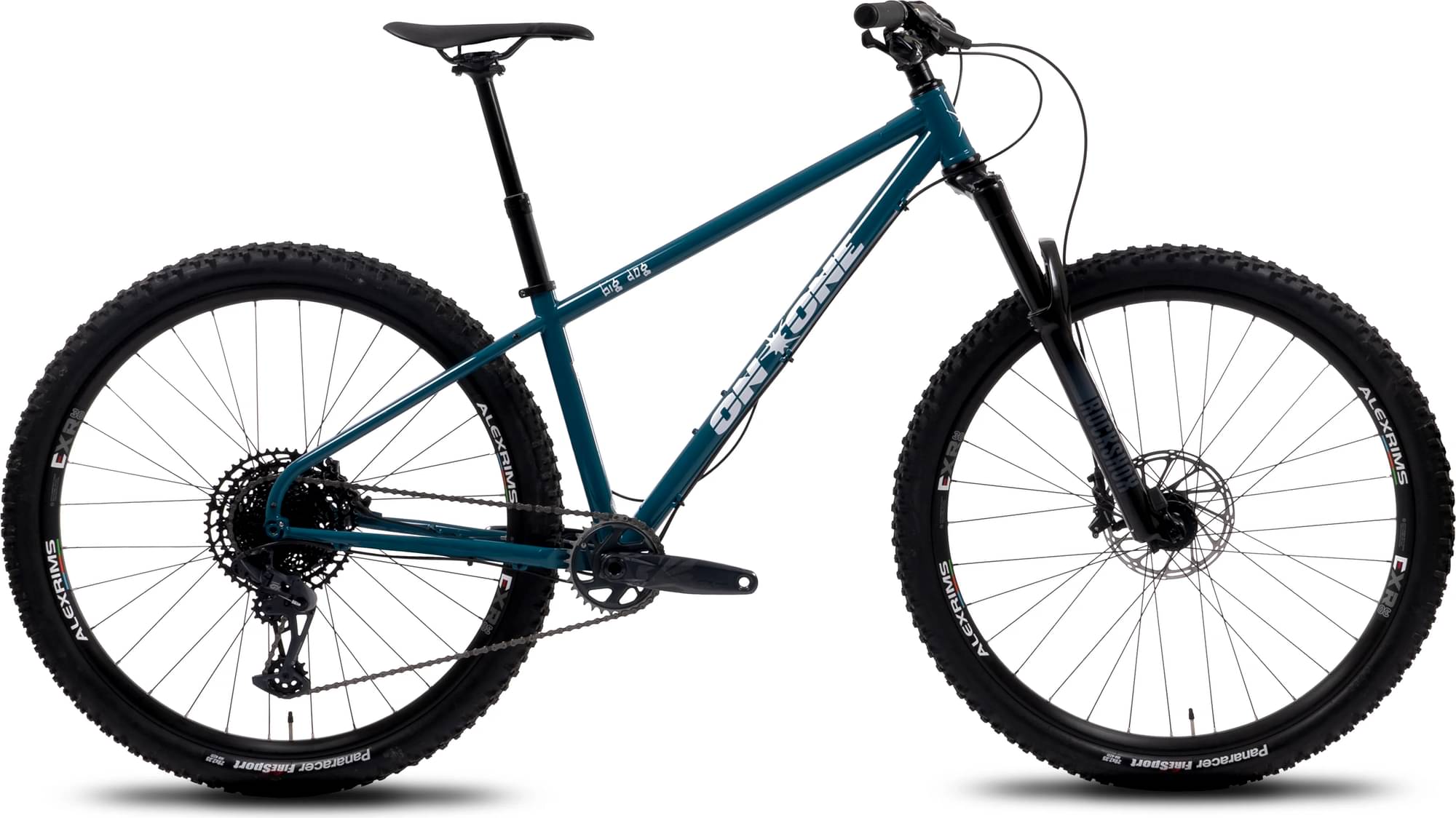

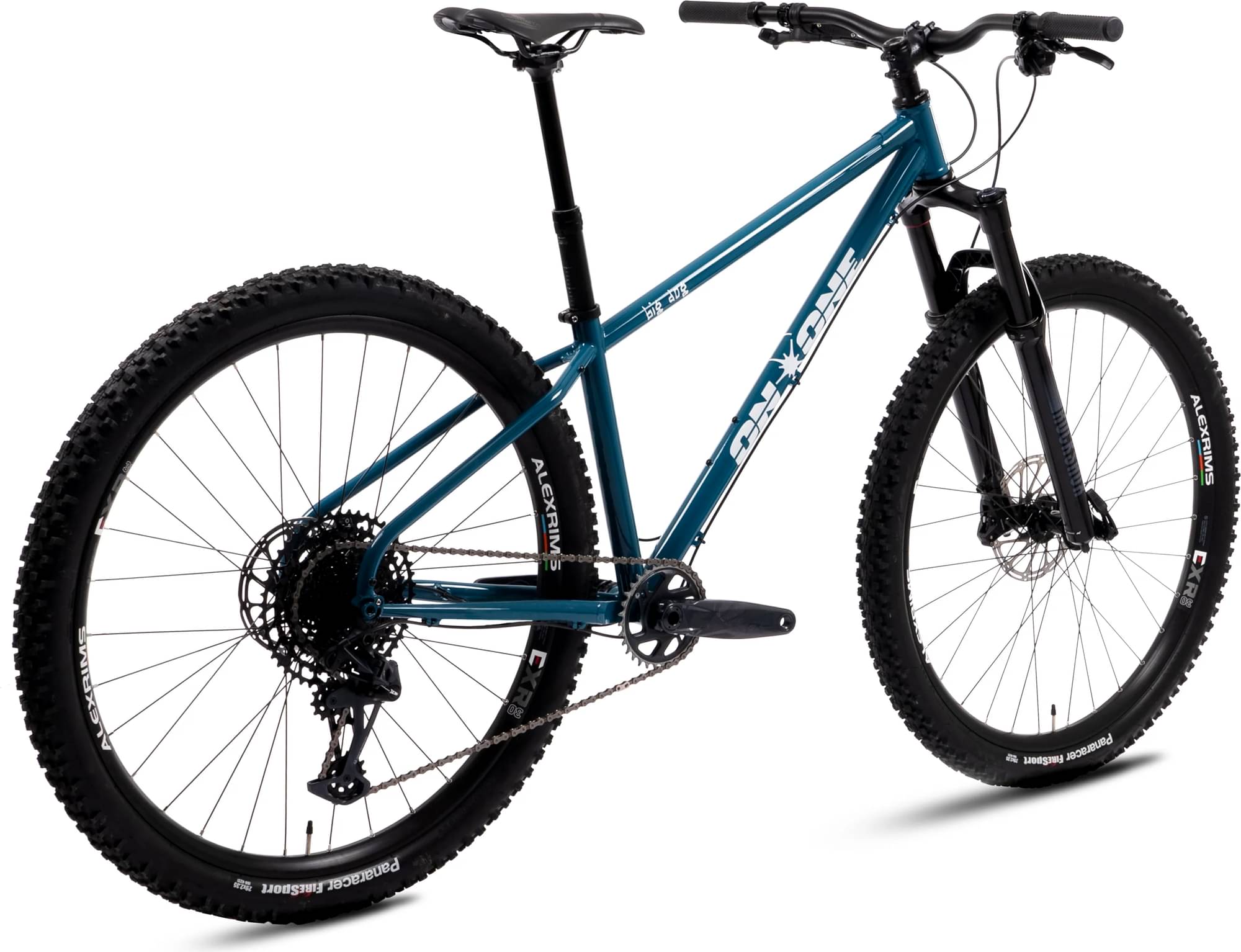

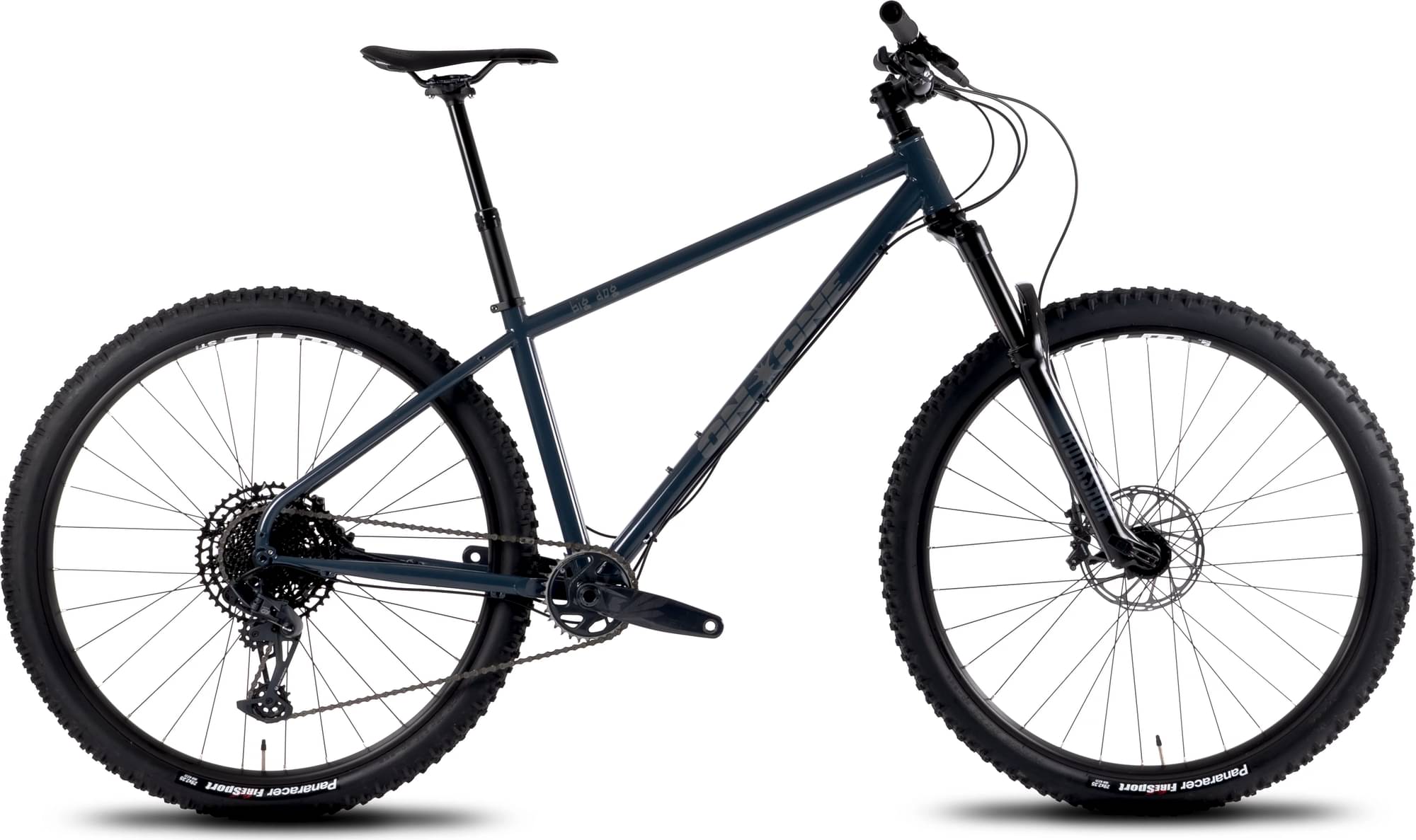

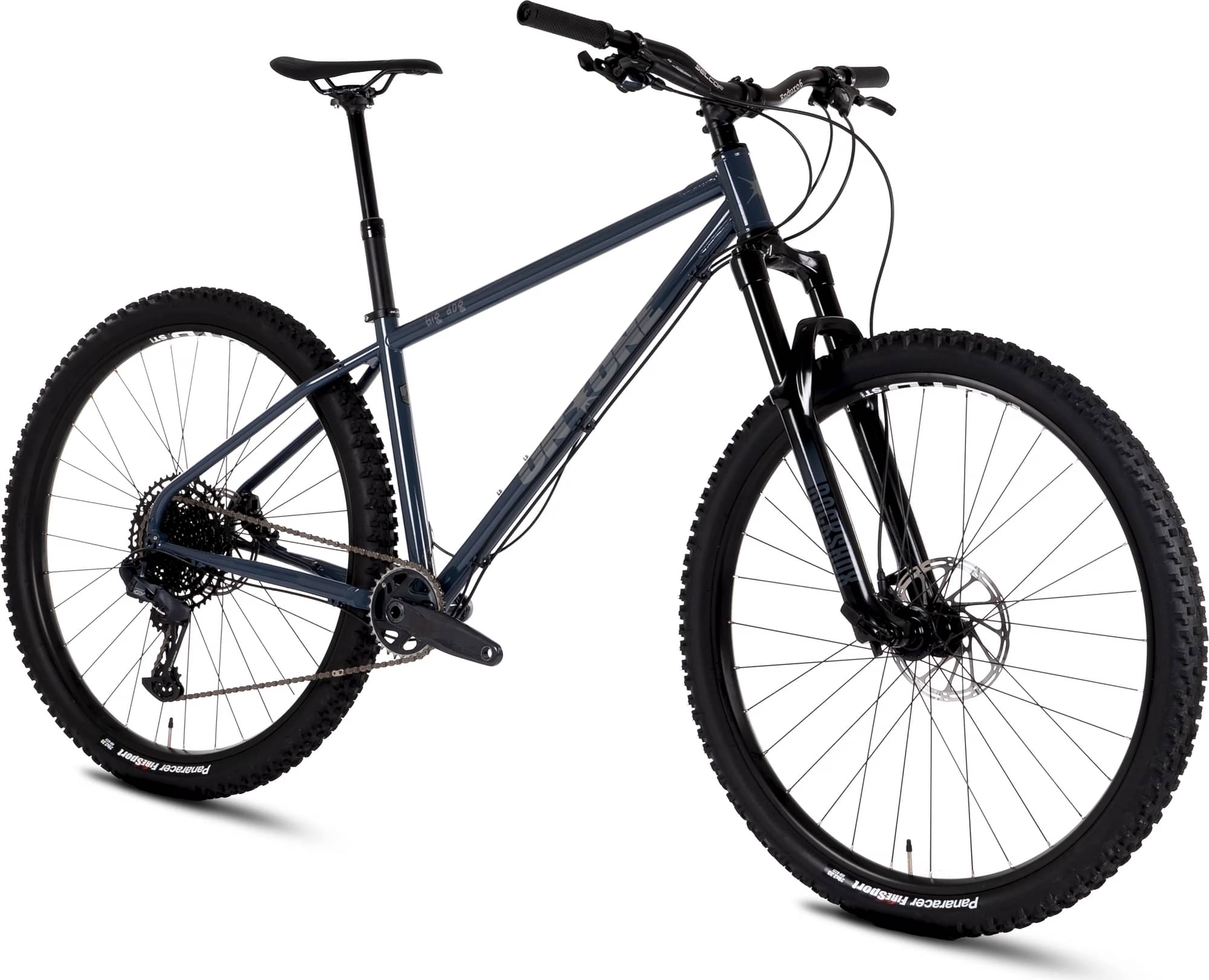

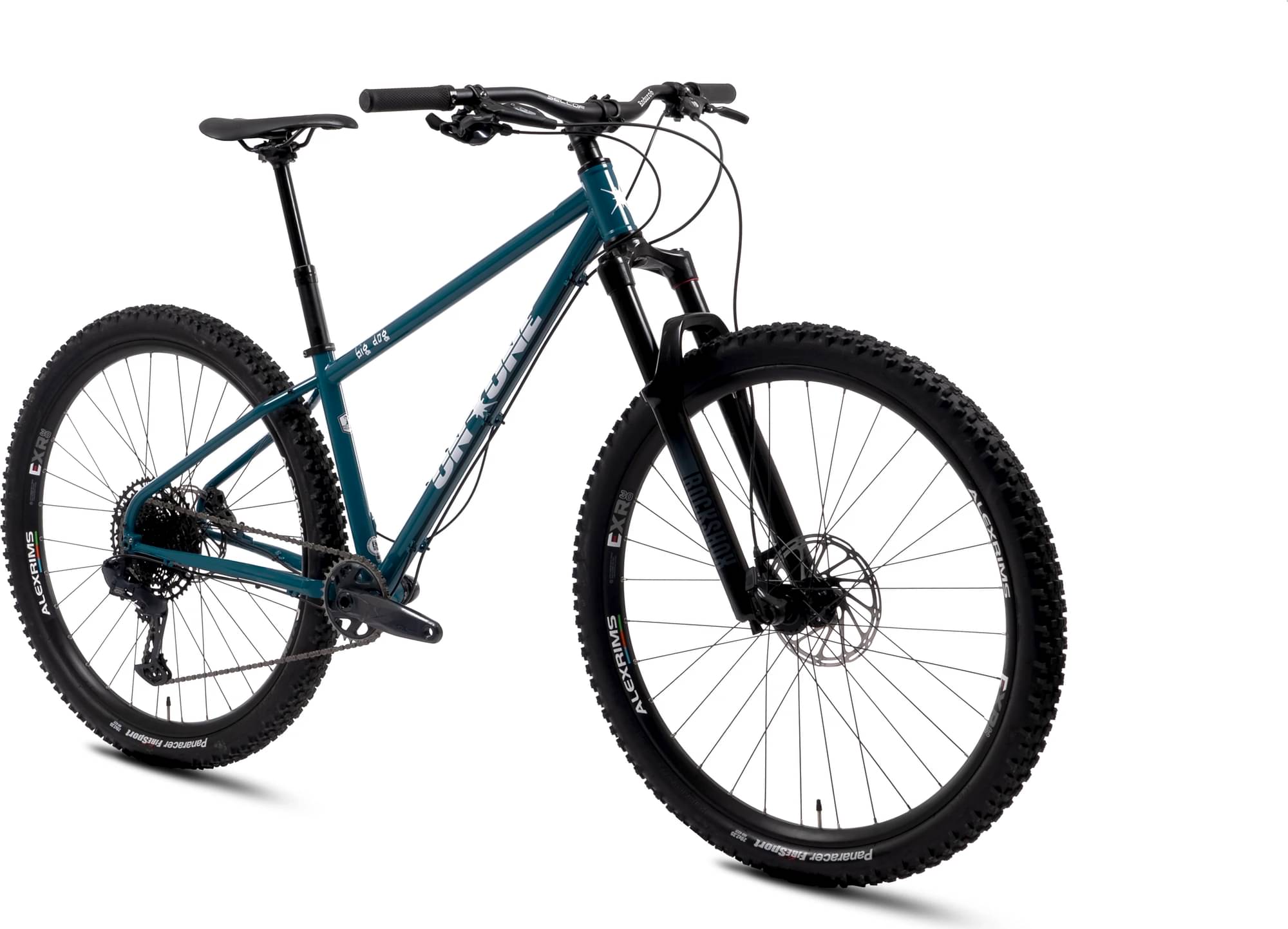

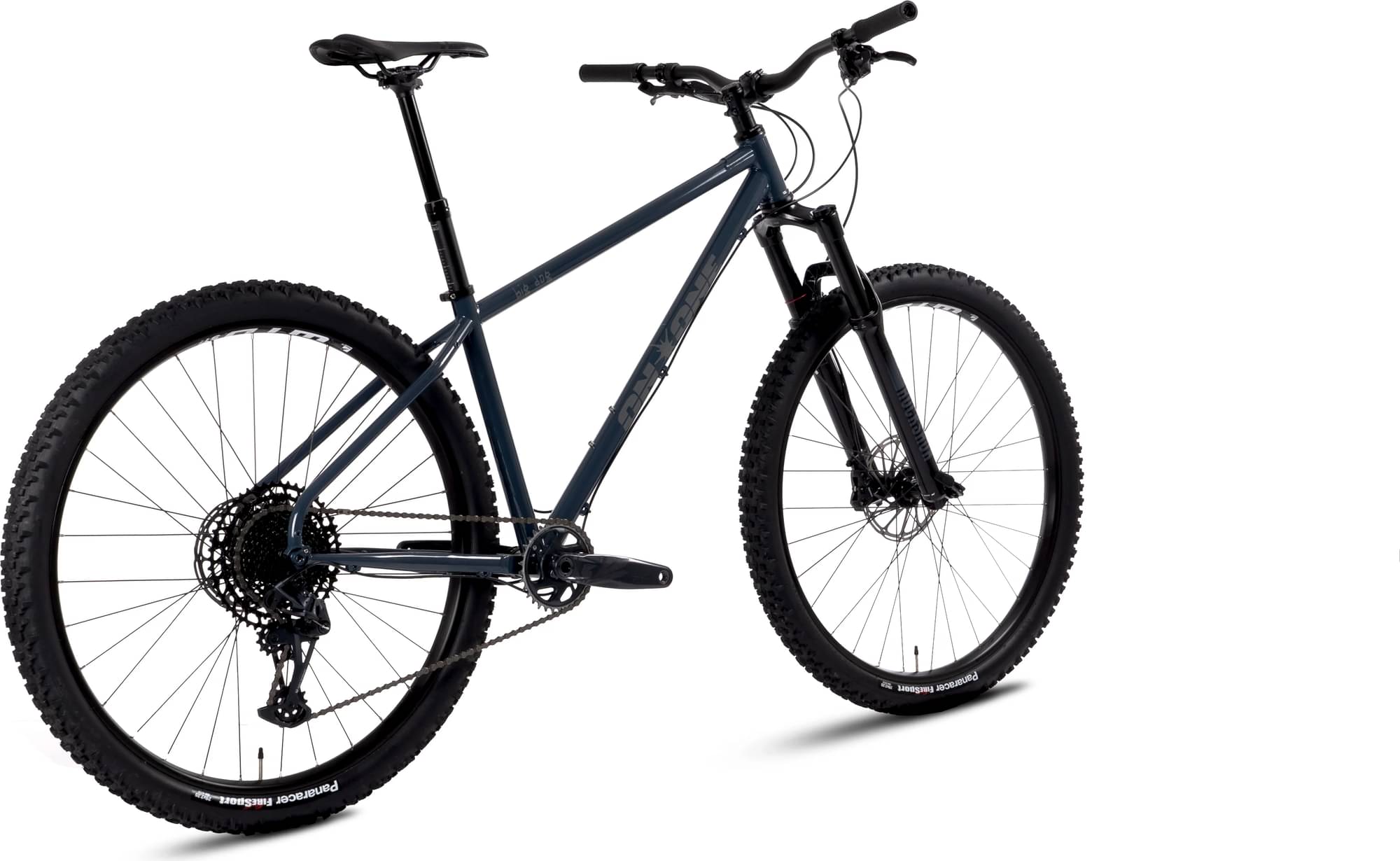

onone On-One Big Dog SRAM GX 2023
2023 Mountain
Estimate price |
2,140$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
On-One Big Dog 29" Mountain Bike Frame / Slate Grey / Medium
Suspension Fork
RockShox 35 Gold RL DebonAir 29" BOOST Fork / 130mm / 15x110mm / Gloss Black / Crown Adjust
Drivetrain
Rear Derailleur
SRAM GX Eagle Rear Mech (Lunar Colourway) / 1 x 12 Speed
Cassette
SRAM PG-1210 Eagle 12 Speed Cassette / 11-50
Crank
SRAM GX Eagle DUB Crankset (Lunar Colourway) / 170mm / 32T / BOOST
Bottom Bracket
SRAM DUB BSA Bottom Bracket / 73mm
Chain
SRAM SX Eagle 12 Speed Chain / 126 Link
Wheels
Rims
WTB I30 29er On Formula Boost 6 Bolt Wheelset / Shimano 11 Speed
Tires
Panaracer FireSport 29" Wire Bead Tyre / 2.35"
Brakes
Brakes
SRAM Guide G2 R Hydraulic Disc Brake / Rear / 1800 / 20 Post to IS
Cockpit
Stem
Selcof Hot Box Stem / 50mm
Handlebar
Selcof Enduro6 Riser Handlebar / 780mm
Grips
Selcof Knurl Grip / Black
Seat
Saddle
San Marco Monza Start Wide Saddle / Black / Carbon Steel
Seatpost
Selcof Twelfty Alloy Inline Seatpost / 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.39 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 725 mm | 762 mm | 779 mm | 807 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 117 mm | 116 mm | 117 mm | 116 mm |
| Stack | 606 mm | 616 mm | 625 mm | 638 mm |
| Reach | 412 mm | 443 mm | 457 mm | 477 mm |
| Top Tube Length | 577 mm | 612 mm | 627 mm | 652 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1166 mm | 1203 mm | 1220 mm | 1248 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Big Dog SRAM GX is an Onone Big Dog model. On-One released 10 bikes variations of this model so far. Take a sneak peek at all Onone Big Dog bikes models from 2023, by clicking here.
Model range prices
On-One Big Dog SRAM SX 2023 is the most economical model, with a starting price of 1580$. On-One Big Dog SRAM GX AXS 2023 on the other hand costs 2918$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When On-One released this model in 2023, its price was 1945$. If we compare this with the average Trail bike cost we notice that the price is 42.01% smaller.
Overview of components
Fork
The RockShox 35 Gold RL is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Big Dog SRAM GX model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Big Dog SRAM GX has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
On-One Big Dog SRAM GX bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
