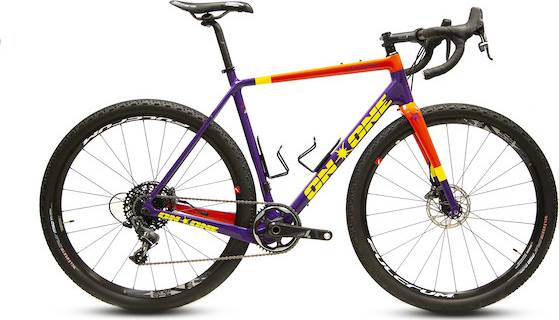

On-One Free Ranger SRAM Force 1 2020
2020 Road
Estimate price |
2,408$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Free Ranger carbon adventure frameset Toray T700 Hi Mod carbon frame and fork. 12mm through axles, flat mount discs. 700c or 650B wheel versatility. 48mm tyres? Yes. Rack and mudguards? Yes.
Drivetrain
Rear Derailleur
SRAM Force 1 Rear Mech / 11 Speed / Long Cage
Cassette
SRAM PG1130 Cassette / 11-42T
Crank
SRAM Force 1 GXP Chainset (No BB) / 172.5mm / 42T
Bottom Bracket
SRAM GXP XR Bottom Bracket (With Spacers) / 68/73mm
Chain
SRAM PC1110 11 Speed Chain / 116 Links
Wheels
Rims
Fulcrum Racing 900 Disc 700c Centrelock Wheelset / Front 12mm Thru / Rear 12 x 142mm / Shimano 11 Speed
Tires
Vittoria Trail Tech G+ Tubeless Ready Folding Tyre / 38mm (40-622) / Reflective Full Black
Brakes
Brakes
UK Brake Lever Setup Rear Brake Left
Cockpit
Stem
Selcof Zeta V2 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Sterrato Flared Gravel Handlebar / 42cm
Seat
Saddle
San Marco Monza Start Saddle / Black / Carbon Steel
Seatpost
Selcof Zeta V2 6061 Alloy Seatpost / 27.2mm / 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 595 mm | 595 mm | 600 mm | 610 mm | 626 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 72 mm | 65 mm | 61 mm | 60 mm |
| Stack | 541 mm | 562 mm | 573 mm | 594 mm | 613 mm |
| Reach | 376 mm | 379 mm | 381 mm | 389 mm | 398 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1025 mm | 1026 mm | 1030 mm | 1041 mm | 1057 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 764 mm | 791 mm | 807 mm | 828 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Free Ranger SRAM Force 1 is part of the Onone Free model. 26 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
On-One Free Ranger SRAM Rival 1 650b 2020 is the most affordable bike of this model and has a price of 1945$. On the other hand, On-One Free Ranger Shimano GRX 1x Carbon 2020, is the most expensive and costs 2432$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When On-One released this model in 2020, its price was 2188$. Doing a quick comparison, we notice that Free Ranger SRAM Force 1 price is 12.52% lower than the average cost of a Gravel bike.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Free Ranger SRAM Force 1 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. On-One Free Ranger SRAM Force 1 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
