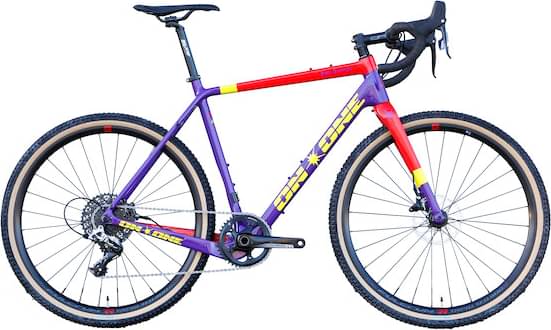

onone On-One Free Ranger SRAM HRD Rival 1 650b 2022
2022 Road
Estimate price |
2,140$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Free Ranger carbon adventure frameset Toray T700 Hi Mod carbon frame and fork. 12mm through axles, flat mount discs. 700c or 650B wheel versatility. 48mm tyres? Yes. Rack and mudguards? Yes.
Drivetrain
Rear Derailleur
SRAM Rival 1 Rear Mech / Long Cage
Cassette
SRAM PG1130 Cassette / 11-42T
Crank
SRAM Rival 1 GXP Chainset (No BB) / 172.5mm / 42t
Bottom Bracket
SRAM GXP XR Bottom Bracket (With Spacers) / 68/73mm
Chain
SRAM PC1110 11 Speed Chain / 116 Links
Wheels
Rims
Fulcrum Rapid Red 900 650B Disc Centrelock Clincher Wheelset / Shimano 11 Speed
Tires
Panaracer Comet Hardpack Wire Bead 27.5" Tyre / 2.0"
Brakes
Brakes
UK Brake Lever Setup Rear Brake Left
Cockpit
Stem
Selcof Zeta V2 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Sterrato Flared Gravel Handlebar / 42cm
Seat
Saddle
San Marco Monza Start Saddle / Black / Carbon Steel
Seatpost
Selcof Zeta 6061 Alloy Seatpost / 27.2mm / 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.54 mm |
| Front Center | 595 mm | 595 mm | 600 mm | 610 mm | 626 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 65 mm | 59 mm | 55 mm | 54 mm |
| Stack | 541 mm | 562 mm | 573 mm | 594 mm | 613 mm |
| Reach | 376 mm | 379 mm | 381 mm | 389 mm | 398 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1025 mm | 1026 mm | 1030 mm | 1041 mm | 1057 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 764 mm | 791 mm | 807 mm | 828 mm | 846 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Free Ranger SRAM HRD Rival 1 650b is part of the Onone Free model. There are 26 bikes that carry this model name. You can easily view all of the Onone Free bikes models from 2022, here.
Model range prices
On-One Free Ranger SRAM Rival 1 Carbon 2022 is the most affordable bike of this model and has a price of 1458$. On the other hand, On-One Free Ranger Campagnolo Ekar 2022, is the most expensive and costs 3526$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When On-One released this model in 2022, its price was 1945$. Comparing this to the average Gravel bike price, we see that the price is 26.58% lower.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Free Ranger SRAM HRD Rival 1 650b are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Free Ranger SRAM HRD Rival 1 650b has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
