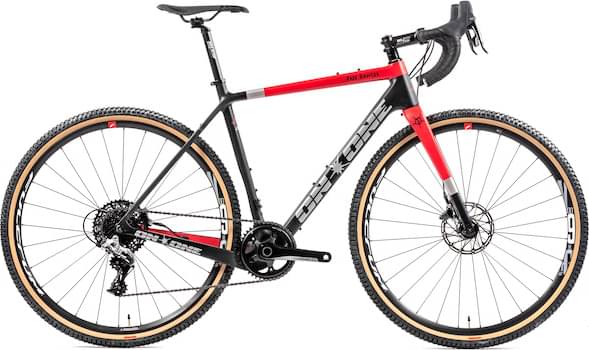

onone On-One Free Ranger SRAM HRD Rival 1 Carbon 2022
2022 Road
Estimate price |
1,872$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Free Ranger carbon adventure frameset Toray T700 Hi Mod carbon frame and fork. 12mm through axles, flat mount discs. 700c or 650B wheel versatility. 48mm tyres? Yes. Rack and mudguards? Yes.
Drivetrain
Rear Derailleur
SRAM Rival 1 Rear Mech / Long Cage
Cassette
SRAM PG1130 Cassette / 11-42T
Crank
SRAM Rival 1 GXP Chainset (No BB) / 172.5mm / 42t
Bottom Bracket
SRAM GXP XR Bottom Bracket (With Spacers) / 68/73mm
Chain
SRAM PC1110 11 Speed Chain / 116 Links
Wheels
Rims
Fulcrum Racing 900 Disc 700c Centrelock Wheelset / Front 12mm Thru / Rear 12 x 142mm / Shimano 11 Speed
Tires
Panaracer Comet Hardpack Wire Bead Tyre / 700c / 38mm / Black
Brakes
Brakes
UK Brake Lever Setup Rear Brake Left
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Sterrato Flared Gravel Handlebar / 42cm
Seat
Saddle
San Marco Monza Start Saddle / Black / Carbon Steel
Seatpost
Selcof Zeta 6061 Alloy Seatpost / 27.2mm / 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LRG 560mm | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 595 mm | 595 mm | 600 mm | 610 mm | 626 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 72 mm | 65 mm | 61 mm | 60 mm |
| Stack | 541 mm | 562 mm | 573 mm | 594 mm | 613 mm |
| Reach | 376 mm | 379 mm | 381 mm | 389 mm | 398 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1025 mm | 1026 mm | 1030 mm | 1041 mm | 1057 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 764 mm | 791 mm | 807 mm | 828 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Free Ranger SRAM HRD Rival 1 Carbon belongs to the Onone Free model. 26 bikes variations carry this model name so far. You can easily view all of the Onone Free bikes models from 2022, here.
Model range prices
On-One Free Ranger SRAM Rival 1 Carbon 2022 is the most affordable bike of this model and has a price of 1458$. On the other hand, On-One Free Ranger Campagnolo Ekar 2022, is the most expensive and costs 3526$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2022 and its price was 1702$. If we compare this with the average Gravel bike cost we notice that the price is 44.65% lower.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, On-One Free Ranger SRAM HRD Rival 1 Carbon 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Free Ranger SRAM HRD Rival 1 Carbon has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
