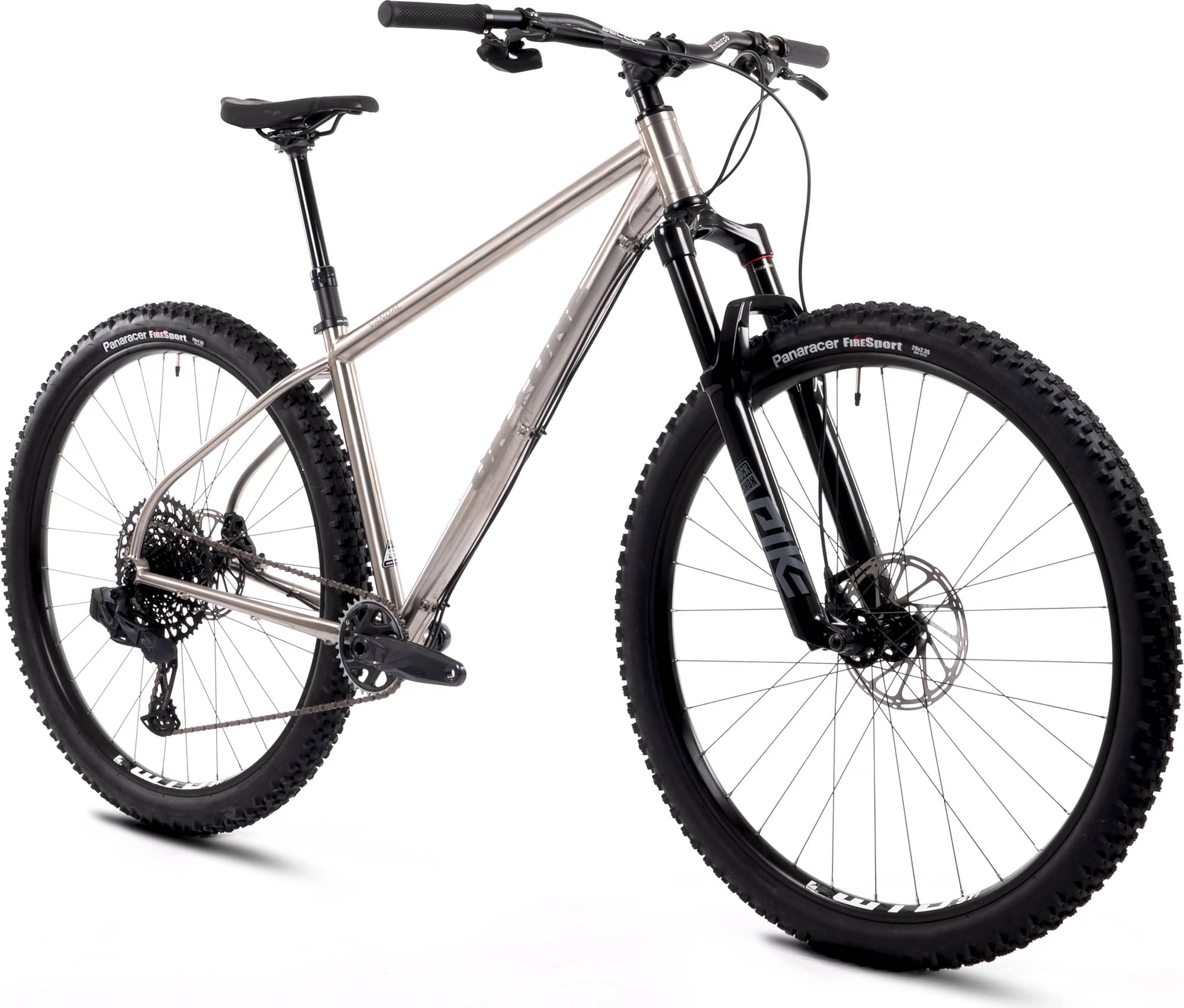

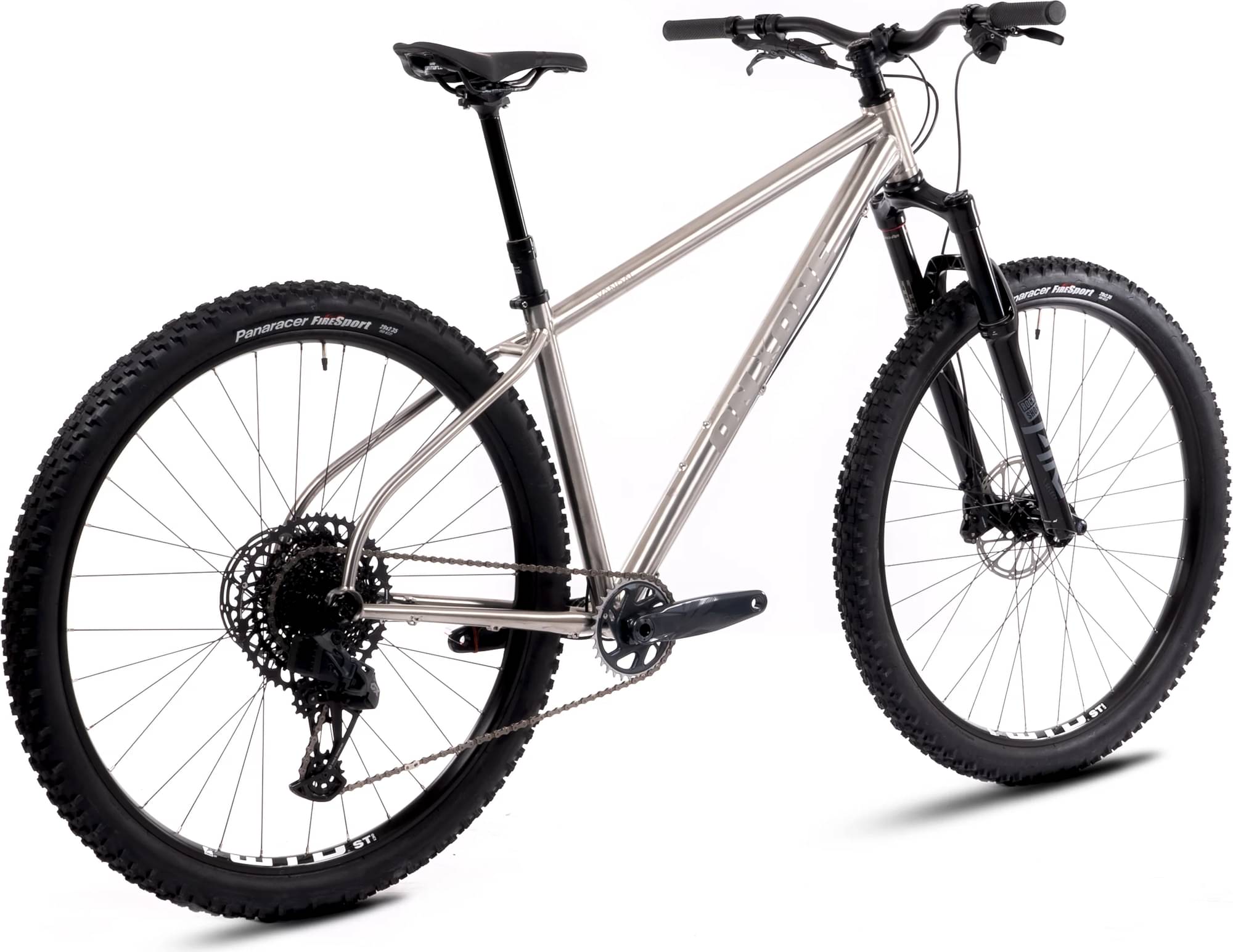

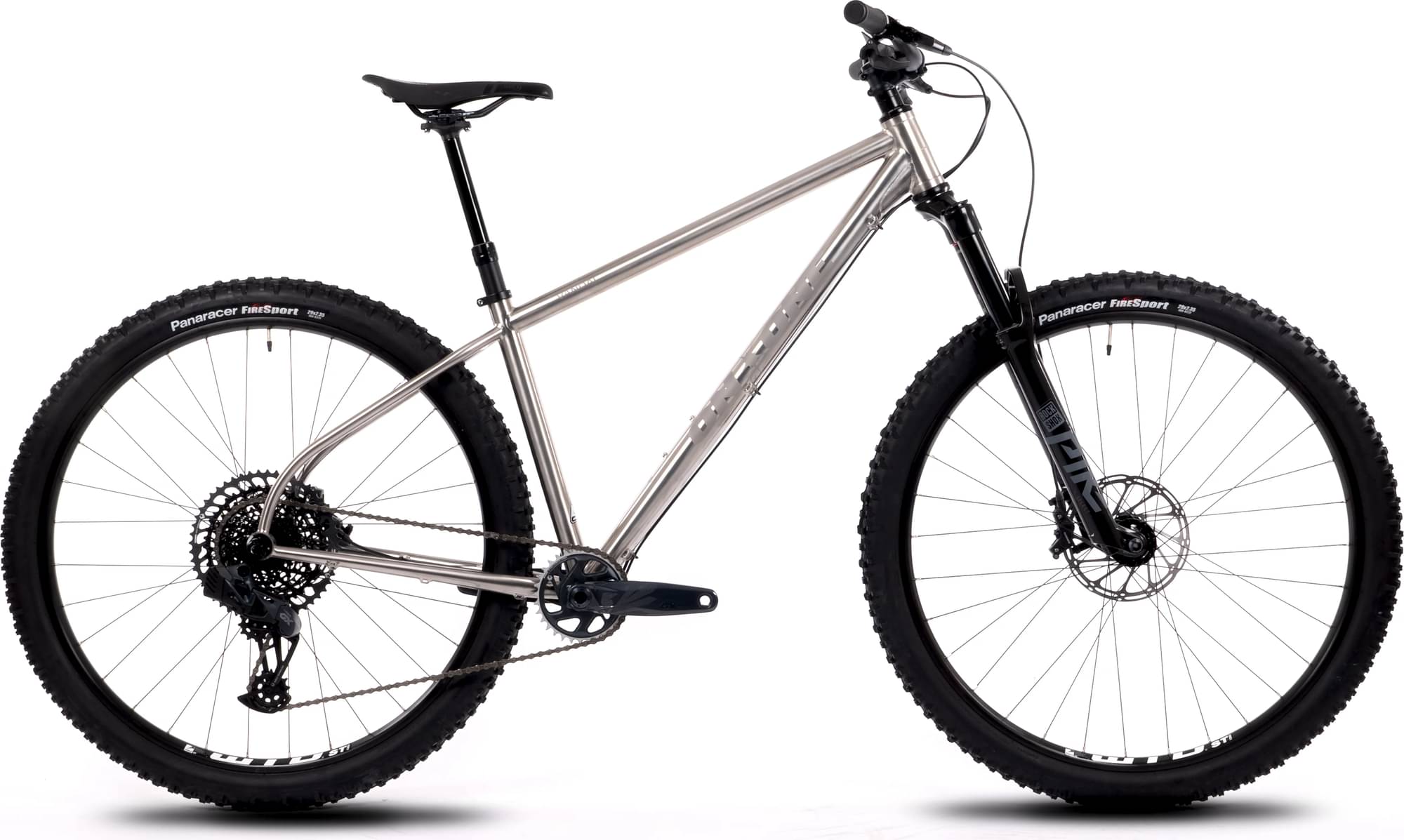

onone On-One Vandal SRAM GX AXS Titanium 2023
2023 Mountain
Estimate price |
3,880$
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Pike Select
-
Groupset GX Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
168cm - 178cm
LG
175cm - 188cm
XL
185cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
On-One Vandal Titanium Mountain Bike Frame / Medium
Suspension Fork
RockShox Pike Select 29" BOOST Fork / 130mm / 15 X 110mm / Gloss Black / Crown Adjust
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Rear Derailleur / Lunar / With Battery Protector
Cassette
SRAM XG-1275 Eagle 12 Speed Cassette / 10-52T
Crank
SRAM GX Eagle DUB Crankset (Lunar Colourway) / 170mm / 32T / BOOST
Bottom Bracket
SRAM DUB BSA Bottom Bracket / 73mm
Chain
SRAM SX Eagle 12 Speed Chain / 126 Link
Chain Guide
N/A
Wheels
Rims
WTB I30 29er On Selcof 150 Boost 6 Bolt Wheelset / SRAM XD
Tires
Panaracer FireSport 29" Wire Bead Tyre / 2.35"
Brakes
Brakes
SRAM Guide G2 R Hydraulic Disc Brake / Rear / 1800 / 20 Post to IS
Cockpit
Stem
Selcof Hot Box Stem / 50mm
Handlebar
Selcof Enduro6 Riser Handlebar / 780mm
Grips
Selcof Knurl Grip / Black
Seat
Saddle
San Marco GND Full-fit Start Up Wide Saddle
Seatpost
Selcof Watchtower Dropper Post / 30.9mm / 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.47 mm | 1.43 mm | 1.33 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 748 mm | 770 mm | 788 mm | 833 mm |
| Rake | 56 mm | 55 mm | 51 mm | 53 mm |
| Trail | 113 mm | 114 mm | 118 mm | 116 mm |
| Stack | 635 mm | 640 mm | 649 mm | 658 mm |
| Reach | 415 mm | 435 mm | 453 mm | 493 mm |
| Top Tube Length | 600 mm | 622 mm | 633 mm | 676 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 415 mm | 430 mm | 460 mm | 485 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1183 mm | 1205 mm | 1223 mm | 1269 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 178 cm | 188 cm | 196 cm |
About this model
Vandal SRAM GX AXS Titanium is part of the Onone Vandal model. On-One released 3 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
On-One Vandal SRAM GX Titanium 2023 is the most economical model, with a starting price of 2432$. On-One Vandal SRAM GX AXS Titanium 2023 on the other hand costs 3526$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When On-One released this model in 2023, its price was 3526$. Comparing this to the average Trail bike price, we see that the price is 27.66% more expensive.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.2 kg (29.1 lbs), On-One bike is slightly heavier than average. In conclusion, the average Trail bike weighs 1.69% less than Vandal SRAM GX AXS Titanium.
Overview of components
Fork
The Vandal SRAM GX AXS Titanium comes factory-installed with the RockShox Pike Select fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Vandal SRAM GX AXS Titanium bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. On-One Vandal SRAM GX AXS Titanium is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Vandal SRAM GX AXS Titanium comes in 4 sizes, that range from 160 cm – 196 cm (5.25 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
On-One Vandal SRAM GX AXS Titanium comes with a dropper post. Therefore, climbing or descending will be a breeze.
