Bike details
Overview
Key information split into simple groups.

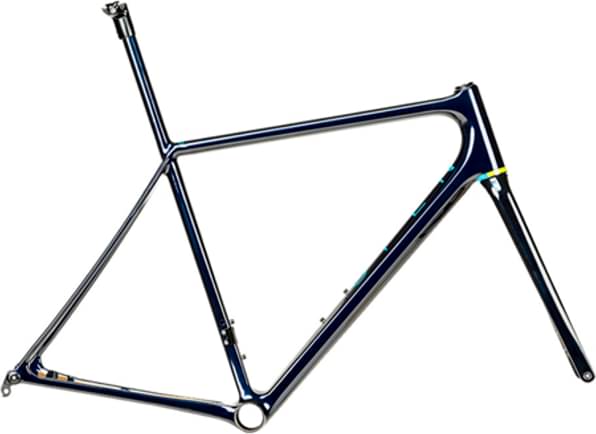

Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
167cm - 180cm
LG
177cm - 190cm
XL
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
BB386EVO pressfit 86.5x46mm BB shell
Brakes
Brakes
“140mm” (rear) caliper + 160mm rotor, no adaptors, 2x 39mm "screws for 30-34 mm rear mount thickness” (Campagnolo part# AC18-DBSC39)
Cockpit
Headset
Cane Creek Integrated IS42/28.6 | OPEN-custom Integrated IS47/38 (complete set part# CAA2011K. To purchase, go here.)
Seat
Seatpost
Integrated mast 25mm BB to saddle (to travel with the integrated mast, we recommend the Scicon Aerocomfort 3.0)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.52 mm | 1.54 mm |
| Bottom Bracket Height | 263 mm | 265 mm | 265 mm | 265 mm |
| Stack | 534 mm | 559 mm | 584 mm | 609 mm |
| Reach | 360 mm | 372 mm | 384 mm | 396 mm |
| Top Tube Length | 514 mm | 539 mm | 558 mm | 588 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 467 mm | 491 mm | 514 mm | 537 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 135 mm | 158 mm | 184 mm | 210 mm |
| Wheelbase | 970 mm | 977 mm | 997 mm | 1017 mm |
| Bottom Bracket Drop | 73 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 742 mm | 768 mm | 791 mm | 815 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 177 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 203 cm |
Model Overview
MIN.D. is part of the Open Mind model. OPEN launched 4 frames of this model so far. You can easily view all of the Open Mind frames models from 2023, here.
Model range prices
OPEN MIN.D. 2023 is the cheapest frame model and costs 3900$. OPEN MIN.D. California 2023 is the most expensive one and costs 7500$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race frames average price
If you want to purchase a solid Race frame, it is important to know that the average cost is 2445$. However, even though the average price of a Race frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, OPEN MIN.D. price was 3900$. Comparing this to the average Race frame price, we see that the price is 59.51% more expensive.
MIN.D. components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Brakes
When you want to stop the bike in time, the brakes are vital. The MIN.D. has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 160 cm – 203 cm (5.25 ft – 6.66 ft). In short, you can easily find one that suits you.
