Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 172cm
MD
170cm - 180cm
LG
177cm - 190cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OPEN U.P.
Suspension Fork
OPEN U-Turn
Drivetrain
Rear Derailleur
Campagnolo Ekar 13-speed
Shift Levers
Campagnolo Ekar hydraulic 13-speed
Cassette
Campagnolo Ekar 9-42T 13-speed
Crank
Campagnolo Ekar 170mm (XS/S), 172.5mm (M), 175mm (L & XL)
Bottom Bracket
Campagnolo Pro-Tech BB386EVO
Chain
Campagnolo Ekar 13-speed
Wheels
Rims
HED Emporia GA Pro 700c
Brakes
Brakes
Campagnolo Ekar hydraulic with 160mm rotors
Cockpit
Stem
3T Apro Stealth, 80mm (S)/90mm (M)/100mm (L)/110mm (XL)
Handlebar
3T Superergo LTD, 38cm (S)/40cm (M)/42cm (L)/44cm (XL)
Headset
Integrated IS42/28.6 | IS52/40 with 45x45 degree lower bearing). For example Cane Creek BAA1161 + BAA1131, Chris King DropSet 2 or Token Omega A83
Seat
Saddle
Selle Italia Model X
Seatpost
Faserwerk Wuthocker 400x27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.47 mm | 1.5 mm | 1.51 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Stack | 520 mm | 549 mm | 578 mm | 602 mm |
| Reach | 363 mm | 374 mm | 385 mm | 399 mm |
| Top Tube Length | 512 mm | 538 mm | 558 mm | 579 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 500 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 105 mm | 130 mm | 155 mm | 180 mm |
| Wheelbase | 1000 mm | 1006 mm | 1012 mm | 1030 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 741 mm | 765 mm | 789 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 170 cm | 177 cm | 188 cm |
| Rider Max Height | 172 cm | 180 cm | 190 cm | 200 cm |
About this model

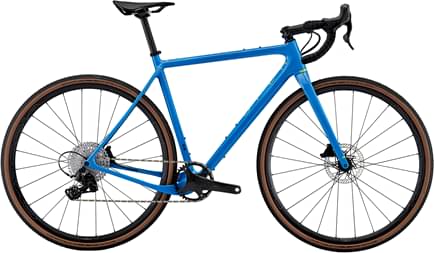

U.P. EKAR completes the Open Up model. OPEN launched 5 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
OPEN U.P. EKAR 2023 is the most economical model, with a starting price of 3999$. OPEN U.P. EKAR RAPHA Limited Edition 2023 on the other hand costs 4999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3999$. Comparing this to the average Gravel bike price, we see that the price is 62.43% higher.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the U.P. EKAR bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The U.P. EKAR comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 157 cm – 200 cm (5.15 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
