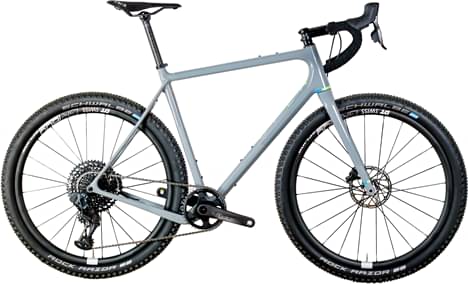

O.P.E.N. OPEN WI.DE. Force eTap AXS/Eagle AXS 2023
2023 Road
Estimate price |
4,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset XX1 Eagle AXS, Force eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
167cm - 180cm
LG
177cm - 190cm
XL
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WI.DE. Grey gloss/matte
Suspension Fork
OPEN U-Turn
Drivetrain
Rear Derailleur
SRAM Eagle XX1 AXS
Shift Levers
SRAM Force eTap AXS
Cassette
SRAM CS-1275, 10-50T
Crank
SRAM Force eTap AXS Carbon, 170mm (S), 172.5mm (M), 175mm (L & XL)
Bottom Bracket
SRAM DUB BB386
Chain
SRAM Eagle
Wheels
Rims
DT Swiss GR 1600 Spline, 700c or 650b
Tires
Schwalbe G-ONE Allround 45mm (700c) or 2.25” (650b)
Brakes
Brakes
SRAM Force eTap AXS, Rotors 160mm front & rear
Cockpit
Stem
Easton EA70, 80mm (S), 90mm (M), 100mm (L), 110mm (XL)
Handlebar
Easton EC70SL Carbon, 40cm (S), 42cm (M), 44cm (L & XL)
Headset
Cane Creek 40
Seat
Saddle
fi'zi:k Antares R7
Seatpost
Easton EC70 Carbon, 27.2 x 350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.53 mm | 1.55 mm | 1.56 mm | 1.58 mm |
| Bottom Bracket Height | 269 mm | 272 mm | 274 mm | 274 mm | 274 mm |
| Stack | 516 mm | 541 mm | 566 mm | 591 mm | 616 mm |
| Reach | 342 mm | 354 mm | 366 mm | 378 mm | 390 mm |
| Top Tube Length | 486 mm | 511 mm | 536 mm | 556 mm | 576 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 464 mm | 495 mm | 530 mm | 550 mm | 564 mm |
| Head Tube Angle | 68 ° | 69 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 99 mm | 125 mm | 150 mm | 170 mm | 196 mm |
| Wheelbase | 986 mm | 1000 mm | 1005 mm | 1018 mm | 1038 mm |
| Bottom Bracket Drop | 80 mm | 77 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 703 mm | 735 mm | 773 mm | 790 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 165 cm | 170 cm | 180 cm | 190 cm | 203 cm |
Model Overview
WI.DE. Force eTap AXS/Eagle AXS is an Open Wide model. OPEN released 7 bikes variations of this model so far. Take a sneak peek at all Open Wide bikes models from 2023, by clicking here.
Model range prices
OPEN WI.DE. Force eTap AXS/Eagle AXS 2023 is the most economical model, with a starting price of 4999$. OPEN WI.DE. Force eTap AXS/Eagle AXS ENVE 2023 on the other hand costs 5999$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, OPEN WI.DE. Force eTap AXS/Eagle AXS price was 4999$. If we compare this with the average Gravel bike cost we notice that the price is 103.05% more expensive.
WI.DE. Force eTap AXS/Eagle AXS components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, OPEN WI.DE. Force eTap AXS/Eagle AXS 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The WI.DE. Force eTap AXS/Eagle AXS has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
