Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Shimano -
Suspension Rigid -
Motor Shimano 250W 40Nm mid-drive -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 30 aluminum
Suspension Fork
Aluminum Tapered 1-1/2 to 1-1/8 inch
Drivetrain
Rear Derailleur
Shimano Altus Shadow
Front Derailleur
N/A
Shift Levers
Shimano Altus 9
Cassette
Shimano 11-32
Crank
Shimano STePS
Bottom Bracket
Shimano STePS E-5000
Chain
KMC E9S
Pedals
Wellgo flat
Wheels
Front Hub
Formula/Shimano
Rear Hub
Formula/Shimano
Rims
Alex EM23
Tires
Kenda Kwick Journey 700 x 42
Brakes
Brakes
Shimano BR-MT200 hydraulic disc
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Opus Silver
Handlebar
Opus Bronze 25 mm rise
Headset
FSA Orbit integrated sealed
Seat
Saddle
Opus E-Bike with handle
Seatpost
Opus Silver 30.9 x 350/300
Motor & Battery
Motor
Shimano STePS motor E-5000 250W 40Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.49 mm | 1.47 mm |
| Stack | 629 mm | 629 mm | 638 mm |
| Reach | 406 mm | 421 mm | 433 mm |
| Top Tube Length | 596 mm | 611 mm | 626 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 145 mm | 155 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 486 mm | 486 mm | 486 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

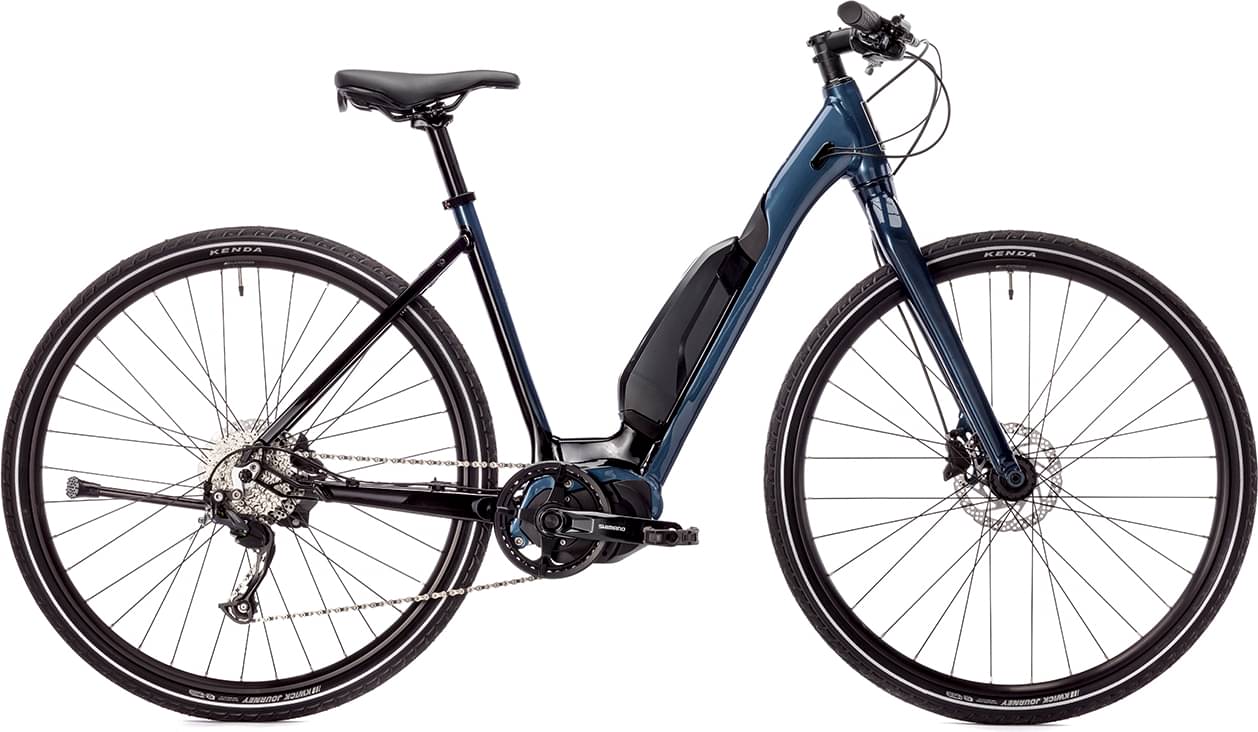

CONNECT is an Opus E Connect model. Opus released 8 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Comfort e-bikes
According to our calculations, the average cost of a Comfort e-bike that is reliable is 1957$. However, this doesn’t mean that if you spend less money on a Comfort e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Comfort e-bikes
Comfort e-bikes have an average weight of 24.41 kg (53.81 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, CONNECT has a weight of 19.14 kg (42.2 lbs). In conclusion, the average Comfort e-bike weighs 27.53% more than CONNECT.
Overview of components
Fork material
CONNECT has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the CONNECT model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CONNECT comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
CONNECT comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
