Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio, Shimano -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 30 aluminum
Suspension Fork
Aluminum tapered 1-1/2 to 1-1/8 in
Drivetrain
Rear Derailleur
Shimano Alivio 3100 Shadow
Front Derailleur
N/A
Shift Levers
Shimano Alivio 9
Cassette
Shimano 11-36
Crank
Shimano STePS
Bottom Bracket
Shimano STePS E-6100
Chain
KMC E9S
Pedals
FPD NW-247
Wheels
Front Hub
Formula/Shimano
Rear Hub
Formula/Shimano
Rims
Weinnman U32 TL
Tires
Kenda Kwick Seven.5 27.5 x 2.4
Brakes
Brakes
Shimano BR-MT201 hydraulic disc
Brake Levers
Shimano BL-MT201
Cockpit
Stem
Opus Silver
Handlebar
Opus Bronze 25 mm rise
Headset
FSA Orbit integrated sealed
Seat
Saddle
Opus E-CITY
Seatpost
Redshift A Suspension
Motor & Battery
Motor
Shimano STePS motor E-6100 250W 60Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.5 mm | 1.47 mm |
| Stack | 571 mm | 586 mm | 606 mm |
| Reach | 371 mm | 391 mm | 411 mm |
| Top Tube Length | 536 mm | 566 mm | 597 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Bottom Bracket Drop | 65 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

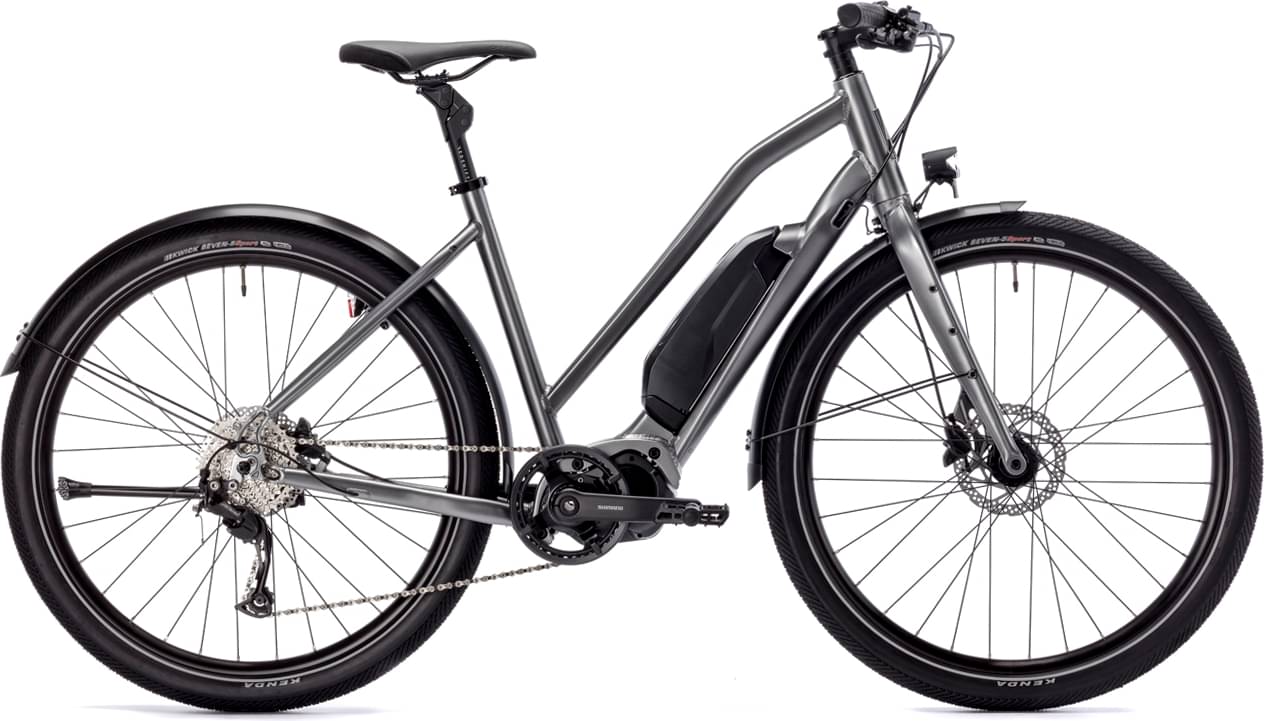

EBIG CITY + ST is part of the Opus E Ebig model. There are 10 e-bikes that carry this model name. You can easily view all of the Opus E Ebig e-bikes models from 2022, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, EBIG CITY + ST has a weight of 20.18 kg (44.49 lbs). To sum up, it’s 24.88% lighter than the average weight of Commuter e-bikes.
EBIG CITY + ST components
Fork material
EBIG CITY + ST has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the EBIG CITY + ST model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Opus EBIG CITY + ST is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
