Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 30 aluminum
Suspension Fork
Full carbon tapered 1-1/2 to 1-1/8 in
Drivetrain
Rear Derailleur
SRAM APEX 1 long cage
Front Derailleur
N/A
Shift Levers
SRAM APEX 1x11
Cassette
SRAM PG1130 11-42
Crank
SRAM Apex 1
Bottom Bracket
SRAM GXP sealed BSC threaded
Chain
SRAM PC1110
Pedals
N/A
Wheels
Front Hub
Alex Bear Pawls through axle 12 mm fr/rr
Rear Hub
Alex Bear Pawls through axle 12 mm fr/rr
Rims
Weinmann U28TL 650
Tires
Kenda Flintridge Sport 650 x 45 CSK
Brakes
Brakes
Promax Decode R Flat Mount twin piston disc
Brake Levers
SRAM
Cockpit
Stem
Promax
Handlebar
X-Race Aero 16° flare
Headset
FSA Orbit integrated sealed
Seat
Saddle
Opus Endurance
Seatpost
Promax alloy 27.2 x 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.51 mm | 1.54 mm | 1.56 mm | 1.58 mm |
| Stack | 552 mm | 571 mm | 589 mm | 609 mm | 629 mm |
| Reach | 375 mm | 379 mm | 383 mm | 391 mm | 399 mm |
| Top Tube Length | 529 mm | 543 mm | 558 mm | 577 mm | 598 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 133 mm | 153 mm | 173 mm | 193 mm | 213 mm |
| Chainstay Length | 424 mm | 426 mm | 426 mm | 428 mm | 428 mm |
| Bottom Bracket Drop | 78 mm | 76 mm | 74 mm | 73 mm | 72 mm |
| Standover Height | 742 mm | 765 mm | 790 mm | 817 mm | 846 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

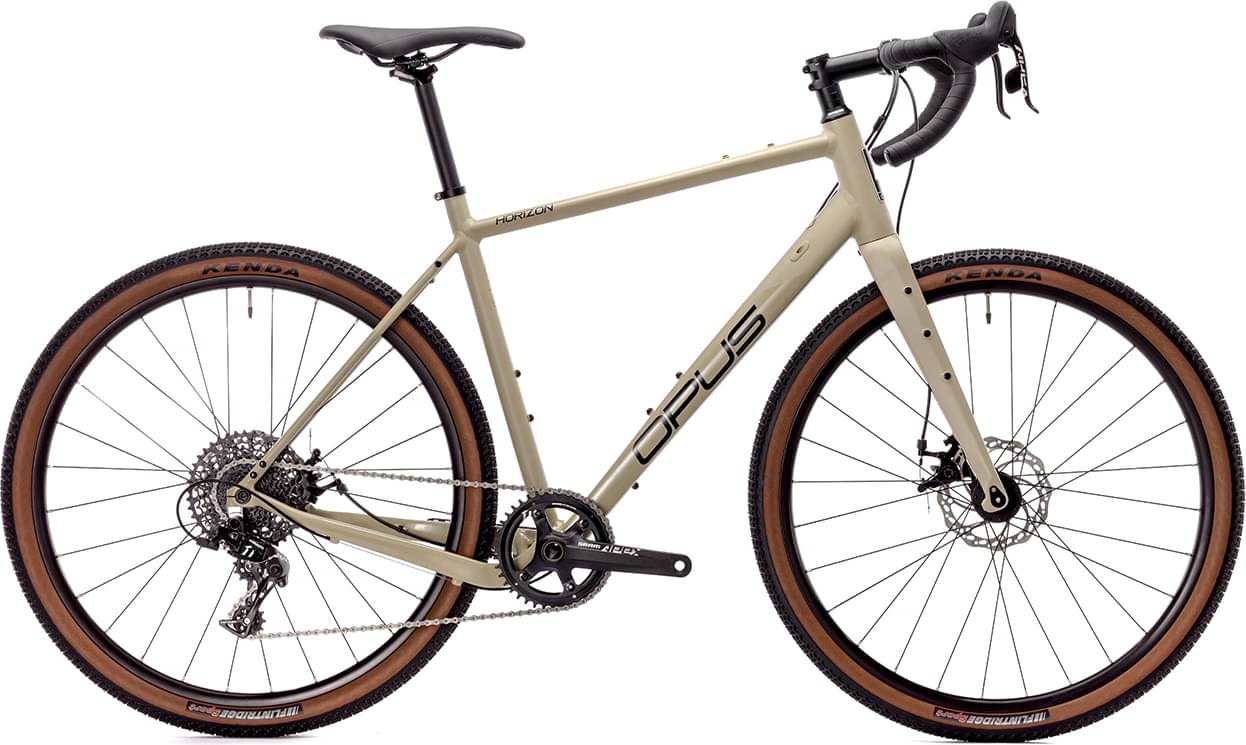

HORIZON AL APEX 1 650 belongs to the Opus Horizon model. 13 bikes variations carry this model name so far. Take a sneak peek at all Opus Horizon bikes models from 2022, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 10.16 kg (22.4 lbs), Opus bike is much heavier than average. To sum up, it’s 24.97% heavier than the average weight of Gravel bikes.
HORIZON AL APEX 1 650 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the HORIZON AL APEX 1 650 model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Opus HORIZON AL APEX 1 650 has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
