Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris, FSA -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 30 aluminum
Suspension Fork
Full carbon tapered 1-1/2 to 1-1/8 in
Drivetrain
Rear Derailleur
Shimano Claris R2000
Front Derailleur
Shimano Claris R2000
Shift Levers
Shimano Claris R2000 2x8
Cassette
Shimano 11-32
Crank
FSA Tempo Adventure
Bottom Bracket
FSA sealed BSC threaded
Chain
KMC Z8.3
Pedals
N/A
Wheels
Front Hub
Alex Bear Pawls through axle 12 mm fr/rr
Rear Hub
Alex Bear Pawls through axle 12 mm fr/rr
Rims
Weinmann U28TL
Tires
Kenda Flintridge Sport 700 x 35
Brakes
Brakes
Promax Decode R Flat Mount twin piston disc
Brake Levers
Shimano
Cockpit
Stem
Promax
Handlebar
X-Race Aero 16° flare
Headset
FSA Orbit integrated sealed
Seat
Saddle
Opus Endurance
Seatpost
Promax alloy 27.2 x 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.51 mm | 1.54 mm | 1.56 mm | 1.58 mm |
| Bottom Bracket Height | 271 mm | 273 mm | 275 mm | 276 mm | 277 mm |
| Stack | 552 mm | 571 mm | 589 mm | 609 mm | 629 mm |
| Reach | 375 mm | 379 mm | 383 mm | 391 mm | 399 mm |
| Top Tube Length | 529 mm | 543 mm | 558 mm | 577 mm | 598 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 133 mm | 153 mm | 173 mm | 193 mm | 213 mm |
| Chainstay Length | 424 mm | 426 mm | 426 mm | 428 mm | 428 mm |
| Bottom Bracket Drop | 78 mm | 76 mm | 74 mm | 73 mm | 72 mm |
| Standover Height | 742 mm | 765 mm | 790 mm | 817 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

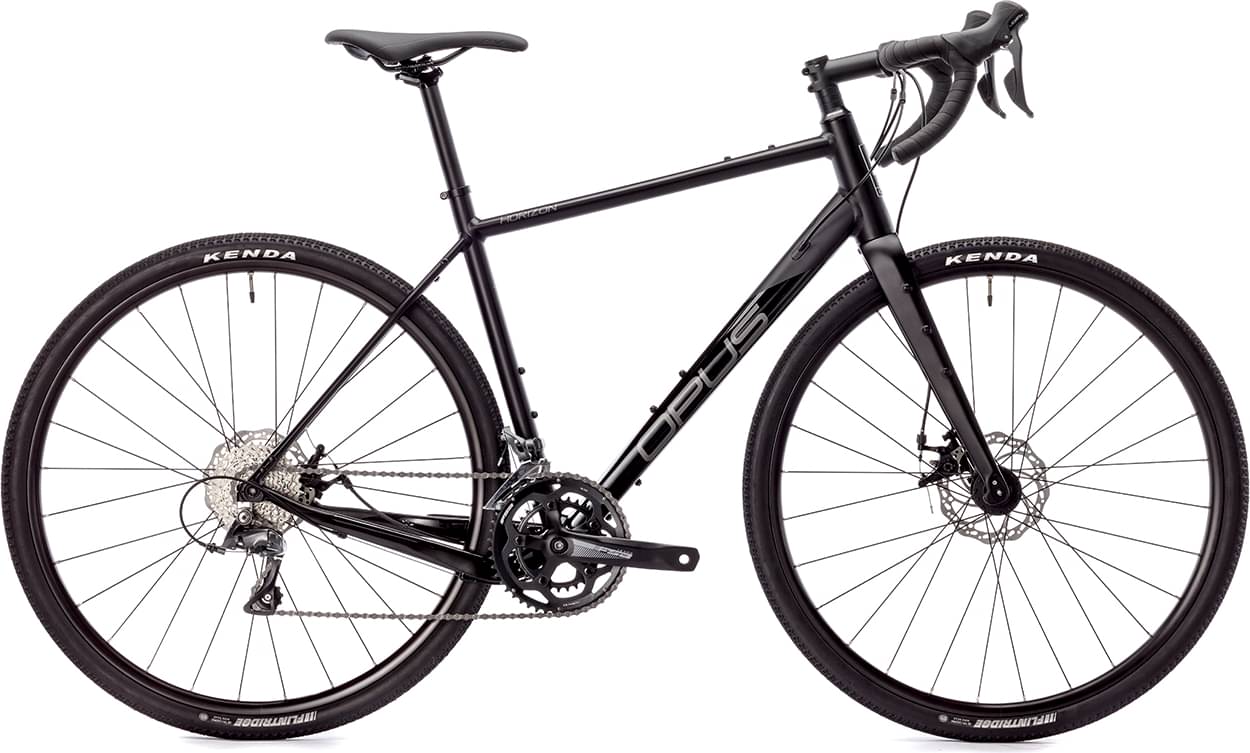

HORIZON AL CLARIS is an Opus Horizon model. There are 13 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 10.7 kg (23.59 lbs), the HORIZON AL CLARIS model is much heavier than average. To sum up, it’s 31.61% heavier than the average weight of Gravel bikes.
HORIZON AL CLARIS components
Fork material
HORIZON AL CLARIS has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the HORIZON AL CLARIS model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Opus HORIZON AL CLARIS is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Opus HORIZON AL CLARIS bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
