Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 30 aluminum
Suspension Fork
Steel tapered 1-1/2 to 1-1/8 in
Drivetrain
Rear Derailleur
Shimano Claris R2000
Front Derailleur
Shimano Claris R2000
Shift Levers
Shimano Claris R2000 2x8
Cassette
Shimano 11-32
Crank
Prowheel RPL-421
Bottom Bracket
Sealed BSC threaded
Chain
KMC Z8.3
Pedals
N/A
Wheels
Front Hub
Alex Bear Pawls QR fr/rr
Rear Hub
Alex Bear Pawls QR fr/rr
Rims
Weinmann U28
Tires
Kenda Flintridge Sport 700 x 35
Brakes
Brakes
Tektro MD-310 Flat Mount mechanical disc
Brake Levers
Shimano
Cockpit
Stem
Promax
Handlebar
Alloy 16° flare
Headset
FSA Orbit integrated sealed
Seat
Saddle
Opus Endurance
Seatpost
Promax alloy 27.2 x 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.51 mm | 1.54 mm | 1.56 mm | 1.58 mm |
| Bottom Bracket Height | 271 mm | 273 mm | 275 mm | 276 mm | 277 mm |
| Stack | 552 mm | 571 mm | 589 mm | 609 mm | 629 mm |
| Reach | 375 mm | 379 mm | 383 mm | 391 mm | 399 mm |
| Top Tube Length | 529 mm | 543 mm | 558 mm | 577 mm | 598 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 118 mm | 138 mm | 158 mm | 178 mm | 198 mm |
| Chainstay Length | 424 mm | 426 mm | 426 mm | 428 mm | 428 mm |
| Bottom Bracket Drop | 78 mm | 76 mm | 74 mm | 73 mm | 72 mm |
| Standover Height | 742 mm | 765 mm | 790 mm | 817 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

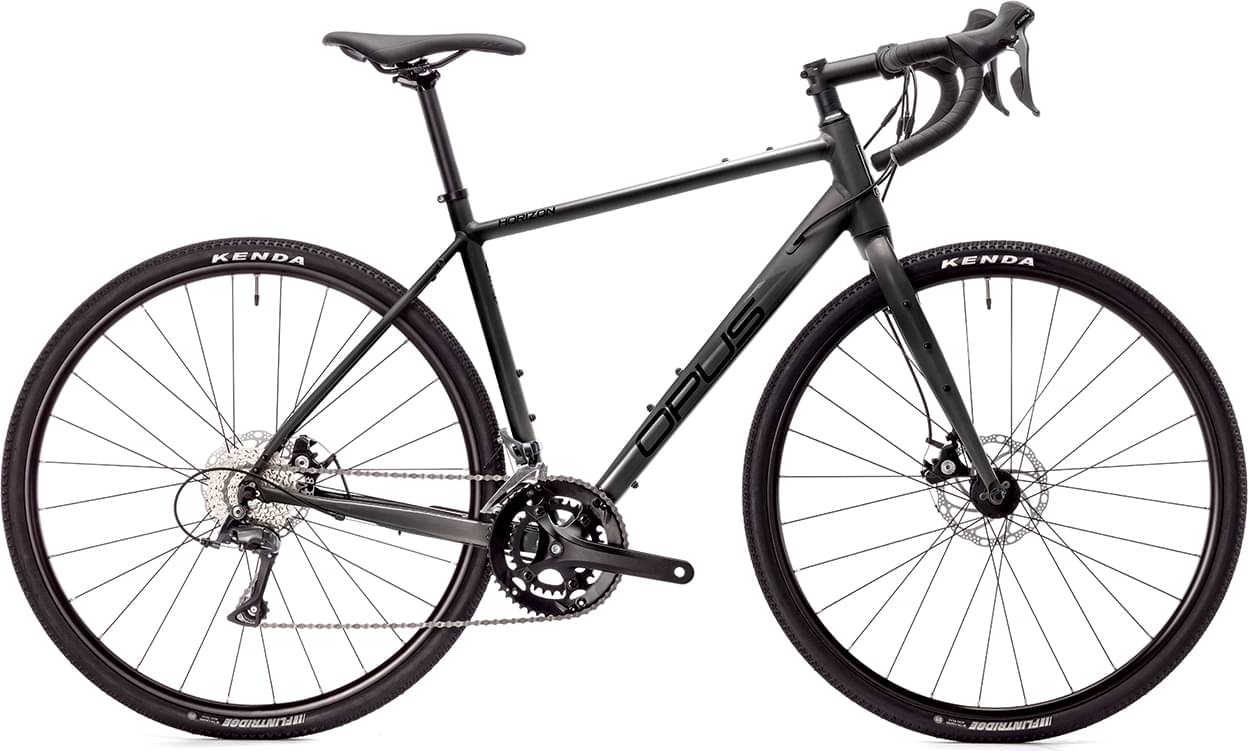

HORIZON AL CLARIS QR completes the Opus Horizon model. Opus released 13 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Gravel bikes average weight
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, HORIZON AL CLARIS QR has a weight of 12.07 kg (26.61 lbs). In other words, this model is 48.46% heavier than the average Gravel bike.
Overview of components
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
As for the wheels, Opus HORIZON AL CLARIS QR 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The HORIZON AL CLARIS QR has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
