Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 200mm -
Fork Fox Factory Float 40
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 40 Factory, GRIP2 damper
Rear Shock
FOX X2 FLOAT Factory, 250mm x 75mm
Drivetrain
Rear Derailleur
SRAM X01 DH, 7-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 DH, 7-speed
Cassette
SRAM XG-795 DH, 7-speed, 10-24 tooth
Crank
SRAM X01 DH DUB
Bottom Bracket
SRAM DUB, 83mm
Chain
SRAM PC1110, 11-speed
Chain Guide
MRP G4
Pedals
None, Option: Burgtec MK4 Composite
Wheels
Front Hub
Hope Tech Pro 4 DH
Rear Hub
Hope Tech Pro 4 DH
Rims
Stan's NoTubes Flow MK3
Tires
Schwalbe Magic Mary, Super Gravity, 27.5" x 2.35"
Brakes
Brakes
Shimano Saint, 203mm rotors, Option: Hope Tech 3 E4, 203mm rotors
Brake Levers
Shimano Saint, Option: Hope Tech 3 E4
Cockpit
Stem
Renthal Integra, 35mm clamp, 50mm length
Handlebar
Renthal Fatbar, 35mm bore, 800mm width
Grips
Strange 130, single lock-on, black
Headset
Hope Tech, ZS49/28.6 upper, ZS49/30 lower, for 1.125" steerer
Seat
Saddle
SDG I-Fly I-Beam
Seatpost
SDG I-Beam Aluminium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 628 mm | 628 mm | 628 mm | 628 mm |
| Reach | 419 mm | 439 mm | 453 mm | 473 mm |
| Top Tube Length | 571 mm | 590 mm | 604 mm | 623 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 381 mm | 432 mm | 432 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1238 mm | 1259 mm | 1273 mm | 1293 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 723 mm | 723 mm | 738 mm | 738 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

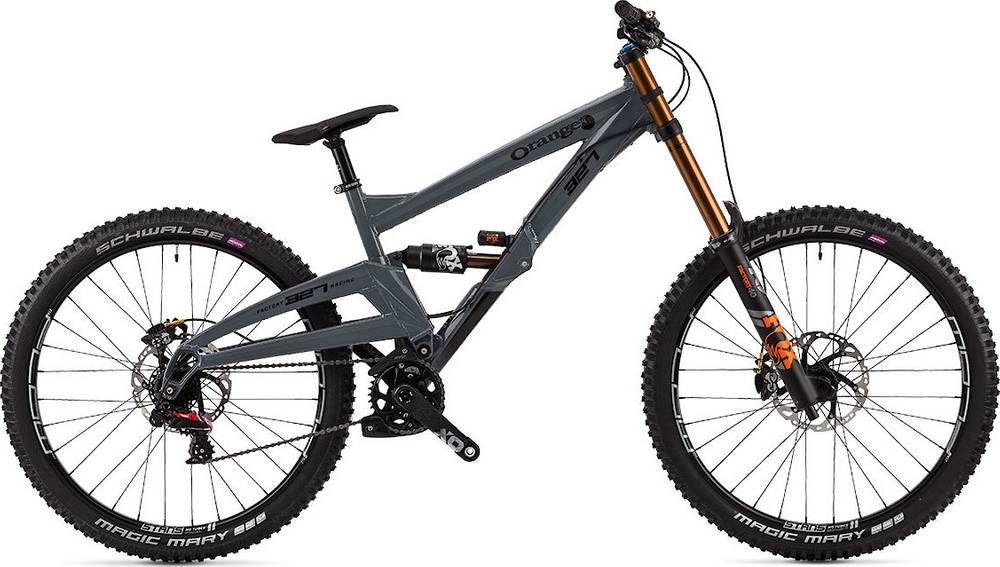

About this model
327 Factory is an Orange 327 model. There are 4 bikes that carry this model name. Take a sneak peek at all Orange 327 bikes models from 2020, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
327 Factory components
Fork
Orange 327 Factory 2020 bike is equipped with the Fox Factory Float 40 fork, and has 203mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX X2 FLOAT Factory, with a travel distance of 200mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Orange 327 Factory 2020, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Orange 327 Factory bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
