Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Yari RC
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8020, integrated -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Yari RC
Rear Shock
RockShox Monarch Plus R DB, 216x63mm
Drivetrain
Rear Derailleur
Shimano SLX Shadow Plus, 11-speed
Front Derailleur
None
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano SLX, 11-speed, 11-46 tooth
Crank
Shimano E8050
Chain
Shimano HG-X, 11-speed
Chain Guide
Shimano CDE80
Pedals
None
Wheels
Front Hub
Front: Joytech, Rear: Hope Pro 4
Rear Hub
Front: Joytech, Rear: Hope Pro 4
Rims
Kore Realm 3.0
Tires
Maxxis Minion DHR II 2.4", EXO, TR
Brakes
Brakes
Shimano MT500, 203mm rotors
Brake Levers
Shimano MT500
Cockpit
Stem
Kore Cubix, 35mm
Handlebar
Kore Durox, 35mm diameter, 780mm
Grips
Strange 130 Lock-on
Headset
Cane Creek 49mm
Seat
Saddle
Kore Conex
Seatpost
Kore Dropper, 150mm
Motor & Battery
Motor
Shimano E8000
Battery
Shimano E8020, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Stack | 625.4 mm | 625.4 mm | 628.4 mm |
| Reach | 450.4 mm | 469.4 mm | 487.4 mm |
| Top Tube Length | 626.4 mm | 646.4 mm | 666.4 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406.4 mm | 431.8 mm | 457.2 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1217 mm | 1236 mm | 1257 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm |
| Standover Height | 744 mm | 751 mm | 764 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

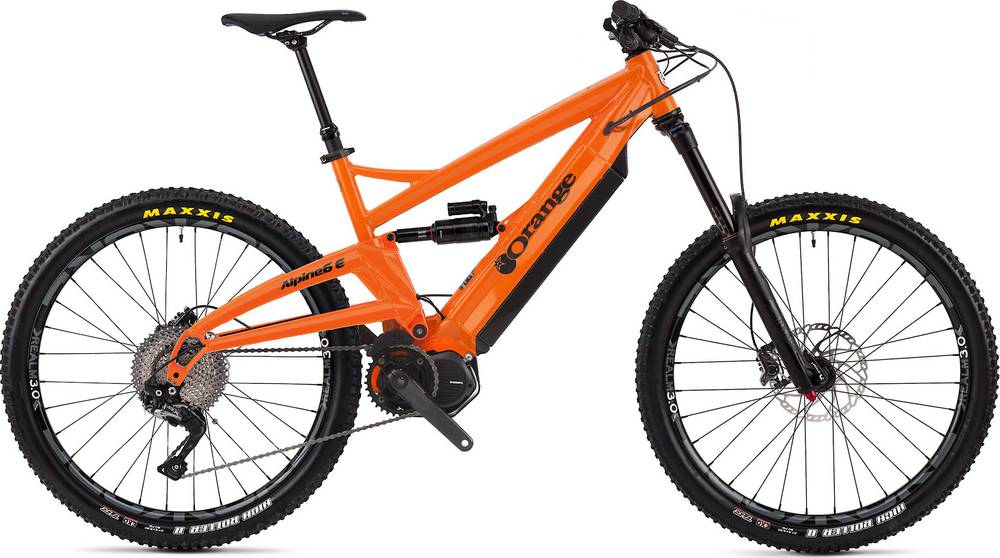

Alpine 6 E S completes the Orange E Alpine model. Orange released 4 e-bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Alpine 6 E S components
Fork
The fork installed on this bike is the RockShox Yari RC model. The travel on this model is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Orange Alpine 6 E S e-bike has the RockShox Monarch Plus R DB model installed, and has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Alpine 6 E S 2019 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Alpine 6 E S has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
Orange Alpine 6 E S includes a dropper post. Therefore, climbing or descending will be a breeze.
