Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Performance 36 Float
Rear Shock
FOX Float DPX2 Performance, 216mm x 63mm
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano SLX, 11 x 46 tooth, 11-speed
Crank
Race Face Aeffect, direct mount
Bottom Bracket
Race Face, 73mm
Chain
SRAM PC1110
Chain Guide
None included
Pedals
None included
Wheels
Front Hub
JoyTech
Rear Hub
JoyTech
Rims
Kore Realm 3.0, 32 hole
Tires
Maxxis Minion DHR II Exo TR, 2.4"
Brakes
Brakes
Shimano SLX with 203mm front/180mm rear rotors
Brake Levers
Shimano SLX
Cockpit
Stem
Race Face Chester M35, 40mm
Handlebar
Race Face Chester Stealth, 780mm width
Grips
Strange 130, single lock-on, black
Headset
Cane Creek 49mm
Seat
Saddle
Kore Conex
Seatpost
Race Face Aeffect dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.46 mm | 1.4 mm | 1.35 mm | 1.32 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| Stack | 598 mm | 616 mm | 616 mm | 620 mm | 629 mm |
| Reach | 407 mm | 421 mm | 441 mm | 459 mm | 476 mm |
| Top Tube Length | 578 mm | 598 mm | 618 mm | 638 mm | 658 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 406.4 mm | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 120 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1166 mm | 1188 mm | 1208 mm | 1229 mm | 1251 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 711 mm | 728 mm | 743 mm | 756 mm | 790 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

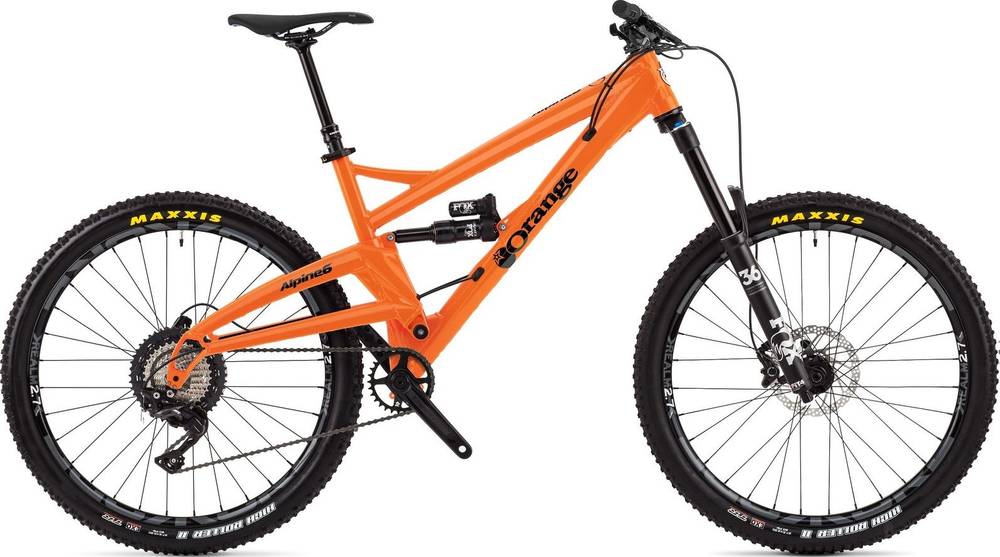

Alpine 6 Pro belongs to the Orange Alpine model. Orange launched 24 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is FOX Float DPX2 Performance, with a travel distance of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Alpine 6 Pro model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orange Alpine 6 Pro is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Orange Alpine 6 Pro includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
