Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Factory 36, Kashima coating
Rear Shock
FOX Float X2 Factory, 216x63mm
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed
Front Derailleur
None
Shift Levers
Shimano XTR, 12-speed
Cassette
Shimano XTR, 12-speed, 10-51 tooth
Crank
Shimano XTR
Bottom Bracket
Shimano Hollow Tech II
Chain
Shimano XTR
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano XTR
Rear Hub
Shimano XTR
Rims
Stan's Flow Mk3
Tires
Front: Maxxis Minion DHF 2.5", 3C, EXO, TR, Rear: Maxxis Minion DHRII 2.4", EXO, TR
Brakes
Brakes
Front: Shimano XTR, 203mm rotor, Rear: Shimano XTR, 180mm rotor
Brake Levers
Shimano XTR
Cockpit
Stem
Burgtec MK2 Enduro, black, 35mm
Handlebar
Burgtec RideWide Carbon, 800mm, 35mm diameter
Grips
Strange 130 Lock-on
Headset
Hope 49mm
Seat
Saddle
SDG Radar, cromo rail, black
Seatpost
FOX Factory Transfer 150mm, Kashima coating
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.46 mm | 1.4 mm | 1.35 mm | 1.32 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| Stack | 598 mm | 616 mm | 616 mm | 620 mm | 629 mm |
| Reach | 407 mm | 421 mm | 441 mm | 459 mm | 476 mm |
| Top Tube Length | 578 mm | 598 mm | 618 mm | 638 mm | 658 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 406.4 mm | 431.8 mm | 475.2 mm | 508 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 120 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1166 mm | 1188 mm | 1208 mm | 1229 mm | 1251 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 711 mm | 728 mm | 743 mm | 756 mm | 790 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

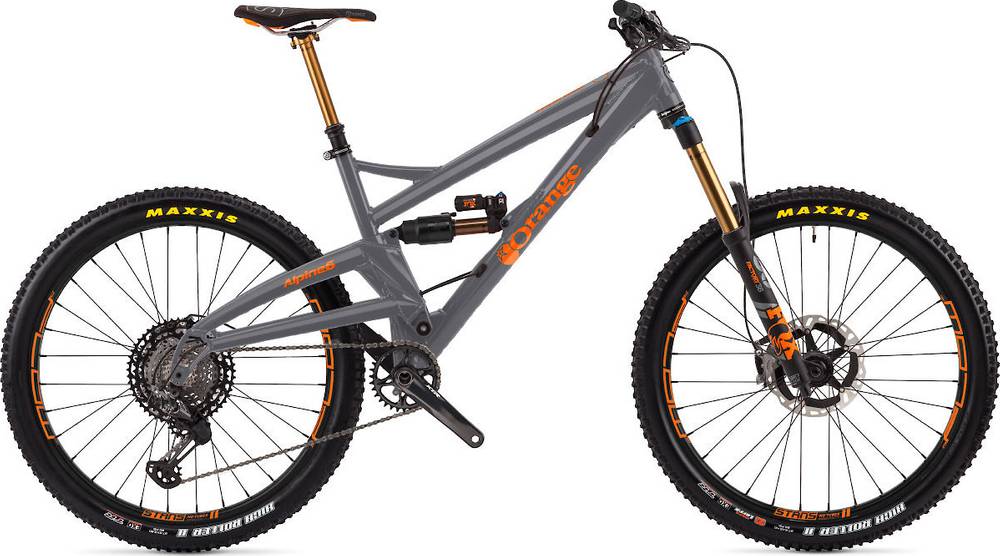

Model Overview
Alpine 6 XTR belongs to the Orange Alpine model. 24 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
Orange Alpine 6 XTR 2019 bike is equipped with the Fox Factory Float 36 fork, and has 170mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the FOX Float X2 Factory model, with a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Alpine 6 XTR bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Orange Alpine 6 XTR includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
