Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Factory Float 36
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS E8035, integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 FLOAT Factory, 44mm offset
Rear Shock
FOX DPX2 FLOAT Factory, 230mm x 57.5mm
Drivetrain
Rear Derailleur
Shimano XT, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano XT, 12-speed
Cassette
Shimano XT, 12-speed, 10-51 tooth
Crank
Shimano E8050
Chain
Shimano XT, 12-speed
Chain Guide
MRP 1x E-Bike
Pedals
None, Option: Burgtec MK4 Composite
Wheels
Front Hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear
Rims
Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO+, 27.5" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 27.5" x 2.4"
Brakes
Brakes
Shimano XT Trail, 203mm rotors, Option: Hope Tech 3 E4, 203mm rotors
Brake Levers
Shimano XT Trail, Option: Hope Tech 3 E4,
Cockpit
Stem
Hope Tech, 35mm clamp, 35mm length
Handlebar
Renthal Fatbar, 800mm width, 35mm bore
Grips
Strange 130, single lock-on, black
Headset
Hope Tech, ZS49/28.6 upper, EC49/40 lower, for tapered steerer
Seat
Saddle
SDG Radar, steel rails, black/black
Seatpost
FOX Transfer Factory dropper, 150mm or 170mm drop
Motor & Battery
Motor
Shimano STEPS E8000, 70Nm max torque
Battery
Shimano STEPS E8035, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Stack | 606 mm | 615 mm | 624 mm |
| Reach | 460 mm | 478 mm | 495 mm |
| Top Tube Length | 638 mm | 658 mm | 678 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1236 mm | 1258 mm | 1279 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Standover Height | 723 mm | 747 mm | 773 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

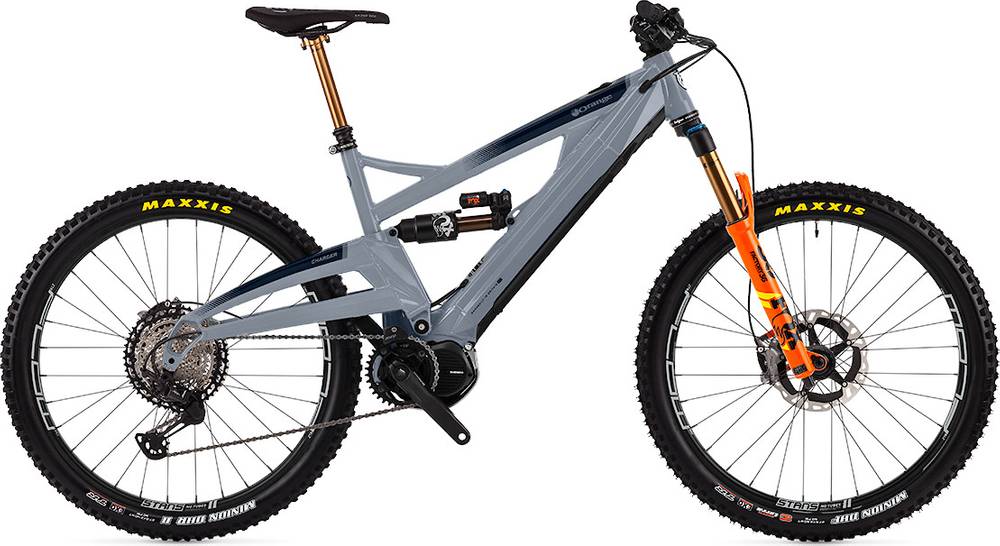

Charger Factory completes the Orange E Charger model. Orange released 7 e-bikes variations of this model so far. Take a sneak peek at all Orange E Charger e-bikes models from 2020, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the FOX DPX2 FLOAT Factory model, with a travel of 145mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Orange Charger Factory 2020, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Charger Factory comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Orange Charger Factory e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Orange Charger Factory comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
