Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 145mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS E8035, integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike Ultimate, 44mm offset, Option: FOX 36 FLOAT Factory
Rear Shock
RockShox Super Deluxe Ultimate, 230mm x 57.5mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed, Single Click
Cassette
SRAM NX Eagle PG1230, 12-speed, 11-50 tooth
Crank
Shimano E8050
Chain
SRAM NX Eagle, 12-speed
Chain Guide
Shimano CDE80, Option: MRP 1x E-Bike
Pedals
None, Option: Burgtec MK4 Composite
Wheels
Front Hub
Hope Pro 4, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
Hope Pro 4, 110x15mm Boost front, 148x12mm Boost rear
Rims
e*thirteen TRS, 30mm inner width, Option: Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO+, 27.5" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 27.5" x 2.4"
Brakes
Brakes
Shimano XT Trail, 203mm rotors, Option: Hope Tech 3 E4, 203mm rotors
Brake Levers
Shimano XT Trail, Option: Hope Tech 3 E4,
Cockpit
Stem
Hope Tech, 35mm clamp, 35mm length
Handlebar
Renthal Fatbar, 800mm width, 35mm bore
Grips
Strange 130, single lock-on, black
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower, for tapered steerer, Option: Hope Tech
Seat
Saddle
SDG Radar, steel rails, black/black
Seatpost
FOX Transfer Performance Elite dropper, 150mm drop, Option: FOX Transfer Factory dropper, 150mm or 170mm drop
Motor & Battery
Motor
Shimano STEPS E8000, 70Nm max torque
Battery
Shimano STEPS E8035, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Stack | 606 mm | 615 mm | 624 mm |
| Reach | 460 mm | 478 mm | 495 mm |
| Top Tube Length | 638 mm | 658 mm | 678 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1236 mm | 1258 mm | 1279 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Standover Height | 723 mm | 747 mm | 773 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

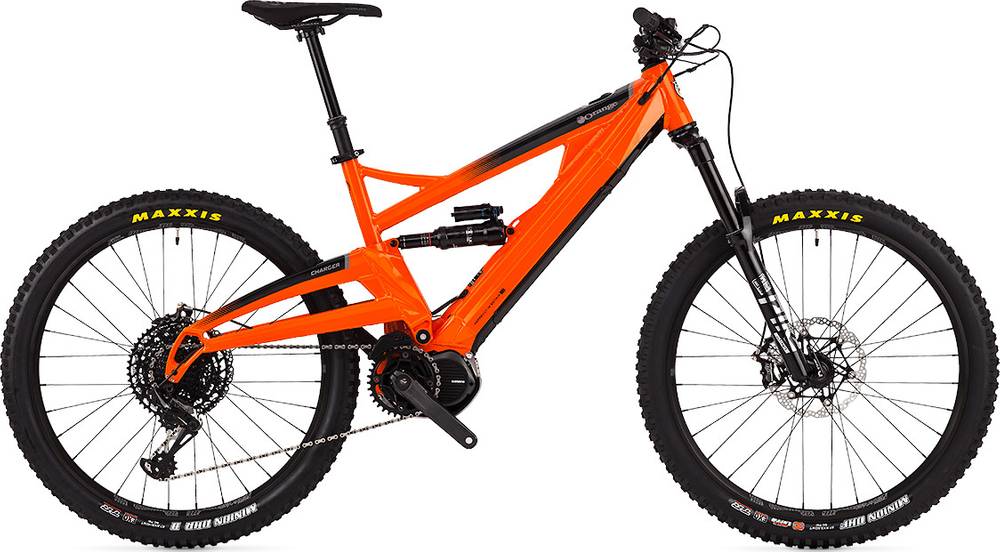

Charger RS is part of the Orange E Charger model. There are 7 e-bikes that carry this model name. You can easily view all of the Orange E Charger e-bikes models from 2020, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
This e-bike has the RockShox Pike Ultimate fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Ultimate rear shock model, which has a travel of 145mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Charger RS 2020 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orange Charger RS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Orange model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
