Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle, Shimano -
Suspension Full -
Motor Shimano mid-drive -
Battery Shimano E806 630wh Integrated battery Gen 2 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 145.
Suspension Fork
RockShox 35 Silver TK 160mm 27.5
Rear Shock
RockShox Super Deluxe Select 230x57.5
Drivetrain
Rear Derailleur
SRAM SX Eagle 12spd
Shift Levers
SRAM SX Eagle - Single Click
Cassette
SRAM SX 1210 11-50T Eagle
Crank
Shimano M600 165 E 34t
Bottom Bracket
Shimano EP8 DU Integrated
Chain
SRAM NX Eagle
Wheels
Rims
Strange Front + Hope Pro 4 Rear, E13 LG1 EN 27.5
Tires
Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 27.5
Brakes
Brakes
SRAM Guide RE 200/200
Cockpit
Stem
Race Face Chester M35 x 40mm
Handlebar
RaceFace Chester 780mm M35
Grips
Strange 130 Single Lock-On Black
Headset
Acros 49mm Blocklock for Tapered Steerer
Seat
Saddle
WTB Silverado SL
Seatpost
KS Ragei 150/170mm Drop
Motor & Battery
Motor
Shimano EP801
Battery
Shimano E806 630wh Integrated battery Gen 2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.28 mm | 1.24 mm | 1.21 mm | 1.19 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 808 mm | 828 mm | 850 mm | 873 mm |
| Rake | 37 mm | 38 mm | 38 mm | 38 mm |
| Trail | 132 mm | 131 mm | 131 mm | 131 mm |
| Stack | 620 mm | 620 mm | 629 mm | 638 mm |
| Reach | 483 mm | 502 mm | 520 mm | 538 mm |
| Top Tube Length | 626 mm | 646 mm | 666 mm | 686 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1254 mm | 1274 mm | 1296 mm | 1319 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 726 mm | 740 mm | 754 mm | 780 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

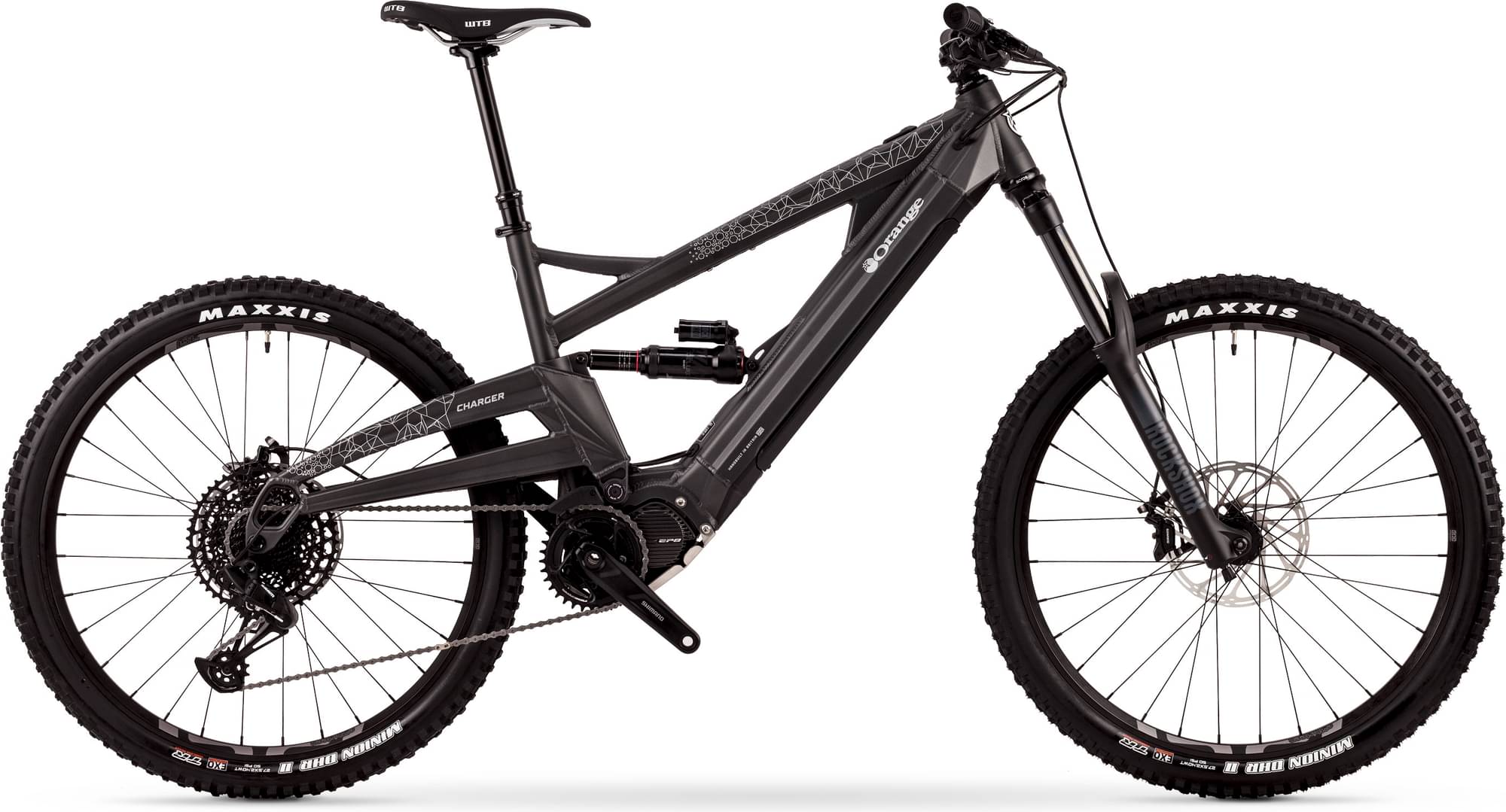

Charger S is part of the Orange E Charger model. Orange launched 11 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Orange Charger S 2023 is the most economical model, with a starting price of 8365$. Orange Charger Factory 2023 on the other hand costs 10801$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 8365$. Comparing the average cost of an Enduro e-bike to this one, you will see that Charger S price is 74.82% higher.
Charger S components
Fork
The Charger S comes factory-installed with the RockShox 35 Silver fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Super Deluxe Select 230×57.5, with a travel distance of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Charger S model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Charger S has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Orange model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
