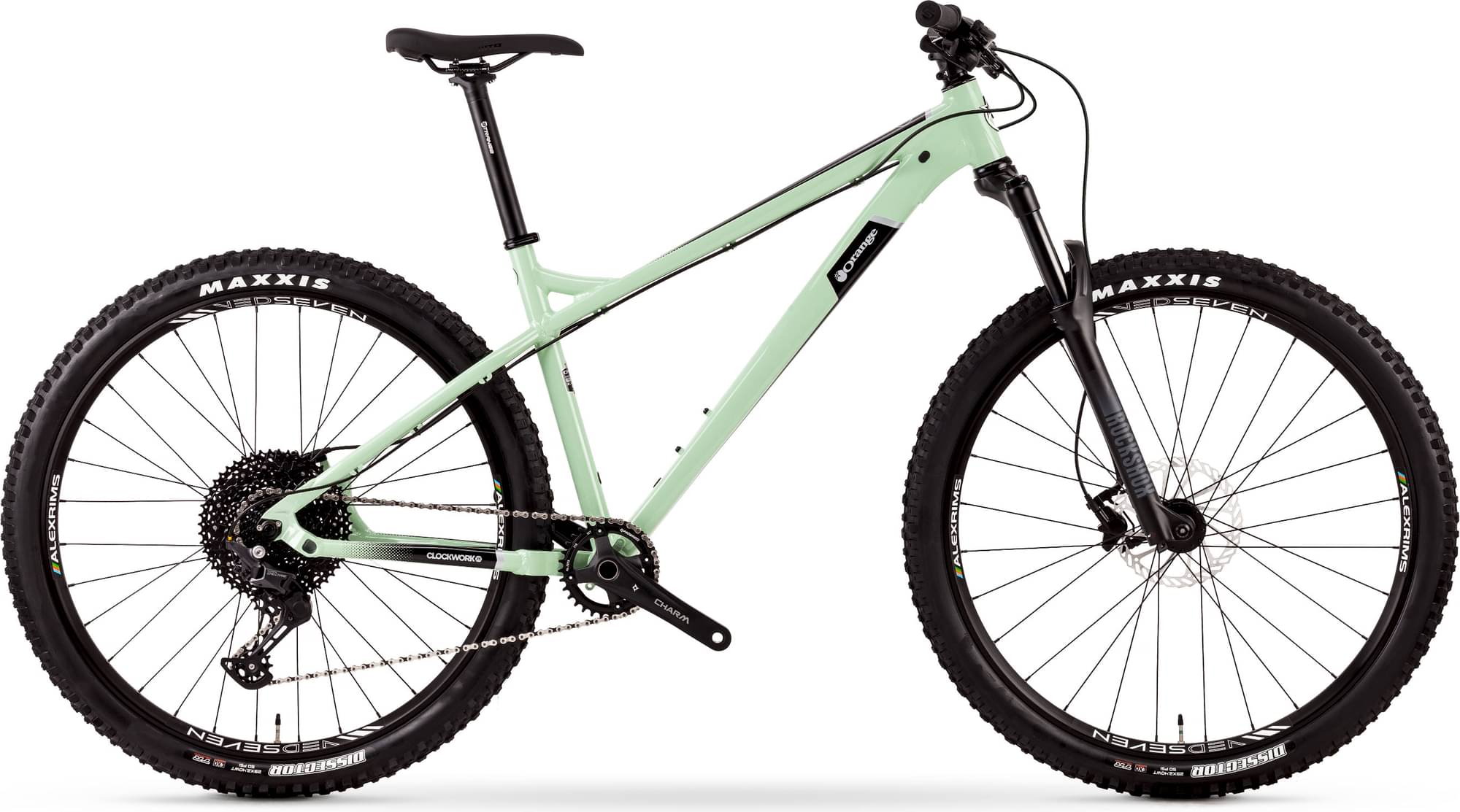

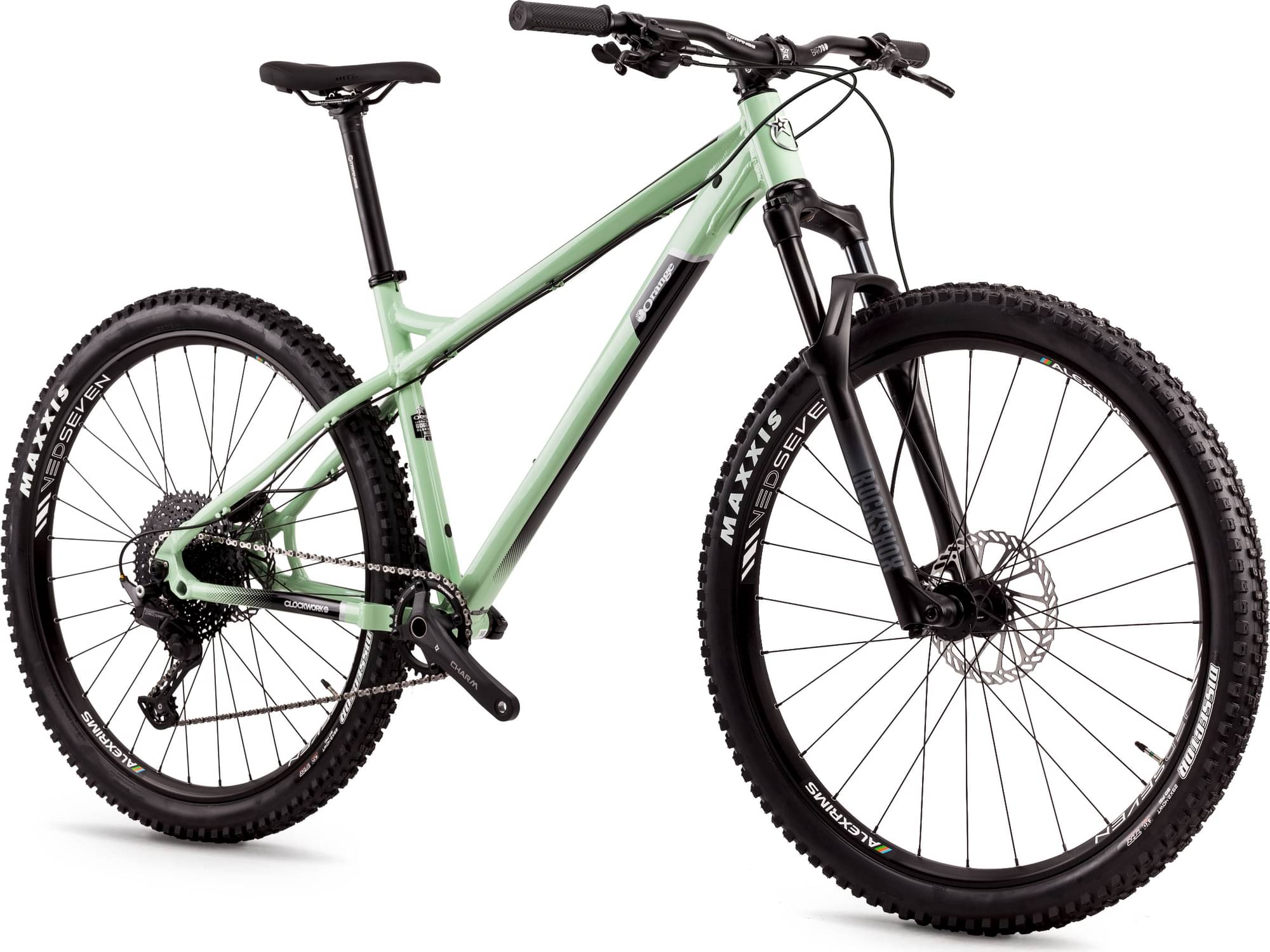

Orange Clockwork 29 comp 2023
2023 Mountain
Estimate price |
2,676$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.
Suspension Fork
RockShox Judy Silver TK 120mm 29
Drivetrain
Rear Derailleur
Shimano Deore 11spd
Shift Levers
Shimano Deore 11spd
Cassette
Sunrace CSMS7 11-51t 11spd
Crank
Strange Prowheel Charm 170mm Narrow Wide 32t
Bottom Bracket
Prowheel
Chain
KMC 11spd
Wheels
Rims
Alex VED7B 29
Tires
Maxxis dissector 2.4 29
Brakes
Brakes
Clarks M2 180/160
Cockpit
Stem
Strange Stalk 40mm
Handlebar
Strange 1" Rise 780mm
Grips
Strange Grappler Lock-On
Headset
FPD 44mm For Tapered Steerer
Seat
Saddle
WTB Volt Steel
Seatpost
Strange Post 400 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.36 mm |
| Bottom Bracket Height | 442 mm | 442 mm | 442 mm |
| Front Center | 756 mm | 775 mm | 797 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 154 mm | 155 mm | 155 mm |
| Stack | 644 mm | 644 mm | 653 mm |
| Reach | 443 mm | 463 mm | 481 mm |
| Top Tube Length | 628 mm | 648 mm | 668 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 457 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1196 mm | 1215 mm | 1237 mm |
| Bottom Bracket Drop | -68 mm | -68 mm | -68 mm |
| Standover Height | 685 mm | 704 mm | 743 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
Clockwork 29 comp is part of the Orange Clockwork model. Orange released 18 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Orange Clockwork 29 2023 is the most affordable bike of this model and has a price of 2224$. On the other hand, Orange Clockwork 29 comp 2023, is the most expensive and costs 2436$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 2436$. Doing a quick comparison, we notice that Clockwork 29 comp price is 13.38% smaller than the average cost of a Trail bike.
Overview of components
Fork
The RockShox Judy Silver TK is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Clockwork 29 comp 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Clockwork 29 comp comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Clockwork 29 comp comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
