Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Revelation RC
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Revelation, 46mm offset, 110x15mm Boost thru-axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle PG1210, 12-speed, 11-50 tooth
Crank
SRAM SX Eagle DUB
Bottom Bracket
SRAM DUB, 73mm
Chain
SRAM SX Eagle, 12-speed
Chain Guide
None, Option: MRP 1x
Pedals
None, Option: Burgtec MK4 Composite
Wheels
Front Hub
Strange, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
Strange, 110x15mm Boost front, 148x12mm Boost rear
Rims
WTB ST Light i30, 30mm internal width
Tires
Front: WTB Vigilante, 29" x 2.5", Rear: WTB Trail Boss, 29" x 2.4"
Brakes
Brakes
Shimano MT500, 180mm rotors
Brake Levers
Shimano MT500
Cockpit
Stem
Race Face Chester, 35mm clamp, 40mm length
Handlebar
Race Face Chester Stealth, 780mm width, 35mm bore
Grips
Strange 130, single lock-on, black
Headset
FPD, ZS44/28.6 upper, EC44/40 lower, for tapered steerer
Seat
Saddle
WTB Silverado Comp
Seatpost
SDG Tellis dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.36 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm |
| Stack | 644 mm | 644 mm | 653 mm |
| Reach | 443 mm | 463 mm | 481 mm |
| Top Tube Length | 628 mm | 648 mm | 668 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1196 mm | 1215 mm | 1237 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm |
| Standover Height | 685 mm | 704 mm | 743 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

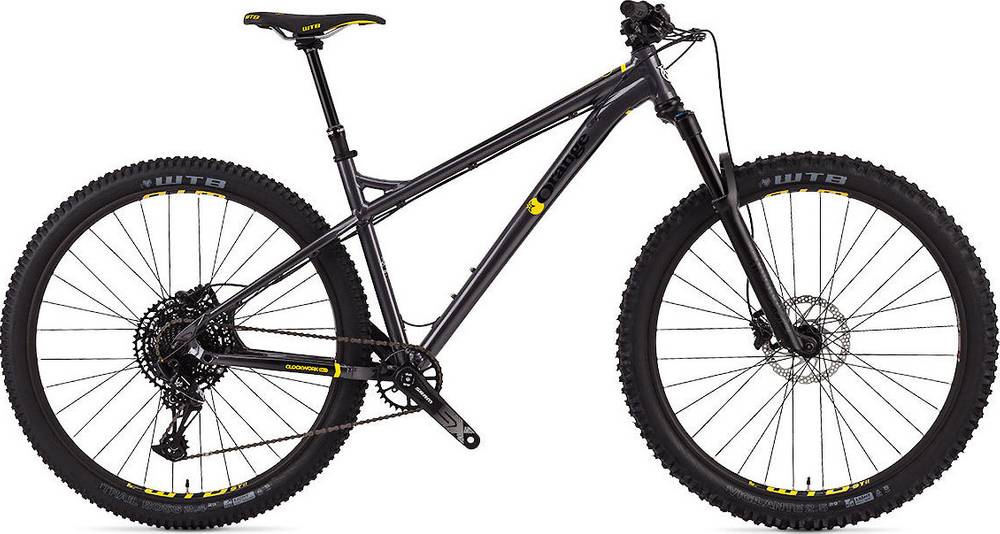

Clockwork EVO 29 S is part of the Orange Clockwork model. There are 14 bikes that carry this model name. You can easily view all of the Orange Clockwork bikes models from 2020, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
Orange Clockwork EVO 29 S 2020 bike is equipped with the RockShox Revelation RC fork, and has 130mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Clockwork EVO 29 S 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Clockwork EVO 29 S has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Orange model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
