Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 34 Performance, 46mm offset
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
SRAM GX Eagle DUB
Bottom Bracket
SRAM DUB, 73mm
Chain
SRAM GX Eagle, 12-speed
Chain Guide
None, Option: OneUp upper slider
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
e*thirteen TRS, 30mm width
Tires
Front: Maxxis Minion DHF, 3C, EXO, 27.5" x 2.5", Rear: Maxxis Minion DHR II, EXO, 27.5" x 2.4"
Brakes
Brakes
SRAM Guide RE, 4-piston, 200mm front rotor, 180mm rear rotor
Brake Levers
SRAM Guide RE
Cockpit
Stem
Burgtec Enduro, 42.5mm length
Handlebar
Burgtec RideWide Enduro, 800mm width
Grips
Strange Grappler, lock-on
Headset
FPD, ZS44/28.6 upper, EC44/40 lower
Seat
Saddle
WTB Silverado Comp
Seatpost
SDG Tellis dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.37 mm | 1.31 mm | 1.28 mm |
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm | 296 mm |
| Stack | 618 mm | 627 mm | 627 mm | 636 mm |
| Reach | 440 mm | 457 mm | 477 mm | 495 mm |
| Top Tube Length | 616 mm | 636 mm | 656 mm | 676 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm | 508 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1170 mm | 1192 mm | 1212 mm | 1233 mm |
| Bottom Bracket Drop | 59 mm | 59 mm | 59 mm | 59 mm |
| Standover Height | 664 mm | 682 mm | 700 | 736 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

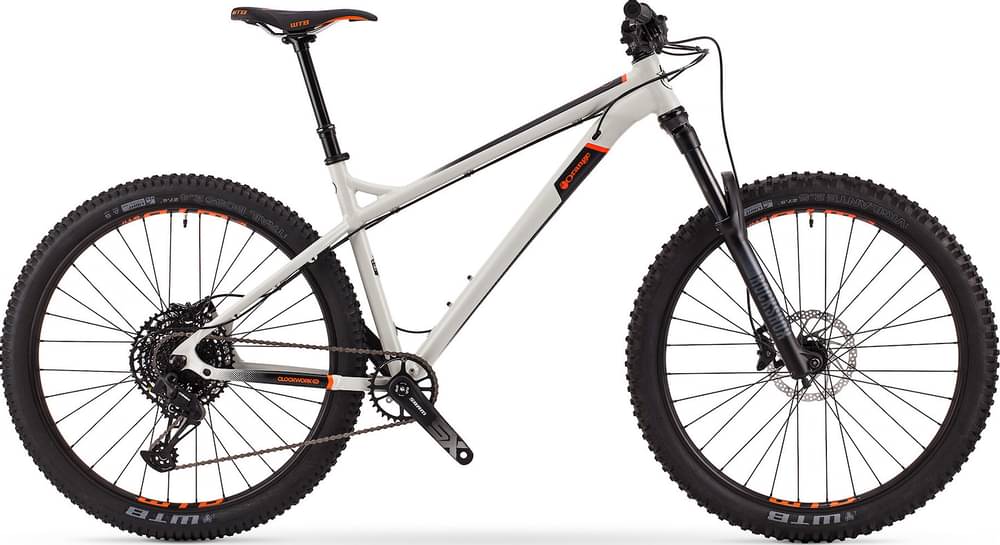

Clockwork EVO R is an Orange Clockwork model. There are 14 bikes that carry this model name. You can easily view all of the Orange Clockwork bikes models from 2021, here.
Model range prices
The most economical model, the Orange Clockwork EVO 29 Comp 2021 has a starting price of 1850$. Orange Clockwork EVO R 2021 on the other hand is the most expensive at 3300$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3300$. In conclusion, this bike price is 19.48% more expensive than the price of the average Trail bike.
Overview of components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Orange Clockwork EVO R 2021, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Clockwork EVO R has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Orange Clockwork EVO R comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
