Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Performance
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle 1230, 11-50 tooth, 12-speed
Crank
SRAM Descendant 6K DUB
Bottom Bracket
SRAM GXP
Chain
SRAM NX Eagle, 12-speed
Chain Guide
None
Pedals
Kore Rivera Thermo
Wheels
Front Hub
Joytech
Rear Hub
Joytech
Rims
Kore Realm 3.0
Tires
Front: Maxxis Minion DHF 2.5" WT, 3C, EXO, TR, Rear: Maxxis DHR II 2.4" WT, EXO, TR
Brakes
Brakes
Shimano SLX, 180mm rotors
Brake Levers
Shimano SLX
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Chester, 780mm, 35mm diameter
Grips
Strange 130 Lock-on, black
Headset
FPD 44mm
Seat
Saddle
Kore Conex
Seatpost
SDG Tellis
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.48 mm | 1.44 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Stack | 645.8 mm | 654.8 mm | 663.8 mm |
| Reach | 425.8 mm | 442.8 mm | 459.8 mm |
| Top Tube Length | 617.8 mm | 637.8 mm | 657.8 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1192 mm | 1218 mm | 1239 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Standover Height | 686 mm | 703 mm | 743 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

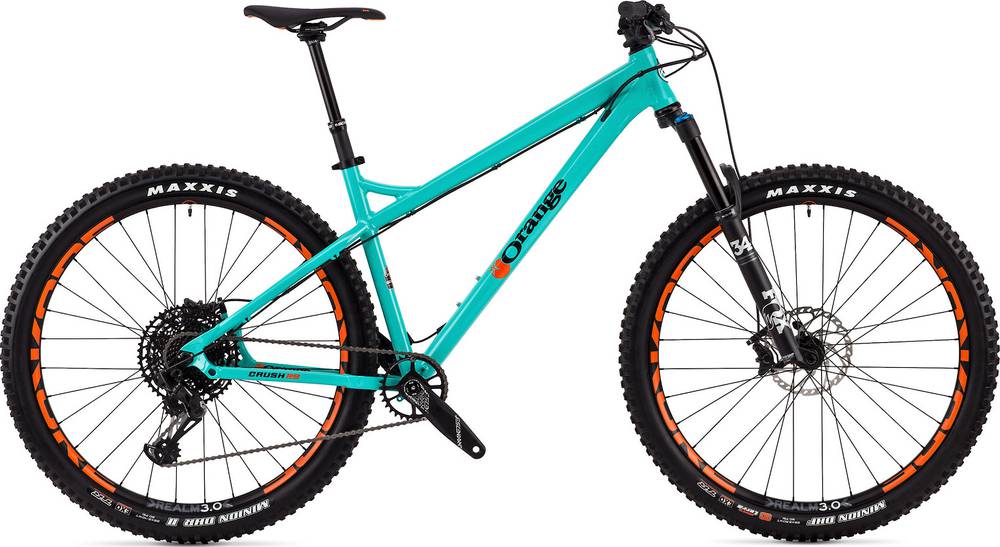

Crush 29 Pro belongs to the Orange Crush model. Orange released 27 bikes variations of this model so far. Take a sneak peek at all Orange Crush bikes models from 2019, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crush 29 Pro components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Crush 29 Pro 2019 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Crush 29 Pro comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Orange Crush 29 Pro bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
