Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 140mm -
Fork RockShox Lyrik Select
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Lyrik Select, 44mm offset
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
SRAM SX Eagle DUB
Bottom Bracket
SRAM DUB, 73mm
Chain
SRAM SX Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
WTB ST i30, 30mm inner width
Tires
Front: Maxxis Minion DHF, 3C, EXO, 29" x 2.5", Rear: Maxxis Minion DHR II, EXO, 29" x 2.4"
Brakes
Brakes
SRAM Guide T, 4-piston, 200mm front rotor, 180mm rear rotor
Brake Levers
SRAM Guide T
Cockpit
Stem
Burgtec Enduro, 42.5mm length, 35mm bar clamp
Handlebar
Race Face Chester, 780mm width, 35mm clamp diameter
Grips
Strange Grappler, lock-on
Headset
FPD, ZS44/28.6 upper, ZS56/40 lower
Seat
Saddle
WTB Silverado SL
Seatpost
KS Rage-I dropper, 150mm or 170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 792 mm | 817 mm | 841 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm |
| Stack | 655 mm | 664 mm | 673 mm |
| Reach | 458 mm | 478 mm | 498 mm |
| Top Tube Length | 628 mm | 650 | 673 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 432 mm | 457 mm | 508 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1227 mm | 1252 mm | 1276 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Standover Height | 689 mm | 706 mm | 747 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

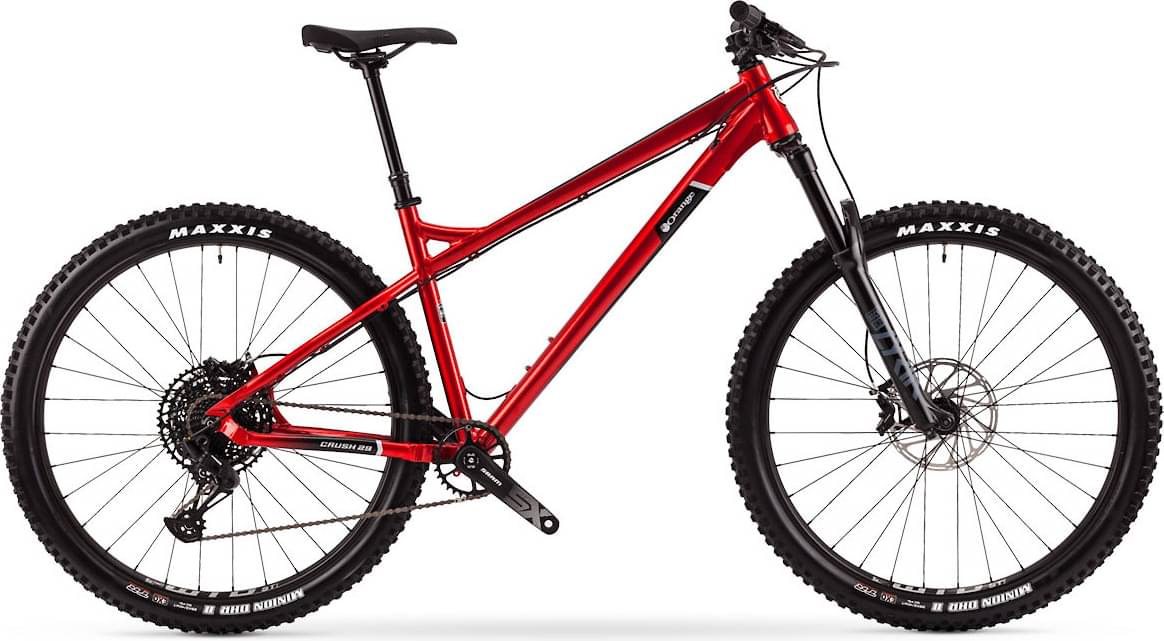

Model Overview
Crush 29 Pro completes the Orange Crush model. 27 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Orange Crush Pro 2022 is the most economical model, with a starting price of 3200$. Orange Crush 29 Pro 2022 on the other hand costs 3200$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 3200$. Comparing the average cost of a Trail bike to this one, you will see that Crush 29 Pro price is 15.86% more expensive.
Crush 29 Pro components
Fork
The fork installed on this bike is the RockShox Lyrik Select model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Crush 29 Pro bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Crush 29 Pro comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Orange Crush 29 Pro bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Orange Crush 29 Pro includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
