Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 36 Performance, 51mm offset
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
SRAM GX Eagle DUB
Bottom Bracket
SRAM DUB, 73mm
Chain
SRAM GX Eagle, 12-speed
Chain Guide
None, Option: OneUp upper slider
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Hopt Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Hopt Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
e*thirteen TRS, 30mm width, Option: Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO, 29" x 2.5", Rear: Maxxis Minion DHR II, EXO, 29" x 2.4"
Brakes
Brakes
SRAM Guide RE, 4-piston, 200mm front rotor, 180mm rear rotor, Option: Shimano Deore XT Trail, 4-piston, 203mm front rotor, 180mm rear rotor, Option: Shimano SLX Trail, 4-piston, 203mm front rotor, 180mm rear rotor
Brake Levers
SRAM Guide RE, Option: Shimano Deore XT Trail, Option: Shimano SLX Trail
Cockpit
Stem
Burgtec Enduro, 42.5mm length
Handlebar
Burgtec RideWide Enduro, 800mm width
Grips
Strange Grappler, lock-on
Headset
FPD, ZS44/28.6 upper, EC44/40 lower
Seat
Saddle
SDG Radar, steel rails
Seatpost
FOX Transfer Performance Elite dropper, 175mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.48 mm | 1.44 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Stack | 646 mm | 655 mm | 664 mm |
| Reach | 426 mm | 443 mm | 460 mm |
| Top Tube Length | 620 mm | 633 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 457 mm | 508 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1193 mm | 1219 mm | 1240 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Standover Height | 687 mm | 704 mm | 744 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

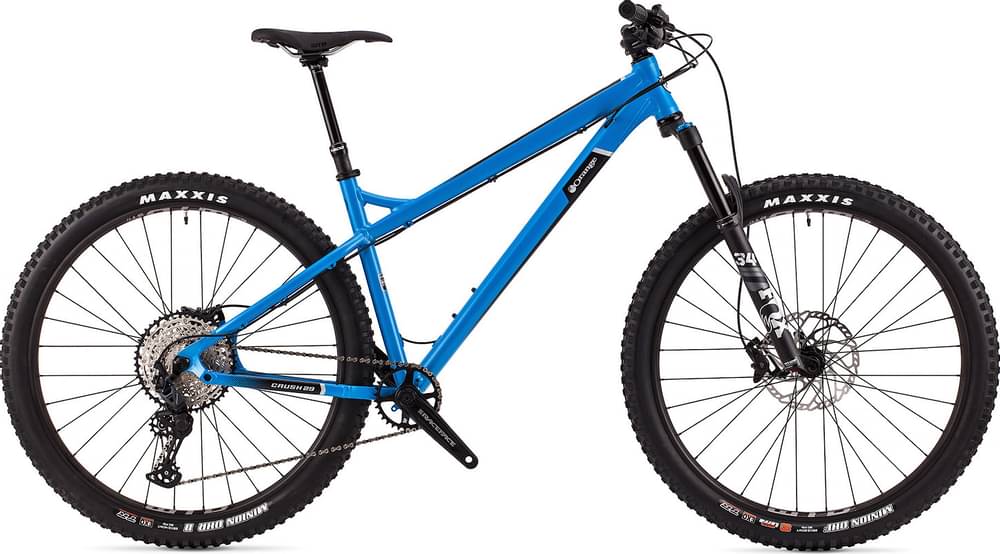

About this model
Crush 29 R is part of the Orange Crush model. Orange released 27 bikes variations of this model so far. You can easily view all of the Orange Crush bikes models from 2021, here.
Model range prices
The most economical model, the Orange Crush 2021 has a starting price of 1900$. Orange Crush 29 R 2021 on the other hand is the most expensive at 3600$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Orange Crush 29 R price was 3600$. If we compare this with the average Trail bike cost we notice that the price is 30.34% higher.
Overview of components
Fork
This bike has the Fox Performance Float 36 fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Crush 29 R 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Orange Crush 29 R comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
