Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Pike RCT3
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike RCT3
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano XT, 11-46 tooth, 11-speed
Crank
Hope, black or orange
Bottom Bracket
Hope, 30mm, black
Chain
SRAM PC1110
Chain Guide
Not included
Pedals
None included
Wheels
Front Hub
Hope Pro 4, black, Boost rear
Rear Hub
Hope Pro 4, black, Boost rear
Rims
Race Face Arc 30, grey
Tires
Front: Maxxis High Roller II, 2.4" 3c Exo TR, Rear: Maxxis High Roller II, 2.3" Exo TR 2
Brakes
Brakes
SRAM Guide R with 203mm front/180mm rear rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
Renthal Apex, 50mm length
Handlebar
Renthal Fat Bar, 800mm width
Grips
Strange 130 Lock-on, black or orange
Headset
FPD, 44mm
Seat
Saddle
SDG Fly MTN, steel rail, black/grey
Seatpost
RockShox Reverb with 1x remote, 125mm or 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Stack | 617 mm | 626 mm | 632 mm | 644 mm |
| Reach | 414 mm | 432 mm | 450 mm | 466 mm |
| Top Tube Length | 598 mm | 618 mm | 638 mm | 658 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 533.4 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1164 mm | 1186 mm | 1207 mm | 1229 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 650 | 673 mm | 703 mm | 738 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

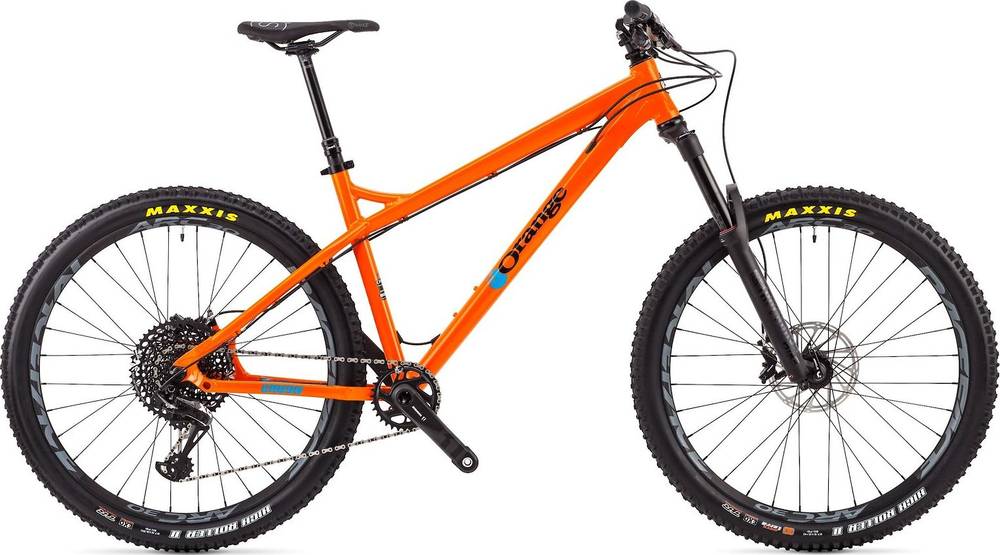

Model Overview
Crush RS Shimano XT Build belongs to the Orange Crush model. Orange launched 27 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crush RS Shimano XT Build components
Fork
The fork installed on this bike is the RockShox Pike RCT3 model. The travel on this model is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Crush RS Shimano XT Build model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orange Crush RS Shimano XT Build is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Orange model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
