Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Pike RCT3
-
Groupset X01 Eagle, GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike RCT3
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM CS XG 1275 Eagle, 10-50 tooth, 12-speed
Crank
SRAM X1 Carbon Eagle
Bottom Bracket
SRAM GXP Team
Chain
SRAM GX Eagle
Chain Guide
Not included
Pedals
None included
Wheels
Front Hub
Hope Pro 4, black, Boost rear
Rear Hub
Hope Pro 4, black, Boost rear
Rims
Race Face Arc 30, grey
Tires
Front: Maxxis High Roller II, 2.4" 3c Exo TR, Rear: Maxxis High Roller II, 2.3" Exo TR 2
Brakes
Brakes
SRAM Guide R with 203mm front/180mm rear rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
Renthal Apex, 50mm length
Handlebar
Renthal Fat Bar, 800mm width
Grips
Strange 130 Lock-on, black or orange
Headset
FPD, 44mm
Seat
Saddle
SDG Fly MTN, steel rail, black/grey
Seatpost
RockShox Reverb with 1x remote, 125mm or 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Stack | 617 mm | 626 mm | 632 mm | 644 mm |
| Reach | 414 mm | 432 mm | 450 mm | 466 mm |
| Top Tube Length | 598 mm | 618 mm | 638 mm | 658 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 533.4 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1164 mm | 1186 mm | 1207 mm | 1229 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 650 | 673 mm | 703 mm | 738 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

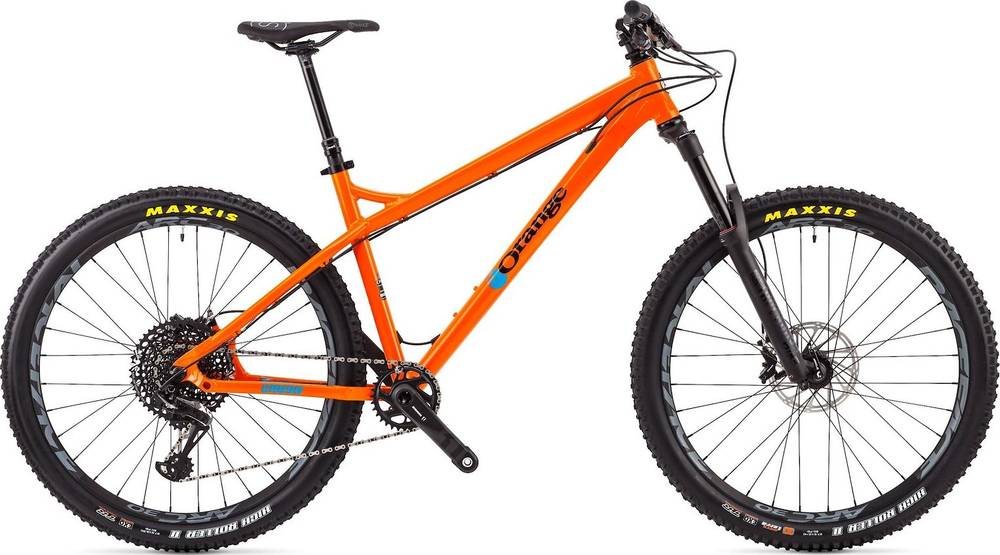

Crush RS X01 Eagle Build is part of the Orange Crush model. Orange launched 27 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
This bike has the RockShox Pike RCT3 fork installed. The fork’s travel is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Crush RS X01 Eagle Build 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Crush RS X01 Eagle Build comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Crush RS X01 Eagle Build. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
