Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox 35 Silver TK, 37mm offset
Rear Shock
RockShox Deluxe Select+, 190mm x 45mm
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
SRAM SX Eagle DUB
Bottom Bracket
SRAM DUB, 73mm
Chain
SRAM SX Eagle, 12-speed
Chain Guide
None
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
WTB ST Light i30, 30mm internal width
Tires
Maxxis Minion DHR II, EXO, TR, 27.5" x 2.4"
Brakes
Brakes
Shimano Deore M6120, 4-piston, 203mm front rotor, 180mm rear rotor
Brake Levers
Shimano Deore M6120
Cockpit
Stem
Race Face Chester, 40mm length, 35mm bar clamp
Handlebar
Race Face Chester, 780mm width, 35mm clamp diameter
Grips
Strange Grappler, lock-on
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower
Seat
Saddle
WTB Silverado Comp
Seatpost
SDG Tellis dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.3 mm | 1.24 mm | 1.24 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Stack | 592 mm | 601 mm | 601 mm | 619 mm |
| Reach | 445 mm | 462 mm | 483 mm | 498 mm |
| Top Tube Length | 586 mm | 605 mm | 620 mm | 636 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 381 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1194 mm | 1216 mm | 1236 mm | 1260 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 690 mm | 710 mm | 728 mm | 755 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

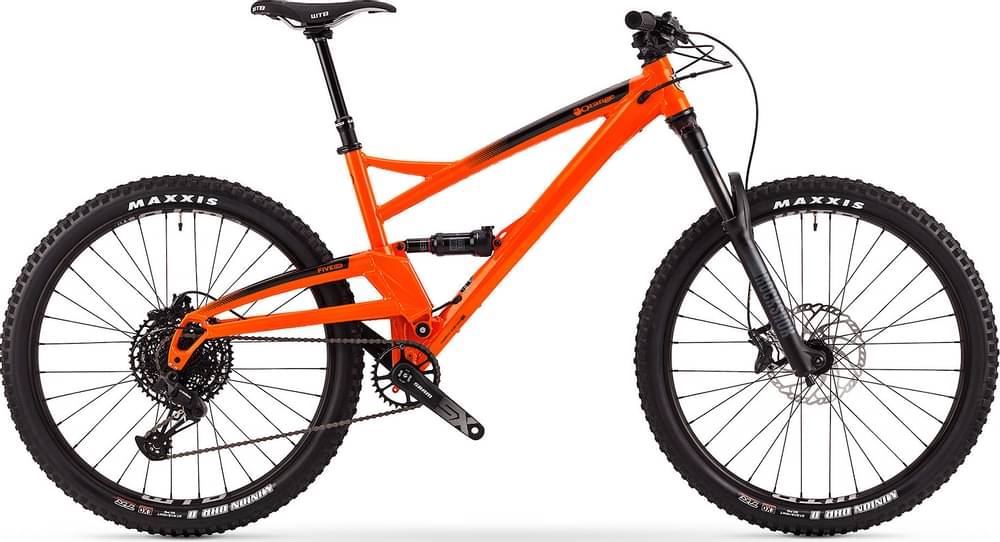

Five EVO S is an Orange Five model. Orange launched 23 bikes of this model so far. You can easily view all of the Orange Five bikes models from 2021, here.
Model range prices
Orange Five EVO S 2021 is the cheapest bike model and costs 3600$. Orange Five EVO XTR 2021 is the most expensive one and costs 6800$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3600$. In conclusion, this bike price is 30.34% more expensive than the price of the average Trail bike.
Five EVO S components
Fork
Orange Five EVO S 2021 bike is equipped with the RockShox 35 Silver fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox Deluxe Select+ rear shock model, which has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Five EVO S 2021 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Five EVO S comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Orange Five EVO S bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Orange model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
