Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Factory Float 36
-
Groupset SX Eagle -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 36 Factory, 46mm offset
Rear Shock
FOX FLOAT DPX2 Factory, 210mm x 55mm
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
SRAM SX Eagle DUB
Bottom Bracket
SRAM DUB, 73mm
Chain
SRAM SX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
WTB ST Light i30, 30mm internal width
Tires
Maxxis Minion DHR II, EXO, TR, 27.5" x 2.4"
Brakes
Brakes
SRAM Guide RE, 4-piston, 200mm front rotor, 180mm rear rotor
Brake Levers
SRAM Guide RE
Cockpit
Stem
Race Face Chester, 35mm bar clamp, 40mm length
Handlebar
Burgtec RideWide Enduro, 800mm width, 35mm clamp diameter
Grips
Strange 130, single lock-on, black
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower, for tapered steerer
Seat
Saddle
WTB Silverado Comp
Seatpost
SDG Tellis dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.3 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm | 329 mm |
| Stack | 597 mm | 606 mm | 606 mm | 619 mm | 624 mm |
| Reach | 427 mm | 445 mm | 465 mm | 481 mm | 500 mm |
| Top Tube Length | 598 mm | 618 mm | 638 mm | 658 mm | 678 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 432 mm | 457 mm | 483 mm | 508 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 125 mm | 130 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1174 mm | 1195 mm | 1215 mm | 1238 mm | 1259 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 26 mm | 26 mm |
| Standover Height | 693 mm | 715 mm | 741 mm | 766 mm | 780 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model

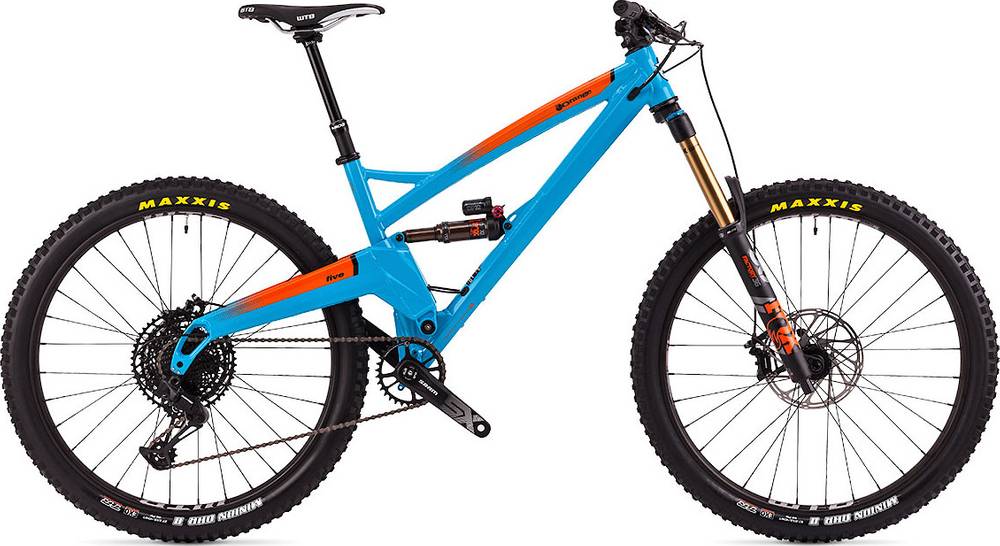

Five Pro-Line belongs to the Orange Five model. There are 23 bikes that carry this model name. You can easily view all of the Orange Five bikes models from 2020, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the FOX FLOAT DPX2 Factory model, with a travel of 145mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Orange Five Pro-Line 2020, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Five Pro-Line comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Orange Five Pro-Line includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
