Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Factory 36 Float
Rear Shock
FOX Float DPX2 Factory, 190x50mm
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed
Front Derailleur
None
Shift Levers
Shimano XTR, 12-speed
Cassette
Shimano XTR, 12-speed, 10-51 tooth
Crank
Shimano XTR
Bottom Bracket
Shimano Hollow Tech II
Chain
Shimano XTR
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano XTR
Rear Hub
Shimano XTR
Rims
Stans Flow Mk3
Tires
Front: Maxxis High Roller II 2.4", 3C, EXO, TR, Rear: Maxxis High Roller II 2.3", EXO, TR
Brakes
Brakes
Front: Shimano XTR, 203mm rotor, Rear: Shimano XTR, 180mm rotor
Brake Levers
Shimano XTR
Cockpit
Stem
Burgtec MK2 Enduro, black, 50mm
Handlebar
Burgtec RideWide Carbon, 800mm, 35mm diameter
Grips
Strange 130 Lock-on
Headset
Hope 49mm
Seat
Saddle
SDG Radar, cromo rail, black
Seatpost
FOX Factory Transfer 150mm, Kashima coating
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.44 mm | 1.38 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm | 333 mm | 333 mm |
| Stack | 597 mm | 606 mm | 606 mm | 624 mm | 633 mm |
| Reach | 402 mm | 420 mm | 440 mm | 455 mm | 472 mm |
| Top Tube Length | 573 mm | 593 mm | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 406.4 mm | 431.8 mm | 475.2 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1132 mm | 1154 mm | 1174 mm | 1197 mm | 1218 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 689 mm | 713 mm | 718 mm | 738 mm | 788 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

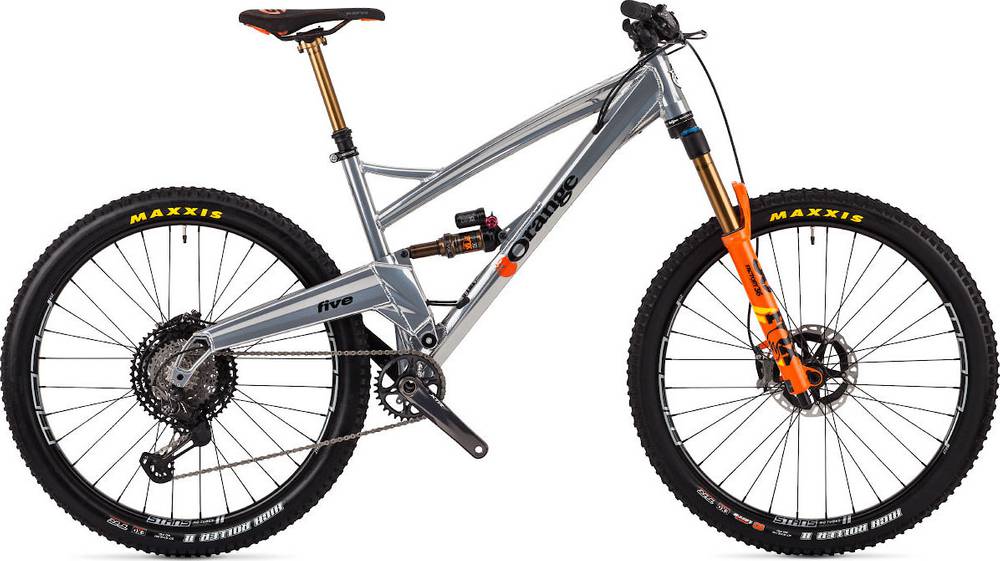

Five XTR completes the Orange Five model. 23 bikes variations carry this model name so far. Take a sneak peek at all Orange Five bikes models from 2019, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Five XTR components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is FOX Float DPX2 Factory, with a travel distance of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Five XTR are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Five XTR comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Five XTR comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
