Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle, GX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Factory 34 Float
Rear Shock
FOX Float DPS Factory, 184x44mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX1 Eagle, 12-speed
Cassette
SRAM Eagle XG-1275, 10-50 tooth, 12-speed
Crank
SRAM Descendant Carbon Eagle
Bottom Bracket
SRAM GXP
Chain
SRAM GX Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Hope Pro 4
Rear Hub
Hope Pro 4
Rims
Stans Flow Mk3
Tires
Front: Maxxis High Roller II 2.4", 3C, EXO, TR, Rear: Maxxis High Roller II 2.3", EXO, TR
Brakes
Brakes
Front: Hope Tech 3 E4, 203mm rotor, Rear: Hope Tech 3 E4, 180mm rotor
Brake Levers
Hope Tech 3 E4
Cockpit
Stem
Burgtec MK2 Enduro, black, 50mm
Handlebar
Burgtec RideWide Carbon, 800mm, 35mm diameter
Grips
Strange 130 Lock-on
Headset
Hope 49mm
Seat
Saddle
SDG Radar, cromo rail, black
Seatpost
FOX Factory Transfer 150mm, Kashima coating
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.37 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 586 mm | 596 mm | 596 mm | 614 mm |
| Reach | 419 mm | 436 mm | 456 mm | 471 mm |
| Top Tube Length | 588 mm | 608 mm | 628 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 475.2 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1130 mm | 1151 mm | 1171 mm | 1194 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 688 mm | 728 mm | 742 mm | 781 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

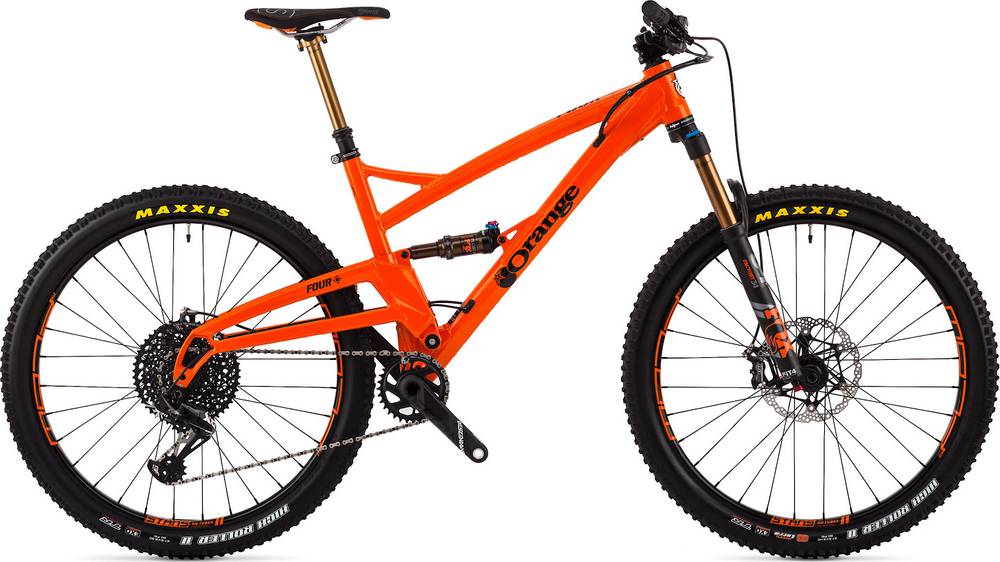

Four Factory is an Orange Four model. 10 bikes variations carry this model name so far. You can easily view all of the Orange Four bikes models from 2019, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Four Factory components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the FOX Float DPS Factory model, with a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Four Factory model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Four Factory comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
