Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike RCT3
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike RCT3
Rear Shock
RockShox Monarch RT3, 184x44mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM Eagle XG-1275, 10-50 tooth, 12-speed
Crank
SRAM Descendant Carbon Eagle
Bottom Bracket
SRAM GXP
Chain
SRAM GX Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Hope Pro 4
Rear Hub
Hope Pro 4
Rims
Race Face Arc 30
Tires
Front: Maxxis Minion DHF 2.3", 3C, EXO, TR, Rear: Maxxis High Roller II 2.3", EXO, TR
Brakes
Brakes
Front: SRAM Guide RE, 200mm rotor, Rear: SRAM Guide RE, 180mm rotor
Brake Levers
SRAM Guide RE
Cockpit
Stem
Renthal Apex, 50mm
Handlebar
Renthal Fatbar, 800mm, 35mm diameter
Grips
Strange 130 Lock-on
Headset
Cane Creek 49mm
Seat
Saddle
SDG Radar, steel rails, black
Seatpost
RockShox Reverb 150mm with 1x remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.37 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 586 mm | 596 mm | 596 mm | 614 mm |
| Reach | 419 mm | 436 mm | 456 mm | 471 mm |
| Top Tube Length | 588 mm | 608 mm | 628 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 475.2 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1130 mm | 1151 mm | 1171 mm | 1194 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 688 mm | 728 mm | 742 mm | 781 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

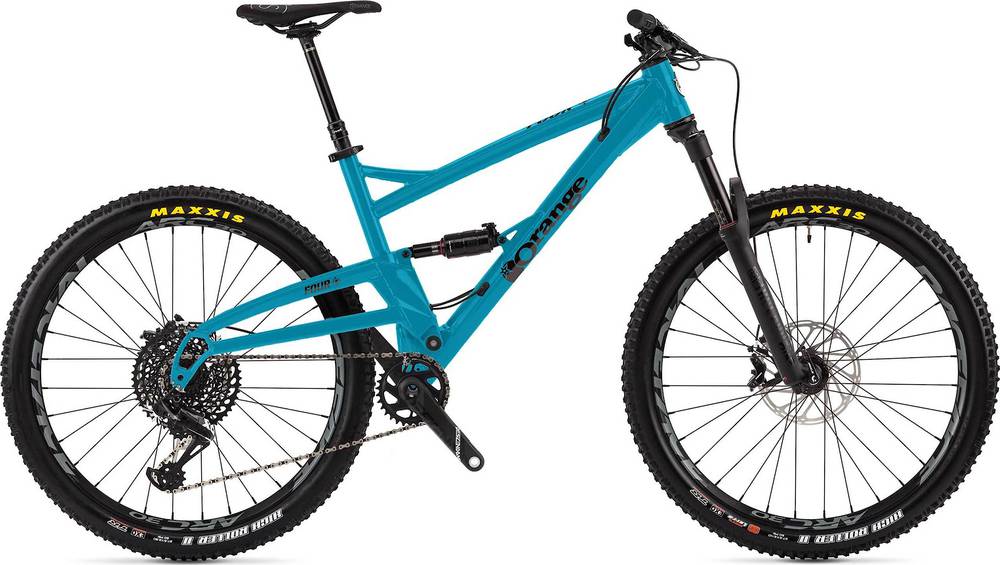

Four RS is part of the Orange Four model. Orange launched 10 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
Orange Four RS 2019 bike is equipped with the RockShox Pike RCT3 fork, and has 130mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Orange Four RS bike has the RockShox Monarch RT3 model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Orange Four RS 2019, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Orange model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
