Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike RCT3
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike RCT3
Rear Shock
RockShox Monarch RT3 DB, 184mm x 44mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM CS XG-1275 Eagle, 10 x 50 tooth, 12-speed
Crank
SRAM X1 Eagle, carbon
Bottom Bracket
SRAM GXP Team, 73mm
Chain
SRAM GX Eagle
Chain Guide
None included
Pedals
None included
Wheels
Front Hub
Hope Pro 4, black or orange
Rear Hub
Hope Pro 4, black or orange
Rims
Race Face Arc 27, grey
Tires
Front: Maxxis High Roller II 3c EXO TR, 2.4", Rear: Maxxis High Roller II EXO TR 2, 2.3"
Brakes
Brakes
SRAM Guide R with 180mm rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
Renthal Apex, 50mm length, 35mm clamp
Handlebar
Renthal Fatbar, 800mm width
Grips
Strange 130, single lock-on, black
Headset
Cane Creek, 49mm
Seat
Saddle
SDG Fly MTN, steel rail, black/grey
Seatpost
RockShox Reverb with 1x remote, 125mm or 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.4 mm | 1.37 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 586 mm | 586 mm | 596 mm | 596 mm | 614 mm |
| Reach | 386 mm | 419 mm | 436 mm | 456 mm | 471 mm |
| Top Tube Length | 568 mm | 588 mm | 608 mm | 628 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 381 mm | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1110 mm | 1130 mm | 1151 mm | 1171 mm | 1194 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 688 mm | 688 mm | 728 mm | 742 mm | 781 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

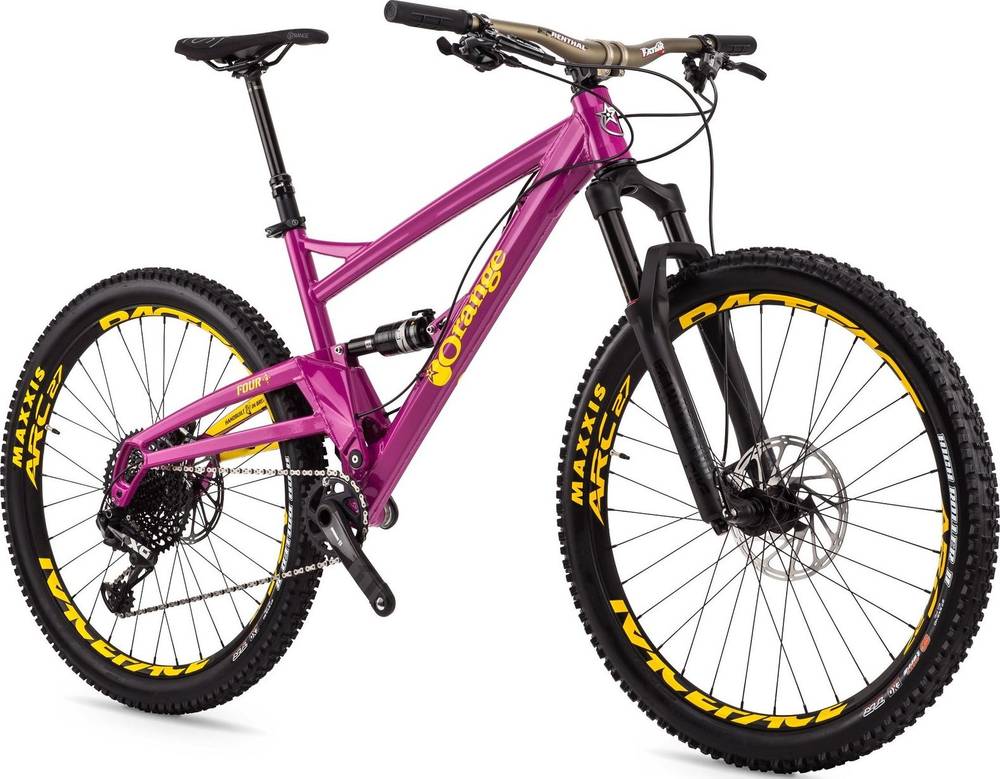

Four RS Eagle Build is an Orange Four model. Orange launched 10 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The RockShox Pike RCT3 is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Four RS Eagle Build has a rear shock with a travel of 120mm. The model RockShox Monarch RT3 DB is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Four RS Eagle Build are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Orange Four RS Eagle Build has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Four RS Eagle Build comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Orange Four RS Eagle Build comes with a dropper post. Therefore, climbing or descending will be a breeze.
