Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike RCT3
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike RCT3
Rear Shock
RockShox Monarch RT3 DB, 184mm x 44mm
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano XT, 11 x 46 tooth, 11-speed
Crank
Hope, orange
Bottom Bracket
Hope, 30mm, orange
Chain
SRAM PC1110
Chain Guide
None included
Pedals
None included
Wheels
Front Hub
Hope Pro 4, black or orange
Rear Hub
Hope Pro 4, black or orange
Rims
Race Face Arc 27, grey
Tires
Front: Maxxis High Roller II 3c EXO TR, 2.4", Rear: Maxxis High Roller II EXO TR 2, 2.3"
Brakes
Brakes
SRAM Guide R with 180mm rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
Renthal Apex, 50mm length, 35mm clamp
Handlebar
Renthal Fatbar, 800mm width
Grips
Strange 130, single lock-on, black
Headset
Cane Creek, 49mm
Seat
Saddle
SDG Fly MTN, steel rail, black/grey
Seatpost
RockShox Reverb with 1x remote, 125mm or 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.4 mm | 1.37 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 586 mm | 586 mm | 596 mm | 596 mm | 614 mm |
| Reach | 386 mm | 419 mm | 436 mm | 456 mm | 471 mm |
| Top Tube Length | 568 mm | 588 mm | 608 mm | 628 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 381 mm | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1110 mm | 1130 mm | 1151 mm | 1171 mm | 1194 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 688 mm | 688 mm | 728 mm | 742 mm | 781 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

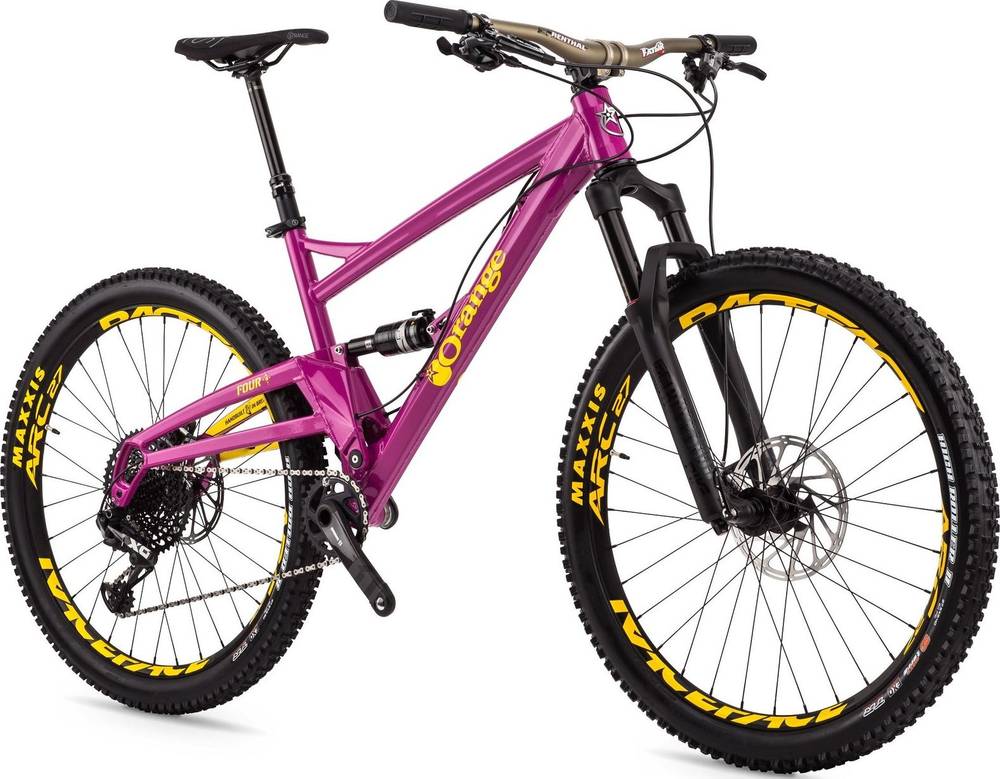

Four RS Shimano XT Build is an Orange Four model. Orange launched 10 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Four RS Shimano XT Build components
Fork
The fork installed on this bike is the RockShox Pike RCT3 model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the RockShox Monarch RT3 DB rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Four RS Shimano XT Build bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Orange Four RS Shimano XT Build has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Orange Four RS Shimano XT Build bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Four RS Shimano XT Build. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
