Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Revelation RC
-
Groupset SLX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Revelation RC
Rear Shock
RockShox Monarch RT DB, 184mm x 44mm
Drivetrain
Rear Derailleur
Shimano SLX Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
SRAM PC-1130, 11 x 42 tooth, 11-speed
Crank
Race Face Aeffect
Bottom Bracket
Race Face, 73mm
Chain
SRAM PC1110
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
JoyTech
Rear Hub
JoyTech
Rims
Kore Realm 2.7, 32 hole
Tires
Maxxis High Roller II Exo TR, 2.3"
Brakes
Brakes
Shimano MT500 with 180mm rotors
Brake Levers
Shimano MT500
Cockpit
Stem
Kore Cubix, 50mm length, 35mm clamp
Handlebar
Kore Durox, 780mm width
Grips
Strange 130, single lock-on, black
Headset
Cane Creek, 49mm
Seat
Saddle
Kore Conex
Seatpost
Kore Dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.4 mm | 1.37 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 586 mm | 586 mm | 596 mm | 596 mm | 614 mm |
| Reach | 386 mm | 419 mm | 436 mm | 456 mm | 471 mm |
| Top Tube Length | 568 mm | 588 mm | 608 mm | 628 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 381 mm | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1110 mm | 1130 mm | 1151 mm | 1171 mm | 1194 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 688 mm | 688 mm | 728 mm | 742 mm | 781 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

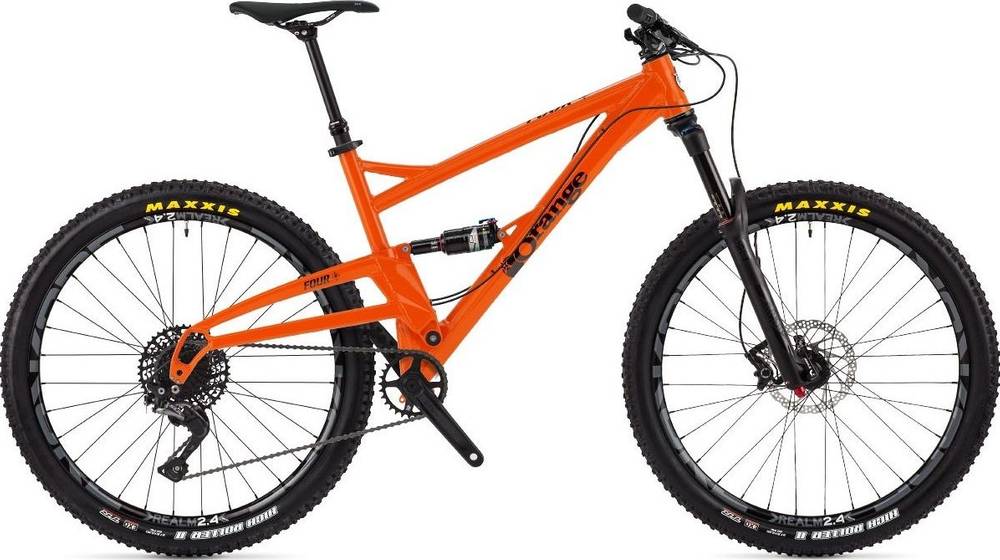

Model Overview
Four S is part of the Orange Four model. 10 bikes variations carry this model name so far. You can easily view all of the Orange Four bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Four S components
Fork
The Four S comes factory-installed with the RockShox Revelation RC fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the RockShox Monarch RT DB model, with a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Four S are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Four S. Therefore, climbing or descending will be a breeze.
