Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Revelation RC
-
Groupset SLX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
RockShox Revelation RC
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX Shadow Plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
SRAM PC-1130, 11-42 tooth, 11-speed
Crank
Race Face Aeffect, direct mount
Bottom Bracket
Race Face
Chain
SRAM PC1110, 11-speed
Chain Guide
N/A
Pedals
Kore Rivera Thermo
Wheels
Front Hub
Formula, Boost rear
Rear Hub
Formula, Boost rear
Rims
Kore Realm 3.0 29
Tires
Front: WTB Vigilante 29" x 2.3", Rear: WTB Trail Boss 29" x 2.25"
Brakes
Brakes
Shimano MT500 with 180mm rotors
Brake Levers
Shimano MT500
Cockpit
Stem
Kore Cubix M35, 50mm length
Handlebar
Kore Durox M35, 780mm width
Grips
Strange 130 Single Lock-on, black
Headset
FPD 44mm
Seat
Saddle
Kore Conex
Seatpost
Kore Dropper, 150mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.46 mm | 1.42 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Stack | 645.8 mm | 654.8 mm | 663.8 mm |
| Reach | 431.8 mm | 449.8 mm | 466.8 mm |
| Top Tube Length | 617.8 mm | 637.8 mm | 657.8 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1178 mm | 1199 mm | 1221 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Standover Height | 689 mm | 707 mm | 748 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

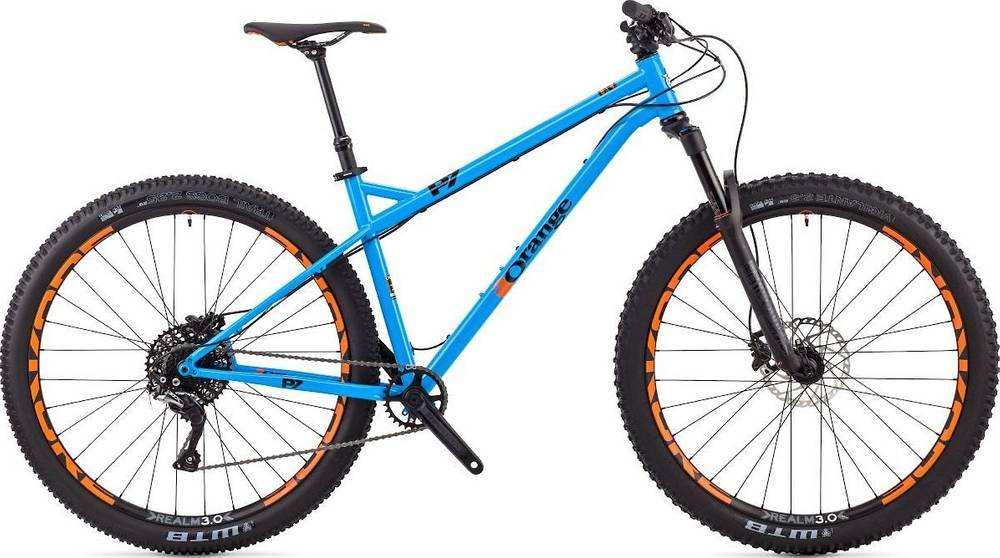

P7 29 S belongs to the Orange P7 model. There are 18 bikes that carry this model name. Take a sneak peek at all Orange P7 bikes models from 2018, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
P7 29 S components
Fork
This bike has the RockShox Revelation RC fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the P7 29 S bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The P7 29 S has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Orange P7 29 S comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
