Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Pike RCT3
-
Groupset GX, GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
RockShox Pike RCT3
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM GX
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM CS XG-1275 Eagle, 10 x 50 tooth, 12-speed
Crank
SRAM X1 Eagle, carbon
Bottom Bracket
SRAM GXP Team, 73mm
Chain
SRAM GX Eagle
Chain Guide
None included
Pedals
None included
Wheels
Front Hub
Hope Pro 4, black or orange, Boost rear
Rear Hub
Hope Pro 4, black or orange, Boost rear
Rims
Race Face Arc 30, grey
Tires
Front: Maxxis Minion DHF 3c EXO TR, 2.3", Rear: High Roller II 2
Brakes
Brakes
SRAM Guide R with 203mm front/180mm rear rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
Renthal Apex, 50mm length, 35mm clamp
Handlebar
Renthal Fatbar, 800mm width
Grips
Strange 130, single lock-on, black
Headset
FPD, 44mm
Seat
Saddle
SDG Fly MTN, chromoly rail, black/grey
Seatpost
RockShox Reverb with 1x remote, 125mm or 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.46 mm | 1.42 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Stack | 645.8 mm | 654.8 mm | 663.8 mm |
| Reach | 431.8 mm | 449.8 mm | 466.8 mm |
| Top Tube Length | 617.8 mm | 637.8 mm | 657.8 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1178 mm | 1199 mm | 1221 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Standover Height | 689 mm | 707 mm | 748 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

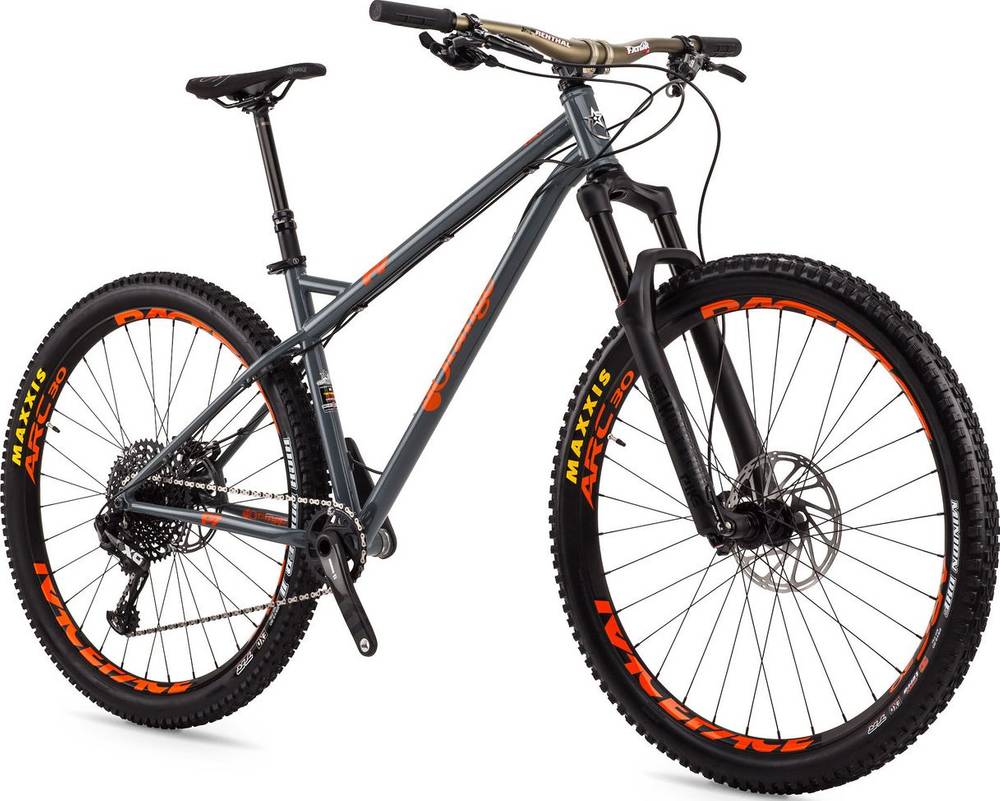

P7 RS 29 Eagle Build is an Orange P7 model. Orange released 18 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
This bike has the RockShox Pike RCT3 fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the P7 RS 29 Eagle Build bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orange P7 RS 29 Eagle Build is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Orange P7 RS 29 Eagle Build comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
