Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Pike RCT3
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
RockShox Pike RCT3
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano XT, 11 x 46 tooth, 11-speed
Crank
Hope, black
Bottom Bracket
Hope, 30mm, black
Chain
SRAM PC1110
Chain Guide
None included
Pedals
None included
Wheels
Front Hub
Hope Pro 4, black or orange, Boost rear
Rear Hub
Hope Pro 4, black or orange, Boost rear
Rims
Race Face Arc 30, grey
Tires
Front: Maxxis Minion DHF 3c EXO TR, 2.3", Rear: High Roller II 2
Brakes
Brakes
SRAM Guide R with 203mm front/180mm rear rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
Renthal Apex, 50mm length, 35mm clamp
Handlebar
Renthal Fatbar, 800mm width
Grips
Strange 130, single lock-on, black
Headset
FPD, 44mm
Seat
Saddle
SDG Fly MTN, chromoly rail, black/grey
Seatpost
RockShox Reverb with 1x remote, 125mm or 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.46 mm | 1.42 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Stack | 645.8 mm | 654.8 mm | 663.8 mm |
| Reach | 431.8 mm | 449.8 mm | 466.8 mm |
| Top Tube Length | 617.8 mm | 637.8 mm | 657.8 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1178 mm | 1199 mm | 1221 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Standover Height | 689 mm | 707 mm | 748 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

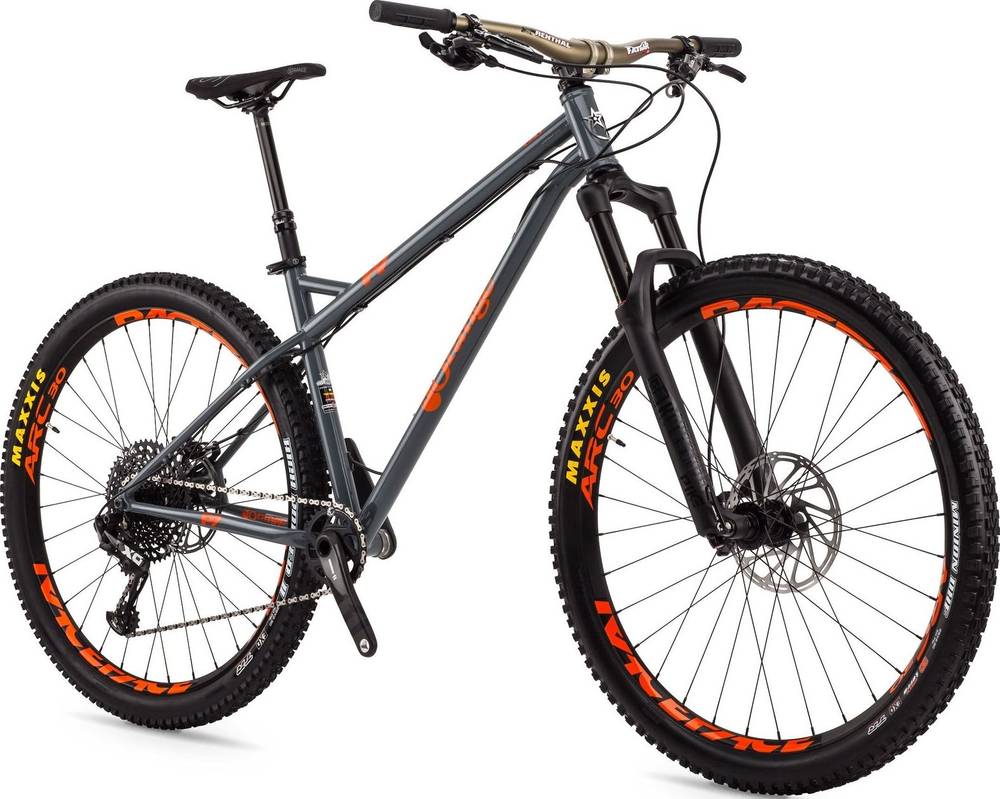

P7 RS 29 Shimano XT Build is an Orange P7 model. Orange launched 18 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The fork installed on this bike is the RockShox Pike RCT3 model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on P7 RS 29 Shimano XT Build are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
The Orange model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
