Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Revelation RC
-
Groupset SLX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
RockShox Revelation RC
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
SRAM PC-1130, 11 x 42 tooth, 11-speed
Crank
Race Face Aeffect
Bottom Bracket
73mm
Chain
SRAM PC1110
Chain Guide
N/A
Pedals
Kore Rivera Thermo
Wheels
Front Hub
JoyTech, Boost rear
Rear Hub
JoyTech, Boost rear
Rims
Kore Realm 3.0, 32 hole
Tires
Front: WTB Vigilante 2.3", Rear: WTB Trail Boss, 2.4"
Brakes
Brakes
Shimano MT500 with 180mm rotors
Brake Levers
Shimano MT500
Cockpit
Stem
Kore Cubix, 50mm length, 35mm clamp
Handlebar
Kore Durox, 780mm width
Grips
Strange 130, single lock-on, black
Headset
FPD, 44mm
Seat
Saddle
Kore Conex
Seatpost
Kore Dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.41 mm | 1.36 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 301 mm |
| Stack | 617 mm | 628 mm | 638 mm | 644 mm |
| Reach | 420 mm | 438 mm | 454 mm | 473 mm |
| Top Tube Length | 598 mm | 618 mm | 638 mm | 658 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 457.2 mm | 508 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1165 mm | 1185 mm | 1205 mm | 1225 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 649 mm | 684 mm | 698 mm | 738 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

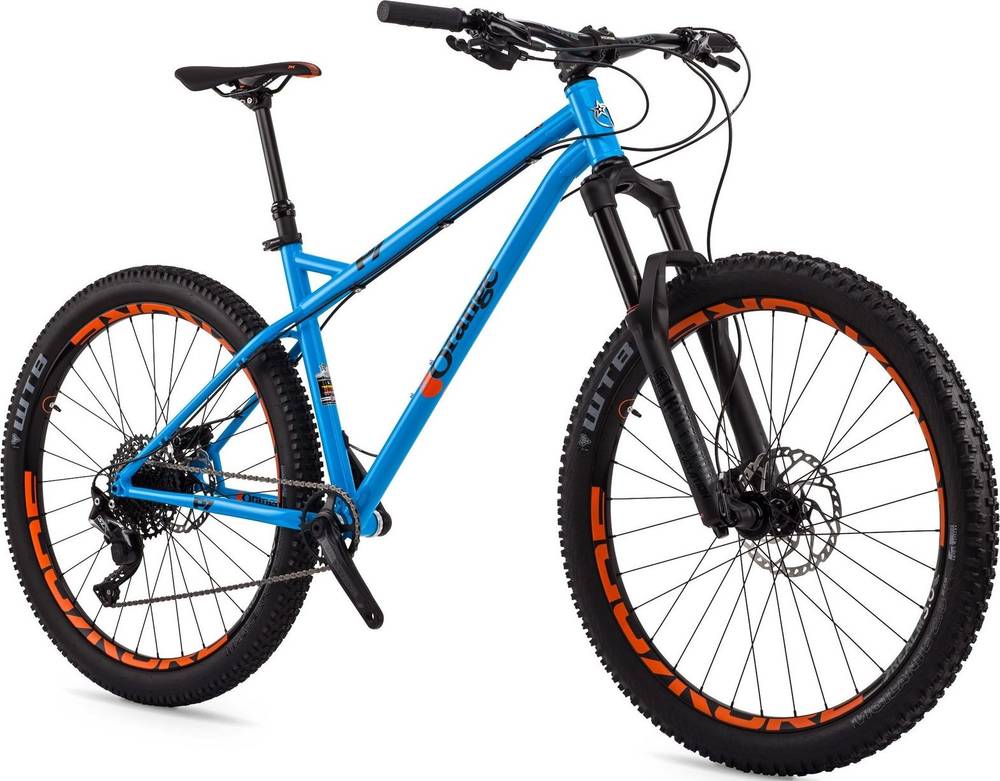

P7 S is an Orange P7 model. There are 18 bikes that carry this model name. Take a sneak peek at all Orange P7 bikes models from 2018, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The P7 S comes factory-installed with the RockShox Revelation RC fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on P7 S are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The P7 S has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
P7 S comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Orange model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
