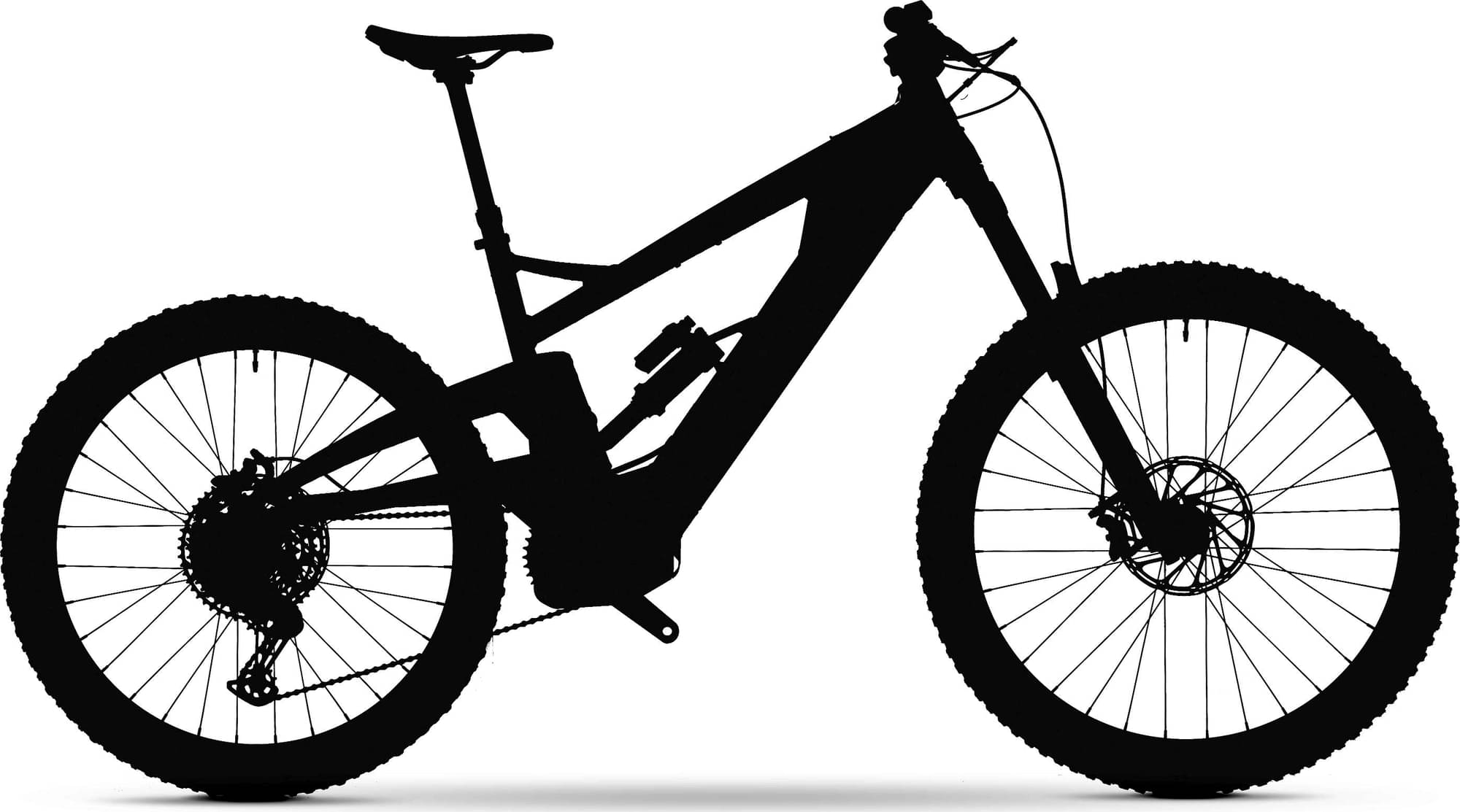

Orange Patriot Factory 2024
2024 E-bike
Estimate price |
12,681$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset XT, Race Face -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Power Tube 750wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 170.
Suspension Fork
Fox Factory 38 Float 170mm 29
Rear Shock
Fox Float X2 Factory 205x65
Drivetrain
Rear Derailleur
Shimano XT 12spd
Shift Levers
Shimano XT 12spd
Cassette
Shimano XT 10-51T 12spd
Crank
Race Face Aeffect R E-MTB 165mm 34t
Bottom Bracket
Bosch Performance Line CX DU Integrated
Chain
KMC 12spd
Wheels
Rims
Stans Flow Mk4 + Hope Pro 5 (Black) 29 + 27
Tires
Maxxis Minion DHF 2.5 3c EXO+ 29 / DHR II 2.4 3c EXO+ 27.5
Brakes
Brakes
Shimano XT Trail 203/203
Cockpit
Stem
Burgtec Enduro Black 42.5mm
Handlebar
Renthal FatBar M35 800mm
Grips
Strange Grappler Lock-On
Headset
FPD 44mm / 56mm zerostack
Seat
Saddle
SDG Strange Bel Air III
Seatpost
Fox Factory Transfer 150/175mm Drop
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 750wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.455 mm | 1.392 mm | 1.362 mm | 1.328 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 808 mm | 828 mm | 851 mm | 873 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 140 mm | 140 mm | 138 mm | 141 mm |
| Stack | 646 mm | 646 mm | 655 mm | 664 mm |
| Reach | 444 mm | 464 mm | 481 mm | 500 mm |
| Top Tube Length | 605 mm | 625 mm | 645 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1256 mm | 1276 mm | 1299 mm | 1321 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 712 mm | 737 mm | 751 mm | 766 mm |
| Rear Travel | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Patriot Factory is part of the Orange E Patriot model. 2 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
The most economical model, the Orange Patriot LE 2024 has a starting price of 10060$. Orange Patriot Factory 2024 on the other hand is the most expensive at 11542$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Orange Patriot Factory price was 11542$. In conclusion, this e-bike price is 141.21% more expensive than the price of the average Enduro e-bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox Float X2 Factory 205×65 rear shock model, which has a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Patriot Factory are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orange Patriot Factory is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Orange Patriot Factory e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Patriot Factory. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
